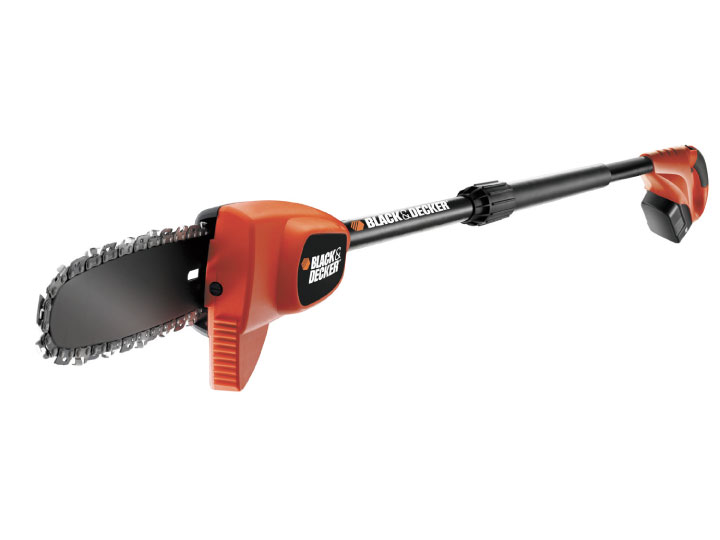

FOARFECA DE GRADINA BLACK+DECKER GPC1800 Type H1
[GPC1800 Type H1]
FOARFECA DE GRADINA BLACK+DECKER GPC1800 Type H1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA BLACK+DECKER GPC1800 Type H1
Click pentru a mari
FOARFECA DE GRADINA BLACK+DECKER GPC1800 Type H1
Click pentru a mari

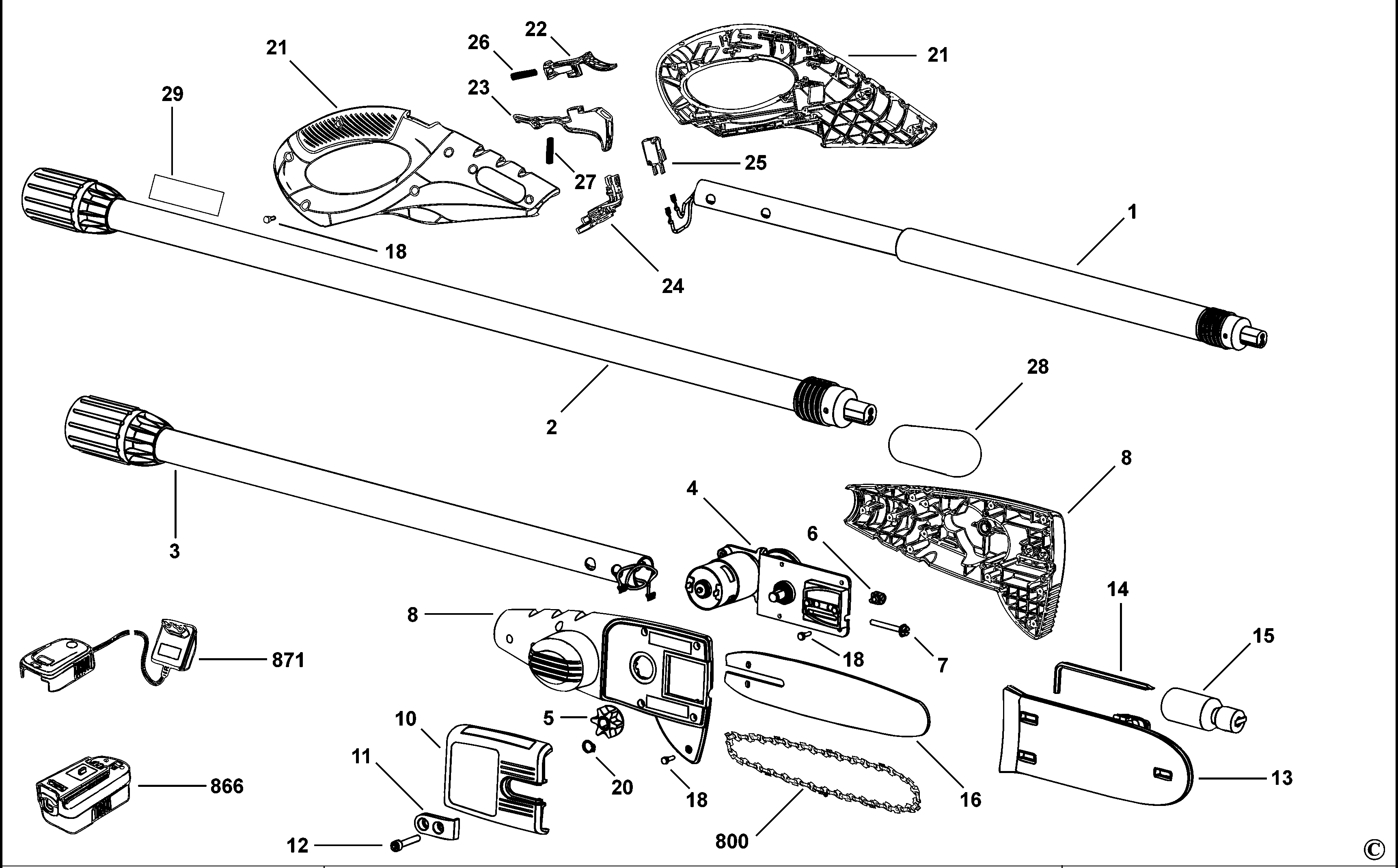

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 POLE PIECE SA (625083-01) 12861 RON
2 1 1 POLE PIECE SA (622892-01) 14315 RON
2 1 1 MIDDLE EXT. POLE (622892-00) 15993 RON
3 1 1 POLE PIECE SA (622891-00) 10512 RON
4 1 1 MOTOR & GEARCASE (622902-00) 34336 RON
5 1 1 SPROCKET (N597159) 114 RON
5 1 1 SPROCKET (622895-00) 1452 RON
6 1 1 CLAMP (623963-00) 105 RON
7 1 1 SCREW (623964-00) 558 RON
8 1 1 5145633-01 - Indisponibil
10 1 1 COVER (622907-00) 893 RON
10 1 1 COVER (90526832-01) 944 RON
11 1 1 CLAMP (N597362) 114 RON
11 1 1 CLAMP (623967-00) 105 RON
12 1 1 SCREW (N629425) 588 RON
12 1 2 SCREW (624334-00) 558 RON
13 1 1 GUARD SA (624732-00) 2795 RON
14 1 1 HEX KEY 5 MM (624736-00) 558 RON
15 1 1 CONTAINER (624735-00) 1452 RON
16 1 1 BAR CHAIN (623381-00) 12861 RON
18 1 15 Screw M3.5X16 T15 (330019-03) 558 RON
20 1 1 LOCKING RING (624521-00) 558 RON
21 1 1 CLAMSHELL SET (5145058-01) 5591 RON
22 1 1 LOCK BUTTON (244695-01) 781 RON
23 1 1 TRIGGER (624810-01) 781 RON
24 1 1 TERMINAL SA (5104139-00) 781 RON
24 1 1 N925409 - Indisponibil
25 1 1 SWITCH (5103536-00) 3018 RON
26 1 1 SPRING (5104138-00) 558 RON
27 1 1 SPRING (5104136-00) 558 RON
28 1 1 LABEL (5145066-00) 893 RON
29 1 1 WARNING LABEL (626981-00) 781 RON
800 1 1 CHAIN (N679612) 9012 RON
800 1 1 A6158 - Indisponibil
866 1 1 BATTERY 18V - 1.7AH (S/FIT) (5100385-57) 39145 RON
866 1 1 BATTERY 18V - 1.7AH (5100385-64) 39145 RON
866 1 1 BATTERY 18v S/Fit 1.5Ah (5103553-00) 45297 RON
871 1 1 90613804 - Indisponibil
871 1 1 CHARGER 18V GB (5101182-08) 11519 RON
