FOARFECA DE GRADINA BLACK+DECKER BCPP18D1 Type 1
[BCPP18D1 Type 1]
FOARFECA DE GRADINA BLACK+DECKER BCPP18D1 Type 1
Click pentru a mari
Imagini suplimentare
FOARFECA DE GRADINA BLACK+DECKER BCPP18D1 Type 1
Click pentru a mari
FOARFECA DE GRADINA BLACK+DECKER BCPP18D1 Type 1
Click pentru a mari
FOARFECA DE GRADINA BLACK+DECKER BCPP18D1 Type 1
Click pentru a mari

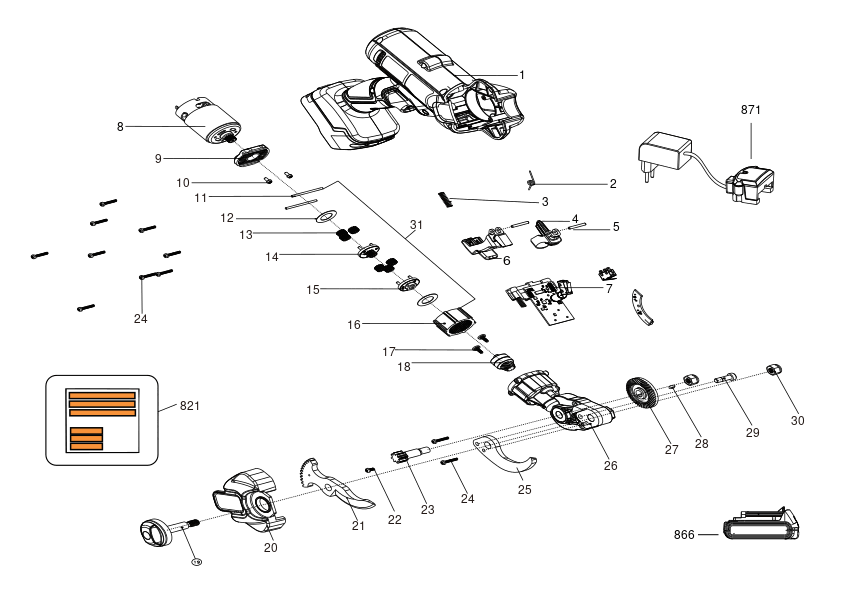

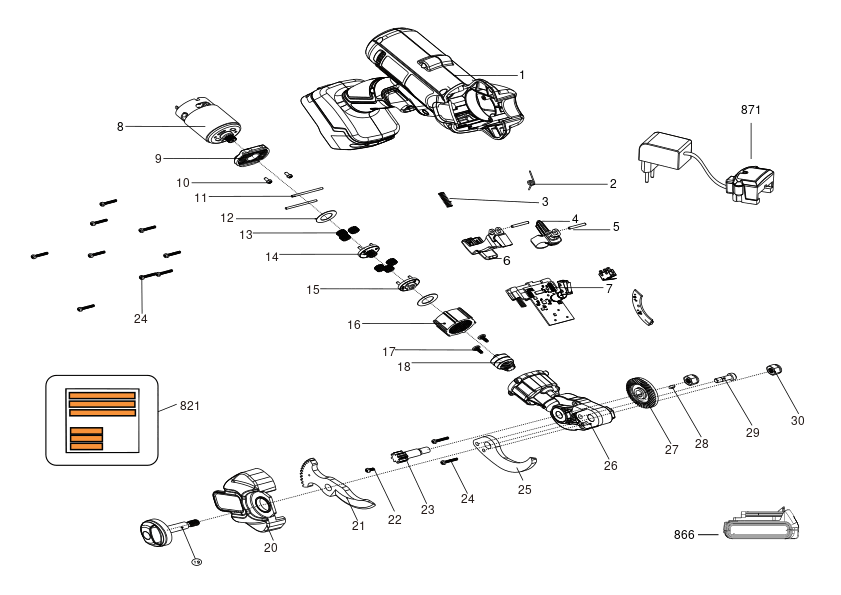

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA071530) 741 RON
2 1 1 SPRING (NA026311) 588 RON
3 1 1 SPRING COMPRESSION (N829448) 588 RON
4 1 1 TRIGGER (N920024) 588 RON
5 1 2 PIVOT SHAFT (NA023381) 588 RON
6 1 1 TRIGGER LOCK-ON (NA086672) 1630 RON
7 1 1 PCB SA (NA049324) 39318 RON
8 1 1 MOTOR & PINION (NA147845) 16689 RON
9 1 1 ADAPTOR (N928971) 588 RON
10 1 2 SCREW (90566914) 588 RON
11 1 2 PIN (N030622) 558 RON
12 1 2 PLATE (N930006) 588 RON
13 1 6 Gear (N928176) 588 RON
14 1 1 CARRIER SA (N928161) 944 RON
15 1 1 CARRIER SA (N936784) 944 RON
16 1 1 Gear (N928174) 1772 RON
17 1 2 SCREW (N118088) 558 RON
18 1 1 BEARING SA (NA152853) 741 RON
19 1 1 NUT (NA071533) 2556 RON
20 1 1 COVER (NA071535) 82 RON
21 1 1 BLADE (NA070678) 18568 RON
22 1 1 SCREW (N756541) 588 RON
23 1 1 PINION (N927926) 3954 RON
24 1 11 SCREW PLASTIC THD FORM (330019-00) 558 RON
25 1 1 BLADE (N600118) 12361 RON
26 1 1 GEAR CASE SA (NA147849) 12361 RON
27 1 1 BEVEL GEAR (N927501) 4827 RON
28 1 1 KEY (NA018769) 588 RON
29 1 1 BOLT (NA070528) 114 RON
30 1 2 Stop Nut M8 (330021-02) 558 RON
31 1 1 GEAR SA (NA325313) 6688 RON
821 1 1 RATING LABEL (NA140728) 588 RON
866 1 1 BATTERY 18V - 2.0AH - 36WH (N879820) 40734 RON
871 1 1 CHARGER 230V (N517390) 16689 RON
