Top » Piese de schimb » PIESE BLACK & DECKER » BES702 Type 1

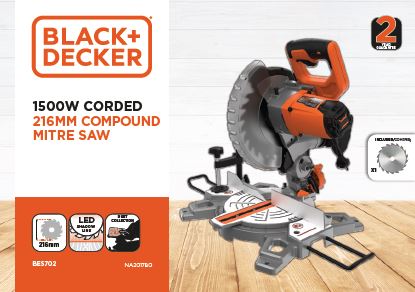

FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES702 Type 1
[BES702 Type 1]
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES702 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES702 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES702 Type 1
Click pentru a mari

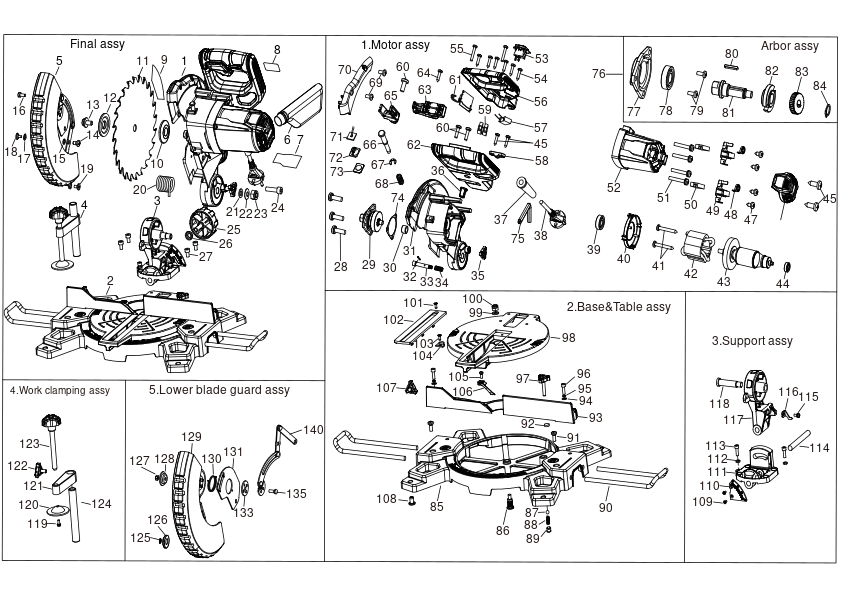

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (5170059-80) 228616 RON
2 1 1 TABLE SA (5170059-81) 60451 RON
3 1 1 SUPPORT SA (5170059-82) 16689 RON
4 1 1 CLAMP SA (5170059-83) 741 RON
5 1 1 GUARD LOWER (5170059-84) 16689 RON
6 1 1 BAG (5170050-85) 4827 RON
7 1 1 LABEL (5170059-85) 82 RON
8 1 1 LABEL (5170050-87) 588 RON
9 1 1 LABEL (5170059-86) 944 RON
10 1 1 FLANGE (5170050-89) 2182 RON
11 1 1 BLADE (5170050-90) 21676 RON
12 1 1 FLANGE (5170050-91) 1933 RON
13 1 1 SCREW (5170059-87) 1772 RON
14 1 1 SCREW (5170059-88) 588 RON
15 1 1 WASHER (5170059-89) 588 RON
16 1 1 SCREW (5170059-90) 588 RON
17 1 1 WASHER (5170050-95) 588 RON
18 1 1 SCREW (5170059-91) 588 RON
19 1 1 SCREW (5170059-92) 588 RON
20 1 1 SPRING (5170059-93) 3268 RON
21 1 1 WASHER (5170059-94) 588 RON
22 1 1 SPRING (5170059-95) 588 RON
23 1 1 NUT (5170059-96) 588 RON
24 1 1 SCREW (5170059-97) 588 RON
25 1 1 KNOB (5170059-98) 2556 RON
26 1 1 WASHER (5170059-99) 588 RON
27 1 4 SCREW (5170060-00) 588 RON
28 1 3 SCREW (5170050-06) 588 RON
29 1 1 PLATE (5170050-07) 16689 RON
30 1 1 BEARING NEEDLE (1004765-90) 1933 RON
31 1 1 GUARD UPPER (5170060-01) 23244 RON
32 1 1 PIN (5170060-02) 588 RON
33 1 1 LOCKING PIN (5170060-03) 114 RON
34 1 1 SPRING (5170060-04) 588 RON
35 1 1 CAP (5170060-05) 668 RON
36 1 1 PROTECTOR (1004763-91) 82 RON
37 1 1 SHEATH (5170060-06) 668 RON
38 1 1 5170060-64 - Indisponibil
39 1 1 BEARING (1004764-16) 2556 RON
40 1 1 BAFFLE (5170050-13) 114 RON
41 1 2 SCREW (1004765-72) 588 RON
42 1 1 STATOR SA (5170060-07) 23244 RON
43 1 1 ARMATURE (5170050-15) 32327 RON
44 1 1 BEARING (5170050-16) 2182 RON
45 1 4 SCREW (1004763-96) 588 RON
46 1 1 CAP (5170050-17) 1772 RON
47 1 4 SCREW (1004764-08) 588 RON
48 1 2 SPRING (5170050-18) 588 RON
49 1 2 HOLDER (5170050-19) 944 RON
50 1 2 BRUSH (5170050-20) 4355 RON
51 1 4 SCREW (1004765-63) 588 RON
52 1 1 MOTOR HOUSING SA (5170050-21) 4827 RON
53 1 1 SWITCH (1004763-98) 2796 RON
54 1 6 SCREW (1004750-26) 668 RON
55 1 2 SCREW (1004750-25) 668 RON
56 1 1 HANDLE UPPER (1004763-86) 6688 RON
57 1 1 CAPACITOR (5170050-22) 944 RON
58 1 1 CLAMP (1004763-95) 588 RON
59 1 1 CONNECTOR (1004763-88) 944 RON
60 1 3 SCREW (1004763-93) 588 RON
61 1 1 PCB (1004763-87) 15469 RON
62 1 1 SWITCH (1004763-90) 15469 RON
63 1 1 SWITCH (5170060-08) 20216 RON
64 1 1 SCREW (5170050-23) 588 RON
65 1 1 COVER (5170050-24) 668 RON
66 1 1 LOCK PIN (5170050-25) 1933 RON
67 1 1 CIRCLIP (1004764-26) 588 RON
68 1 1 SPRING (1004764-25) 588 RON
69 1 2 SCREW (5170050-26) 588 RON
70 1 1 COVER (5170050-27) 82 RON
71 1 1 LAMP (5170050-28) 2182 RON
72 1 1 COVER (5170050-29) 588 RON
73 1 1 COVER (5170050-30) 588 RON
74 1 1 RING (5170050-31) 82 RON
75 1 1 KEY (1004765-29) 1630 RON
76 1 1 ARBOR SA (5170060-09) 16689 RON
77 1 1 COVER (5170050-32) 1772 RON
78 1 1 BEARING (5170050-33) 2796 RON
79 1 2 SCREW (1004765-88) 588 RON
80 1 1 KEY (5170050-34) 588 RON
81 1 1 ARBOR (5170050-35) 5370 RON
82 1 1 PLATE LOCK (5170050-36) 2556 RON
83 1 1 Gear (5170050-37) 4355 RON
84 1 1 CIRCLIP (1004765-82) 588 RON
85 1 1 BASE (5170060-10) 27287 RON
86 1 1 PIN (5170060-11) 668 RON
87 1 1 BALL (5170060-12) 588 RON
88 1 1 SPRING (5170060-13) 588 RON
89 1 1 SCREW (5170060-14) 588 RON
90 1 2 POLE PIECE (5170060-15) 3268 RON
91 1 2 SCREW (5170060-16) 588 RON
92 1 1 PAD (5170060-17) 588 RON
93 1 1 FENCE (5170060-18) 9012 RON
94 1 2 WASHER (5170060-19) 588 RON
95 1 2 WASHER (5170060-20) 588 RON
96 1 2 SCREW (5170060-21) 588 RON
97 1 1 KNOB (5170060-22) 82 RON
98 1 1 TABLE TURN (5170060-23) 18568 RON
99 1 1 WASHER (5170060-24) 588 RON
100 1 1 NUT (5170060-25) 588 RON
101 1 1 SCREW (5170060-26) 588 RON
102 1 1 INSERT (5170060-27) 944 RON
103 1 1 SCREW (5170060-28) 588 RON
104 1 1 POINTER (5170060-29) 588 RON
105 1 1 SCREW (5170060-30) 588 RON
106 1 1 TIP (5170060-31) 588 RON
107 1 1 KNOB (5170060-32) 668 RON
108 1 4 FOOT (5170050-38) 588 RON
109 1 2 SCREW (5170060-33) 588 RON
110 1 1 PLATE (5170060-34) 944 RON
111 1 1 BLOCK (5170060-35) 4355 RON
112 1 2 NUT (5170060-36) 588 RON
113 1 2 SCREW (5170060-37) 588 RON
114 1 1 PIVOT (5170060-38) 944 RON
115 1 1 SCREW (5170060-39) 588 RON
116 1 1 POINTER (5170060-40) 588 RON
117 1 1 BLOCK (5170060-41) 741 RON
118 1 1 SHAFT (5170060-42) 1772 RON
119 1 1 SCREW (5170060-43) 588 RON
120 1 1 PLATE (5170060-44) 82 RON
121 1 1 ARM (5170060-45) 2182 RON
122 1 1 KNOB (5170060-46) 944 RON
123 1 1 KNOB (5170060-47) 2182 RON
124 1 1 POLE PIECE (5170060-48) 3268 RON
125 1 2 WASHER (5170060-49) 588 RON
126 1 1 WHEEL (5170060-50) 82 RON
127 1 1 LOCK NUT (5170060-51) 588 RON
128 1 1 PLATE (5170060-52) 1772 RON
129 1 1 GUARD LOWER (5170060-53) 741 RON
130 1 1 SPRING (5170060-54) 668 RON
131 1 1 SUPPORT (5170060-55) 2182 RON
133 1 1 PLATE (5170060-57) 82 RON
135 1 1 BOLT (5170060-59) 588 RON
140 1 1 CORD (5170065-78) 4827 RON
