Top » Piese de schimb » PIESE BLACK & DECKER » BES701 Type 1

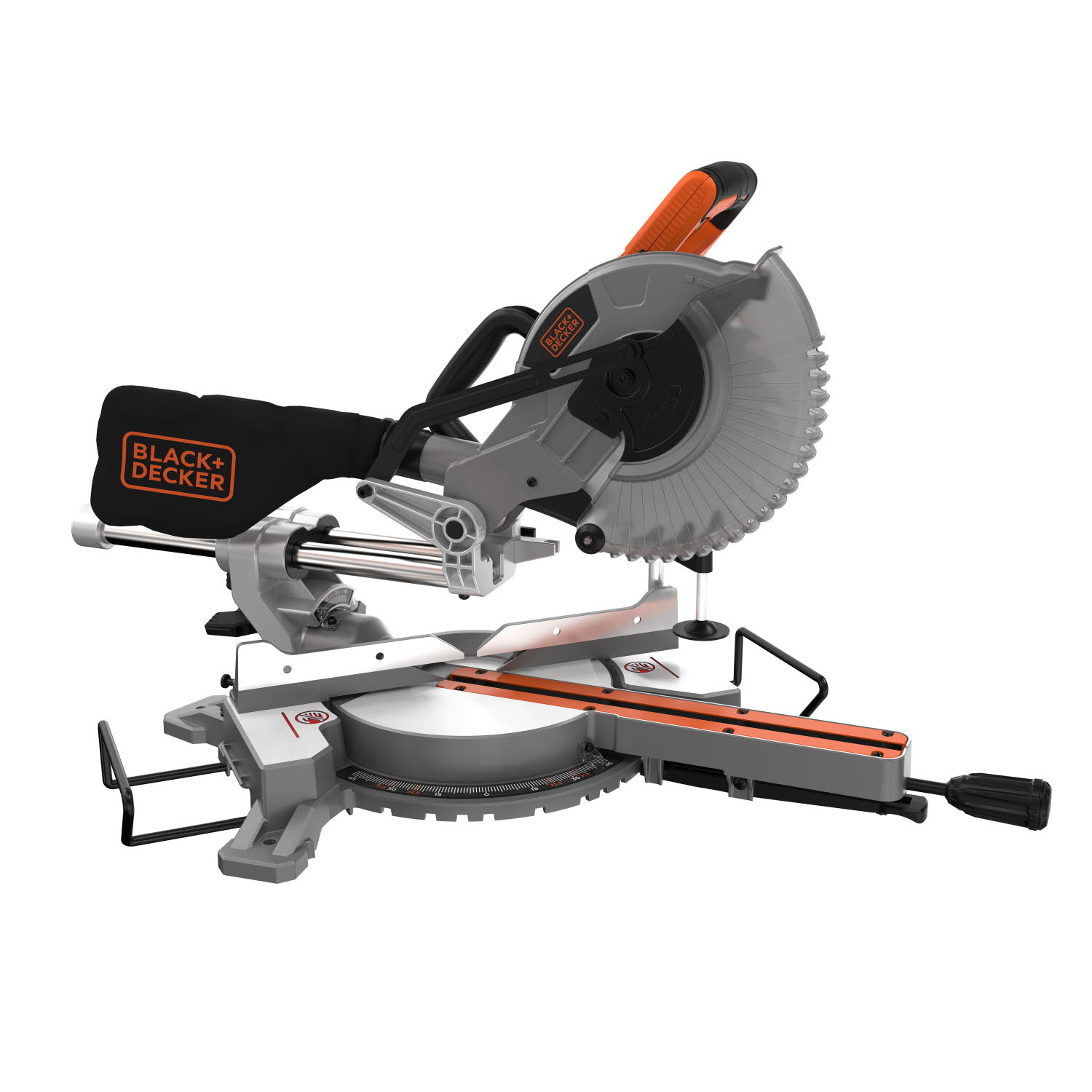

FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES701 Type 1
[BES701 Type 1]
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES701 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES701 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES701 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES701 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES701 Type 1
Click pentru a mari

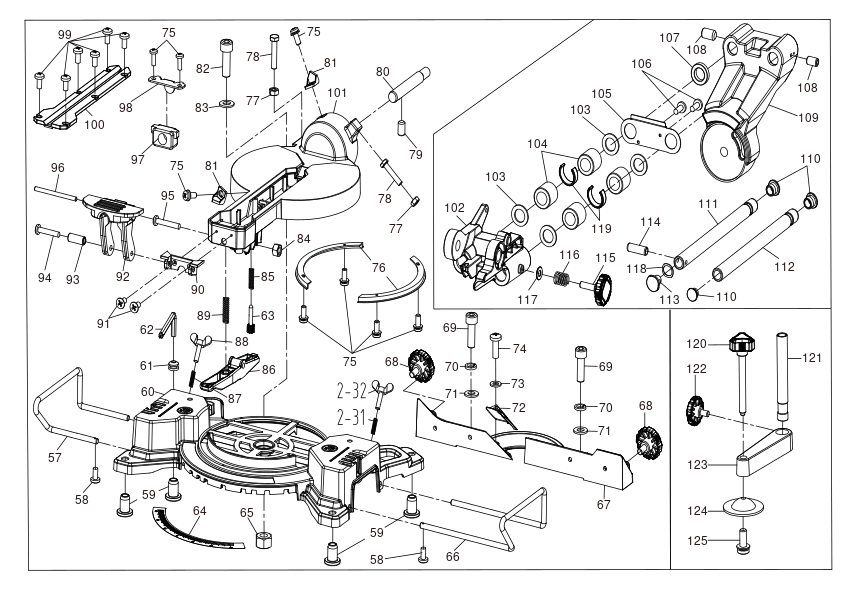

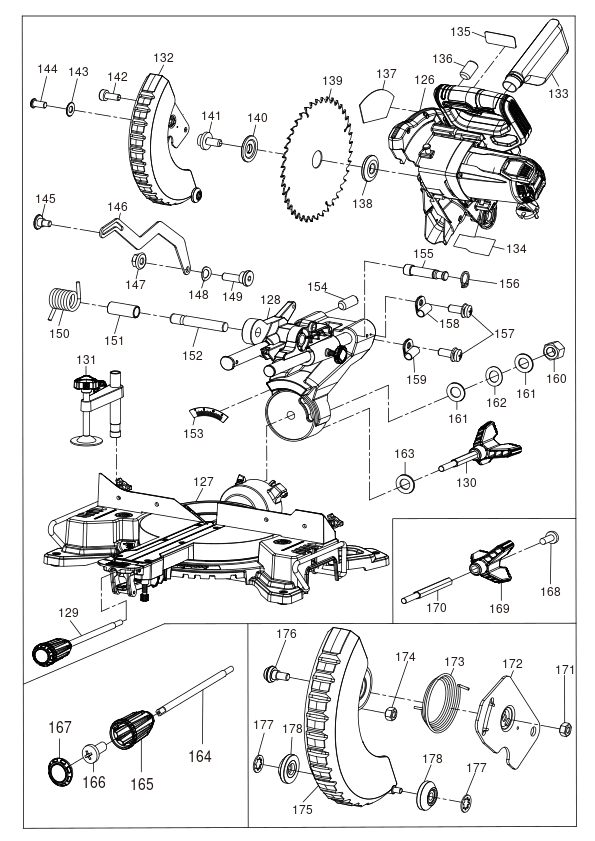

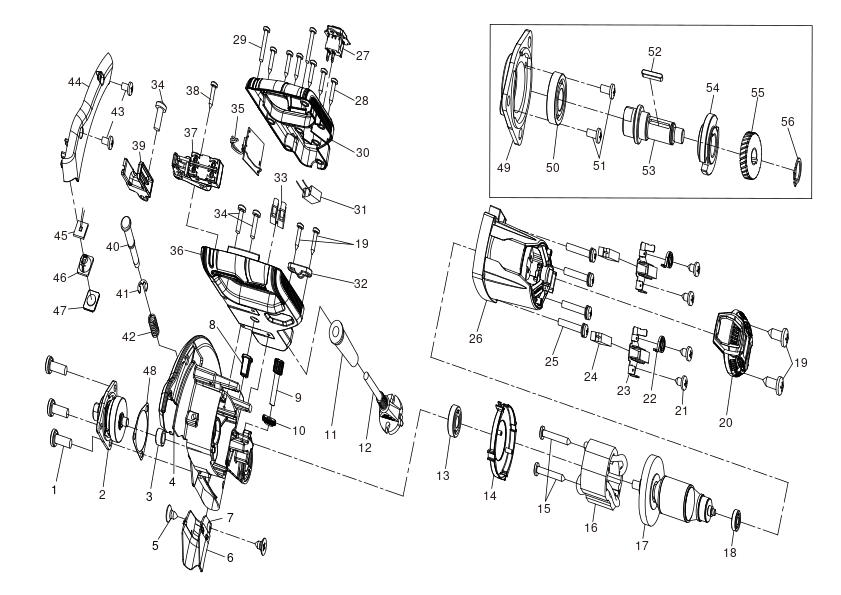

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 3 SCREW (5170050-06) 588 RON
2 1 1 PLATE (5170050-07) 16689 RON
3 1 1 BEARING NEEDLE (1004765-90) 1933 RON
4 1 1 GUARD (5170050-08) 39318 RON
5 1 2 SCREW (5170050-09) 588 RON
6 1 1 DEFLECTOR (5170050-10) 944 RON
7 1 1 CHUTE (5170050-11) 668 RON
8 1 1 PROTECTOR (1004763-91) 82 RON
9 1 1 ADJUSTER DEPTH (1004764-21) 668 RON
10 1 1 NUT (1004764-20) 588 RON
11 1 1 CORD PROTECTOR (1004763-94) 588 RON
12 1 1 CORD (5170050-12) 741 RON
13 1 1 BEARING (1004765-74) 1933 RON
14 1 1 BAFFLE (5170050-13) 114 RON
15 1 2 SCREW (1004765-72) 588 RON
16 1 1 FIELD (5170050-14) 30769 RON
17 1 1 ARMATURE (5170050-15) 32327 RON
18 1 1 BEARING (5170050-16) 2182 RON
19 1 2 SCREW (1004763-96) 588 RON
20 1 1 CAP (5170050-17) 1772 RON
21 1 4 SCREW (1004764-08) 588 RON
22 1 1 SPRING (5170050-18) 588 RON
23 1 2 HOLDER (5170050-19) 944 RON
24 1 2 BRUSH (5170050-20) 4355 RON
25 1 4 SCREW (1004765-63) 588 RON
26 1 1 MOTOR HOUSING SA (5170050-21) 4827 RON
27 1 1 SWITCH (1004763-98) 2796 RON
28 1 6 SCREW (1004750-26) 668 RON
29 1 2 SCREW (1004750-25) 668 RON
30 1 1 HANDLE UPPER (1004763-86) 6688 RON
31 1 1 CAPACITOR (5170050-22) 944 RON
32 1 1 CLAMP (1004763-95) 588 RON
33 1 1 CONNECTOR (1004763-88) 944 RON
34 1 3 SCREW (1004763-93) 588 RON
35 1 1 PCB (1004763-87) 15469 RON
36 1 1 HANDLE (1004763-92) 6688 RON
37 1 1 SWITCH (1004763-90) 15469 RON
38 1 1 SCREW (5170050-23) 588 RON
39 1 1 COVER (5170050-24) 668 RON
40 1 1 LOCK PIN (5170050-25) 1933 RON
41 1 1 CIRCLIP (1004764-26) 588 RON
42 1 1 SPRING (1004764-25) 588 RON
43 1 2 SCREW (5170050-26) 588 RON
44 1 1 COVER (5170050-27) 82 RON
45 1 1 LAMP (5170050-28) 2182 RON
46 1 1 COVER (5170050-29) 588 RON
47 1 1 COVER (5170050-30) 588 RON
48 1 1 RING (5170050-31) 82 RON
49 1 1 COVER (5170050-32) 1772 RON
50 1 1 BEARING (5170050-33) 2796 RON
51 1 2 SCREW (1004765-88) 588 RON
52 1 1 KEY (5170050-34) 588 RON
53 1 1 ARBOR (5170050-35) 5370 RON
54 1 1 PLATE LOCK (5170050-36) 2556 RON
55 1 1 Gear (5170050-37) 4355 RON
56 1 1 CIRCLIP (1004765-82) 588 RON
57 1 1 RAIL LH (1004765-02) 4827 RON
58 1 2 SCREW (1004764-55) 588 RON
59 1 4 FOOT (5170050-38) 588 RON
60 1 1 BASE (5170050-39) 51127 RON
61 1 1 HOLDER (1004765-30) 588 RON
62 1 1 KEY (1004765-29) 1630 RON
63 1 1 ADJUSTER DEPTH (1004764-21) 668 RON
64 1 1 LABEL (5170050-40) 588 RON
65 1 1 LOCK NUT (1004765-48) 588 RON
66 1 1 RAIL RH (1004764-87) 4827 RON
67 1 1 FENCE (5170050-41) 20216 RON
68 1 2 KNOB (1004765-43) 82 RON
69 1 2 SCREW (5170050-42) 588 RON
70 1 2 WASHER (1004765-38) 588 RON
71 1 2 WASHER (1004765-37) 588 RON
72 1 1 GUARD (5170050-43) 588 RON
73 1 1 WASHER (5170050-44) 588 RON
74 1 1 SCREW (5170050-45) 588 RON
75 1 4 SCREW (1004764-97) 588 RON
76 1 2 SLEEVE (5170050-46) 82 RON
77 1 2 NUT (5170050-47) 588 RON
78 1 2 SCREW (5170050-48) 588 RON
79 1 1 SCREW (1004764-68) 588 RON
80 1 1 SHAFT (5170050-49) 3268 RON
81 1 2 INDICATOR (1004765-13) 668 RON
82 1 1 SCREW (5170050-50) 588 RON
83 1 2 WASHER (1004765-15) 944 RON
84 1 1 LOCK NUT (1004765-48) 588 RON
85 1 1 SPRING (1004765-26) 588 RON
86 1 1 LEVER (5170050-51) 1318 RON
87 1 1 SPRING (1004765-27) 588 RON
88 1 2 SCREW (5170050-52) 588 RON
89 1 1 SPRING (1004765-26) 588 RON
90 1 1 BASE (5170050-53) 668 RON
91 1 2 SCREW (5170050-54) 588 RON
92 1 1 LOCK BUTTON (5170050-55) 1318 RON
93 1 1 SLEEVE (5170050-56) 588 RON
94 1 1 SCREW (5170050-57) 588 RON
95 1 1 SCREW (5170050-58) 588 RON
96 1 1 PIN (5170050-59) 668 RON
97 1 1 BIT (1004765-17) 82 RON
98 1 1 PLATE LOCK (1004765-16) 82 RON
99 1 2 SCREW (1004764-17) 588 RON
100 1 1 PLATE (5170050-60) 1772 RON
101 1 1 TABLE (5170050-61) 42426 RON
102 1 1 BRACKET (5170050-62) 21676 RON
103 1 4 WASHER (5170050-63) 944 RON
104 1 4 BEARING (5170050-64) 5370 RON
105 1 1 COVER (5170050-65) 1933 RON
106 1 2 SCREW (5170050-66) 588 RON
107 1 1 RING (5170050-67) 588 RON
108 1 1 SCREW (1004764-68) 588 RON
109 1 1 ARM (5170050-68) 30769 RON
110 1 1 COVER (5170050-69) 588 RON
111 1 1 GUIDE ROD (5170050-70) 9012 RON
112 1 1 GUIDE ROD (5170050-71) 9012 RON
113 1 1 CAP (5170050-72) 114 RON
114 1 1 PIN (5170050-73) 588 RON
115 1 1 LOCK KNOB (1004764-76) 668 RON
116 1 1 SPRING (1004764-75) 588 RON
117 1 1 WASHER (1004764-34) 588 RON
118 1 1 WASHER (5170050-74) 588 RON
119 1 2 SPACER (5170050-75) 588 RON
120 1 1 KNOB (1004765-42) 2182 RON
121 1 1 POLE PIECE (5170050-76) 3954 RON
122 1 1 KNOB (1004765-43) 82 RON
123 1 1 ARM LINK (1004765-44) 1772 RON
124 1 1 PLATE (1004765-46) 668 RON
125 1 1 SCREW (5170050-77) 588 RON
126 1 1 MOTOR (5170050-78) 236862 RON
127 1 1 TABLE SA (5170050-79) 176482 RON
128 1 1 ARM (5170050-80) 104961 RON
129 1 1 HANDLE (5170050-81) 4827 RON
130 1 1 HANDLE (5170050-82) 5370 RON
131 1 1 CLAMP SA (5170050-83) 12361 RON
132 1 1 GUARD (5170050-84) 15469 RON
133 1 1 BAG (5170050-85) 4827 RON
134 1 1 LABEL (5170050-86) 588 RON
135 1 1 LABEL (5170050-87) 588 RON
136 1 1 SCREW (1004764-68) 588 RON
137 1 1 LABEL (5170050-88) 588 RON
138 1 1 FLANGE (5170050-89) 2182 RON
139 1 1 BLADE (5170050-90) 21676 RON
140 1 1 FLANGE (5170050-91) 1933 RON
141 1 1 SCREW (1004764-50) 1630 RON
142 1 1 SCREW (1004764-61) 588 RON
143 1 1 WASHER (5170050-92) 588 RON
144 1 1 SCREW (5170050-93) 588 RON
145 1 1 SCREW (1004764-66) 588 RON
146 1 1 LINKAGE SA (5170050-94) 3268 RON
147 1 1 LOCK NUT (1004764-52) 588 RON
148 1 1 WASHER (5170050-95) 588 RON
149 1 1 SCREW (1004764-64) 3954 RON
150 1 1 SPRING (5170050-96) 3954 RON
151 1 1 SLEEVE (1004766-08) 588 RON
152 1 1 SHAFT (5170050-97) 3268 RON
153 1 1 SCALE (5170050-98) 1933 RON
154 1 1 SCREW (1004764-79) 82 RON
155 1 1 LOCK PIN (1004764-81) 1933 RON
156 1 1 CIRCLIP (1004764-80) 588 RON
157 1 2 SCREW (1004764-97) 588 RON
158 1 1 CLAMP (1004764-83) 82 RON
159 1 1 CLIP CABLE (1004764-98) 82 RON
160 1 1 NUT (1004765-04) 668 RON
161 1 2 WASHER (1004765-05) 588 RON
162 1 1 WASHER (1004765-06) 588 RON
163 1 1 WASHER (1004764-94) 588 RON
164 1 1 ROD (5170050-99) 3268 RON
165 1 1 HANDLE (1004765-22) 1933 RON
166 1 1 SCREW (5170051-00) 588 RON
167 1 1 COVER (1004765-25) 668 RON
168 1 1 SCREW (5170051-01) 588 RON
169 1 1 LOCK HANDLE (1004764-96) 2796 RON
170 1 1 BOLT (5170051-02) 3268 RON
171 1 1 LOCK NUT (1004764-52) 588 RON
172 1 1 BLADE SUPPORT SA (5170051-03) 2796 RON
173 1 1 SPRING (1004764-54) 944 RON
174 1 1 NUT (5170051-04) 588 RON
175 1 1 GUARD (5170051-05) 741 RON
176 1 1 SCREW (1004764-60) 944 RON
177 1 1 WASHER (1004764-59) 588 RON
178 1 1 WHEEL (1004764-58) 82 RON
