Top » Piese de schimb » PIESE BLACK & DECKER » BES700 Type 1

FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES700 Type 1
[BES700 Type 1]
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES700 Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES700 Type 1
Click pentru a mari
FIERASTRAU VERTICAL CU MASA BLACK+DECKER BES700 Type 1
Click pentru a mari

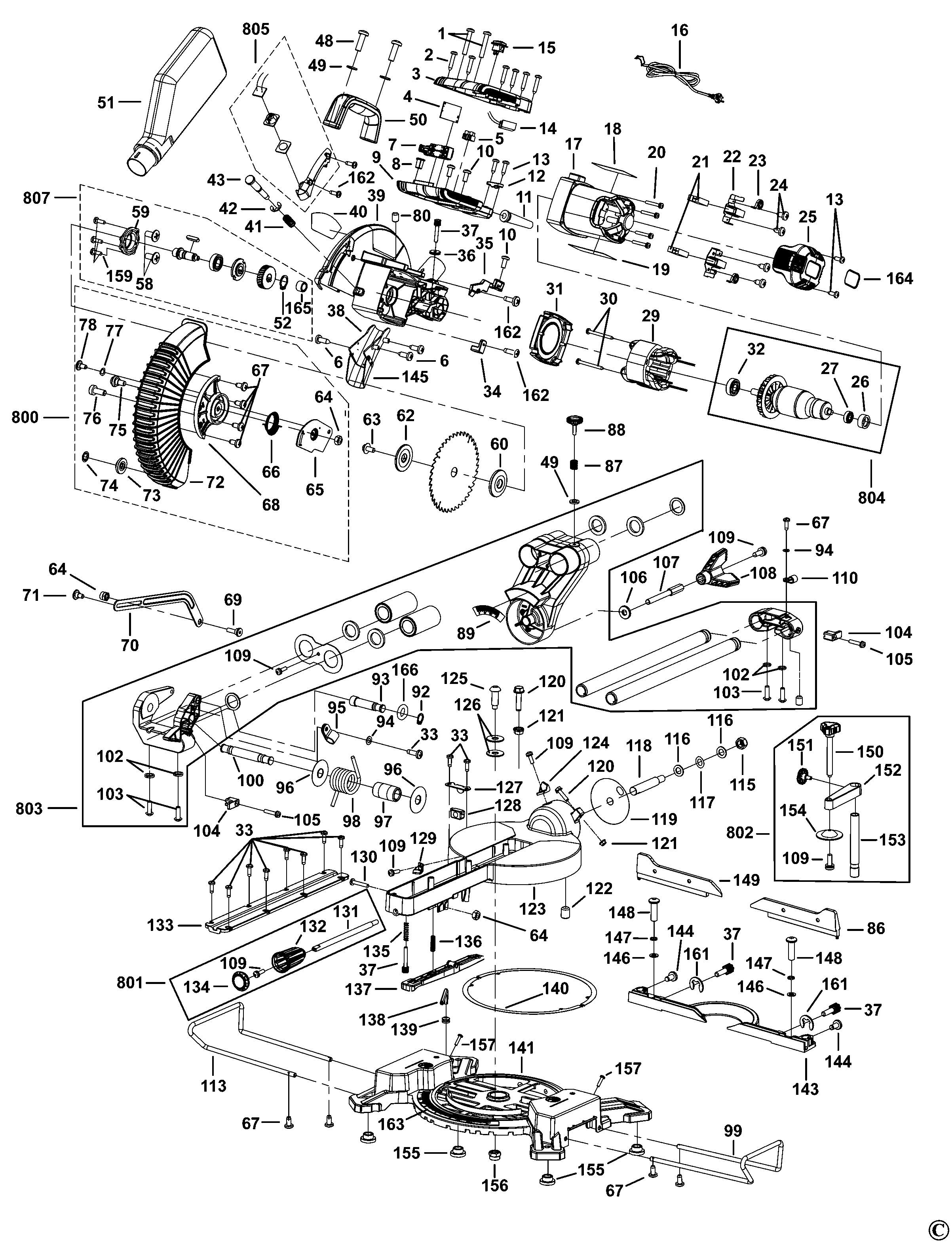

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 SCREW (1004750-25) 668 RON
2 1 6 SCREW (1004750-26) 668 RON
3 1 1 HANDLE UPPER (1004763-86) 6688 RON
4 1 1 PCB (1004763-87) 15469 RON
5 1 1 CONNECTOR (1004763-88) 944 RON
6 1 3 SCREW (1004763-89) 588 RON
7 1 1 SWITCH (1004763-90) 15469 RON
8 1 1 PROTECTOR (1004763-91) 82 RON
9 1 1 HANDLE (1004763-92) 6688 RON
10 1 3 SCREW (1004763-93) 588 RON
11 1 1 CORD PROTECTOR (1004763-94) 588 RON
12 1 1 CLAMP (1004763-95) 588 RON
13 1 4 SCREW (1004763-96) 588 RON
14 1 1 CAPACITOR (1004763-97) 944 RON
15 1 1 SWITCH (1004763-98) 2796 RON
16 1 1 CORDSET (1004775-53) 9012 RON
17 1 1 FIELDCASE (1004765-62) 6688 RON
18 1 1 RATING PLATE (N632696) 82 RON
19 1 1 BRAND LABEL (N689094) 82 RON
20 1 4 SCREW (1004765-63) 588 RON
21 1 1 BRUSH PAIR (1004765-64) 5370 RON
22 1 1 BRUSH HOLDER (1004765-65) 944 RON
23 1 2 SPRING (1004765-66) 944 RON
24 1 4 SCREW (1004764-08) 588 RON
25 1 1 END CAP (1004765-67) 1630 RON
26 1 1 COVER BEARING (1004765-68) 588 RON
27 1 1 BEARING (1004765-69) 1630 RON
29 1 1 FIELD SA (1004765-71) 20216 RON
30 1 2 SCREW (1004765-72) 588 RON
31 1 1 BAFFLE (1004765-73) 82 RON
32 1 1 BEARING (1004765-74) 1933 RON
33 1 11 SCREW (1004764-17) 588 RON
34 1 1 BUFFER (1004764-18) 588 RON
35 1 1 COVER (1004765-75) 82 RON
36 1 1 NUT (1004764-20) 588 RON
37 1 1 ADJUSTER DEPTH (1004764-21) 668 RON
38 1 1 DUST PORT (1004765-76) 114 RON
39 1 1 GUARD UPPER (1004765-77) 30769 RON
40 1 1 BRAND LABEL (N632697) 944 RON
41 1 1 SPRING (1004764-25) 588 RON
42 1 1 CIRCLIP (1004764-26) 588 RON
43 1 1 LOCK PIN (1004765-78) 1772 RON
48 1 2 SCREW (1004764-33) 588 RON
49 1 3 WASHER (1004764-34) 588 RON
50 1 1 HANDLE (1004764-35) 3268 RON
51 1 1 DUSTBAG (1004764-36) 4827 RON
52 1 1 CIRCLIP (1004765-82) 588 RON
58 1 2 SCREW (1004765-88) 588 RON
60 1 1 INNER FLANGE (1004765-91) 1630 RON
62 1 1 OUTER FLANGE (1004765-93) 1630 RON
63 1 1 SCREW (1004764-50) 1630 RON
64 1 3 LOCK NUT (1004764-52) 588 RON
65 1 1 SUPPORT PLATE (1004764-53) 2796 RON
66 1 1 SPRING (1004764-54) 944 RON
67 1 1 SCREW (1004764-55) 588 RON
68 1 1 BRACKET (1004764-56) 4827 RON
70 1 1 LINK (1004765-96) 3268 RON
71 1 1 SCREW (1004764-66) 588 RON
72 1 1 GUARD LOWER (1004765-95) 12361 RON
73 1 1 WHEEL (1004764-58) 82 RON
74 1 1 WASHER (1004764-59) 588 RON
75 1 1 SCREW (1004764-60) 944 RON
76 1 1 SCREW (1004764-61) 588 RON
77 1 1 WASHER (1004764-62) 588 RON
78 1 1 SCREW (1004764-63) 588 RON
80 1 1 SCREW (1004765-97) 588 RON
86 1 1 FENCE RH (1004764-74) 3954 RON
87 1 1 SPRING (1004764-75) 588 RON
88 1 1 LOCK KNOB (1004764-76) 668 RON
89 1 1 BEVEL SCALE (N691131) 944 RON
92 1 1 CIRCLIP (1004766-05) 588 RON
93 1 1 LOCK PIN (1004766-06) 1933 RON
94 1 1 WASHER (1004764-82) 588 RON
95 1 1 CLAMP (1004764-83) 82 RON
96 1 1 WASHER (1004766-07) 82 RON
97 1 1 SLEEVE (1004766-08) 588 RON
98 1 1 SPRING TORSION (1004766-09) 13697 RON
99 1 1 RAIL RH (1004764-87) 4827 RON
100 1 1 SHAFT (1004766-10) 2796 RON
102 1 4 SPRING (1004764-90) 588 RON
103 1 1 SCREW (1004764-91) 588 RON
104 1 2 CORD (1004764-92) 588 RON
105 1 1 SCREW (1004764-93) 588 RON
106 1 1 WASHER (1004764-94) 588 RON
107 1 1 BOLT (1004764-95) 2182 RON
108 1 1 LOCK HANDLE (1004764-96) 2796 RON
109 1 6 SCREW (1004764-97) 588 RON
110 1 1 CLIP CABLE (1004764-98) 82 RON
113 1 1 RAIL LH (1004765-02) 4827 RON
115 1 1 NUT (1004765-04) 668 RON
116 1 2 WASHER (1004765-05) 588 RON
117 1 1 WASHER (1004765-06) 588 RON
118 1 1 SHAFT (1004766-14) 2796 RON
119 1 1 SUPPORT PLATE (1004766-15) 114 RON
120 1 1 BOLT (1004765-09) 588 RON
121 1 1 NUT (1004765-10) 588 RON
122 1 1 NUT (1004765-11) 588 RON
123 1 1 TABLE TURN (1004765-12) 48037 RON
124 1 1 INDICATOR (1004765-13) 668 RON
125 1 1 BOLT (1004765-14) 668 RON
126 1 2 WASHER (1004765-15) 944 RON
127 1 1 PLATE LOCK (1004765-16) 82 RON
128 1 1 BIT (1004765-17) 82 RON
129 1 1 INDICATOR (1004765-18) 668 RON
130 1 1 SCREW (1004765-19) 588 RON
131 1 1 ROD (1004765-21) 4355 RON
132 1 1 HANDLE (1004765-22) 1933 RON
133 1 1 PLATE (1004765-24) 2556 RON
134 1 1 COVER (1004765-25) 668 RON
135 1 1 SPRING (1004765-26) 588 RON
136 1 1 SPRING (1004765-27) 588 RON
137 1 1 LEVER (1004765-28) 2796 RON
138 1 1 KEY (1004765-29) 1630 RON
139 1 1 HOLDER (1004765-30) 588 RON
140 1 1 GUIDE (1004765-31) 1772 RON
141 1 1 BASE (1004765-32) 49114 RON
143 1 1 FENCE (1004765-34) 15469 RON
144 1 1 SCREW (1004765-35) 588 RON
145 1 1 CHUTE (1004765-36) 114 RON
146 1 4 WASHER (1004765-37) 588 RON
147 1 1 WASHER (1004765-38) 588 RON
148 1 4 SCREW (1004765-39) 668 RON
149 1 1 FENCE LH (1004765-40) 3954 RON
150 1 1 KNOB (1004765-42) 2182 RON
151 1 1 KNOB (1004765-43) 82 RON
152 1 1 ARM LINK (1004765-44) 1772 RON
153 1 1 POLE PIECE (1004765-45) 3268 RON
154 1 1 PLATE (1004765-46) 668 RON
155 1 4 FEET (1004765-47) 588 RON
156 1 1 LOCK NUT (1004765-48) 588 RON
157 1 2 SCREW (1004765-49) 588 RON
159 1 3 SCREW (1004765-51) 588 RON
161 1 1 CIRCLIP (1004765-53) 588 RON
162 1 1 SCREW (1004765-54) 588 RON
163 1 1 SCALE (N691130) 82 RON
164 1 1 BRAND LABEL (N689096) 1933 RON
165 1 1 BEARING NEEDLE (1004765-90) 1933 RON
166 1 1 O RING (1004766-16) 588 RON
800 1 1 LOWER GUARD SA (1004765-94) 30769 RON
801 1 1 LOCK (1004765-20) 5370 RON
802 1 1 CLAMP SA (1004765-41) 6688 RON
803 1 1 RAIL SA (1004766-17) 78485 RON
804 1 1 ARMATURE SA (1004766-18) 32327 RON
805 1 1 LED KIT (1004765-79) 5370 RON
807 1 1 SPINDLE SA (1004782-59) 13697 RON
