FIERASTRAU PENDULAR BLACK+DECKER KFBES500 Type 1
[KFBES500 Type 1]

Click pentru a mari

Imagini suplimentare

Click pentru a mari

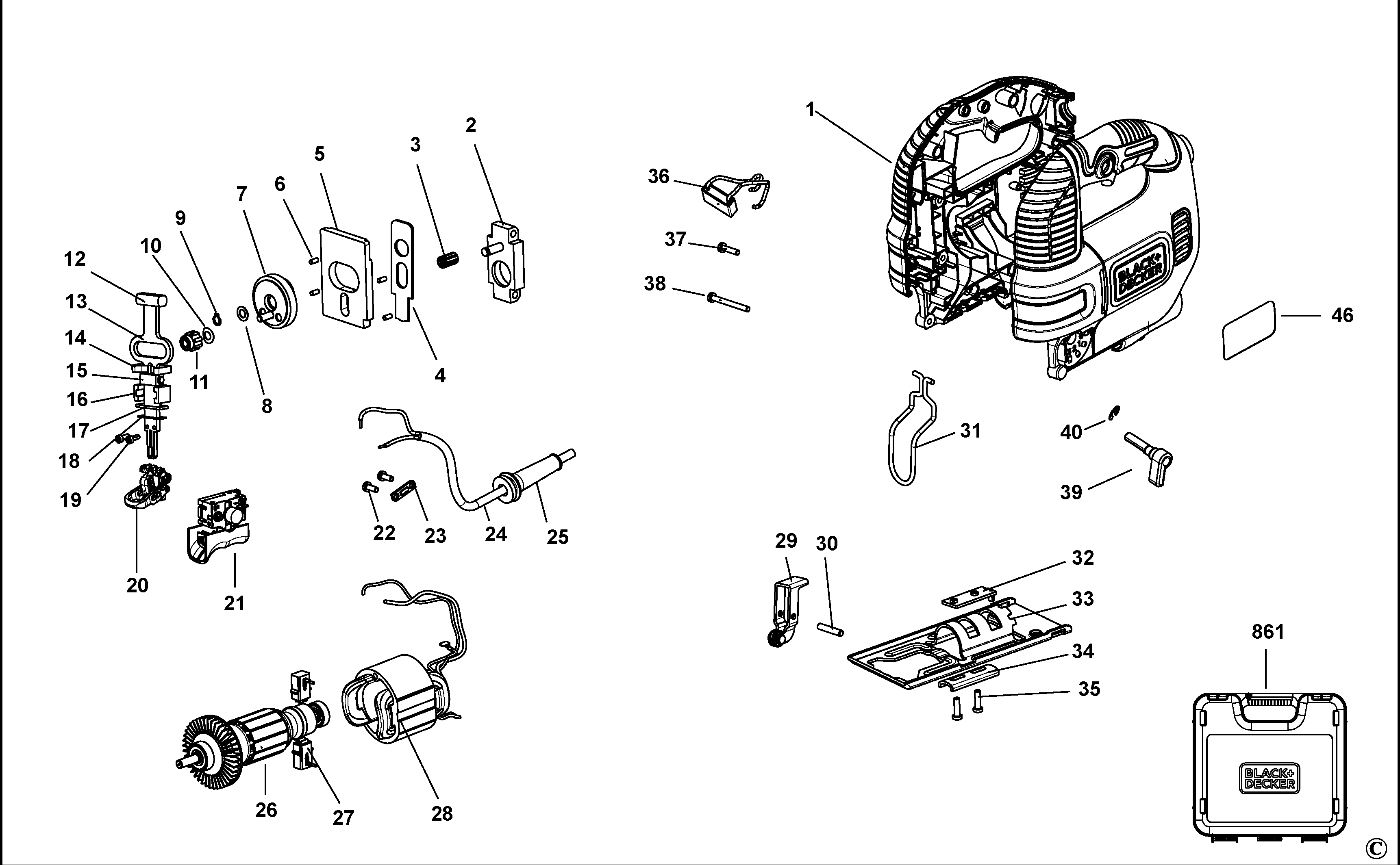

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
1	1	1	CLAMSHELL PAIR (90610727)	74¹ RON
2	1	1	BEARING BLOCK (N814526)	16³⁰ RON
2	1	1	BEARING BLOCK (90510498)	10⁵ RON
3	1	1	BEARING,NEEDLE (90590142)	8² RON
4	1	1	FORK (90553239)	8² RON
5	1	1	COUNTERWEIGHT (90525759)	14⁵² RON
6	1	4	PIN (90517281)	5⁵⁸ RON
7	1	1	Pinion - GEAR (90526099)	27⁹⁵ RON
8	1	1	WASHER (582717-00)	5⁵⁸ RON
9	1	1	RETAINER (90510502)	5⁵⁸ RON
10	1	1	SPRING WASHER (823954)	5⁵⁸ RON
11	1	1	ROLLER DRIVE (795688-00)	12²⁹ RON
12	1	1	BEARING (810893)	5⁵⁸ RON
13	1	1	RECIPRICATOR (90514115)	27⁹⁵ RON
14	1	1	SPRING (582720-00)	5⁵⁸ RON
15	1	1	BEARING (582719-00)	7⁸¹ RON
16	1	1	BEARING CARRIER (795645)	21²⁴ RON
17	1	1	FELT SEAL (582949-00)	5⁵⁸ RON
18	1	1	PLATE (582948-00)	5⁵⁸ RON
19	1	2	SCREW (583173-00)	7⁸¹ RON
20	1	1	BLADE CLAMP (582593-00)	21²⁴ RON
21	1	1	SWITCH SA (N569958)	66⁸⁸ RON
22	1	2	Screw M3.5 X9.5 (330019-01)	5⁵⁸ RON
23	1	1	CLAMP CORD CORNER (329301-00)	5⁵⁸ RON
25	1	1	PROTECTOR (148481-00)	5⁵⁸ RON
26	1	1	ARMATURE SA (90610770)	113³⁷ RON
27	1	2	BRUSHBOX SA (90549938)	16³⁰ RON
28	1	1	FIELD SA (90610771)	53⁷⁰ RON
29	1	1	ROLLER SA (90607211)	19³³ RON
30	1	1	PIN (90542862)	5⁵⁸ RON
31	1	1	GUARD (90605828)	8² RON
32	1	1	PLATE LOCK (90512885)	7⁸¹ RON
33	1	1	SHOE (90603421)	27⁹⁶ RON
34	1	1	PLATE (90512886)	7⁸¹ RON
35	1	2	SCREW (90519315)	5⁵⁸ RON
36	1	1	CAPACITOR (90610227-01)	9⁴⁴ RON
37	1	9	Screw M3.5X16 T15 (330019-03)	5⁵⁸ RON
38	1	2	SCREW (330019-59)	5⁵⁸ RON
39	1	1	LEVER SA (90610703)	17⁷² RON
40	1	1	RETAINER (90544008)	5⁵⁸ RON
800	1	1	RATING LABEL (N605875)	5⁸⁸ RON
861	1	1	KIT BOX (90607903)	74¹ RON
