Top » Piese de schimb » PIESE BLACK & DECKER » JS700K Type 1

FIERASTRAU PENDULAR BLACK+DECKER JS700K Type 1
[JS700K Type 1]
FIERASTRAU PENDULAR BLACK+DECKER JS700K Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU PENDULAR BLACK+DECKER JS700K Type 1
Click pentru a mari

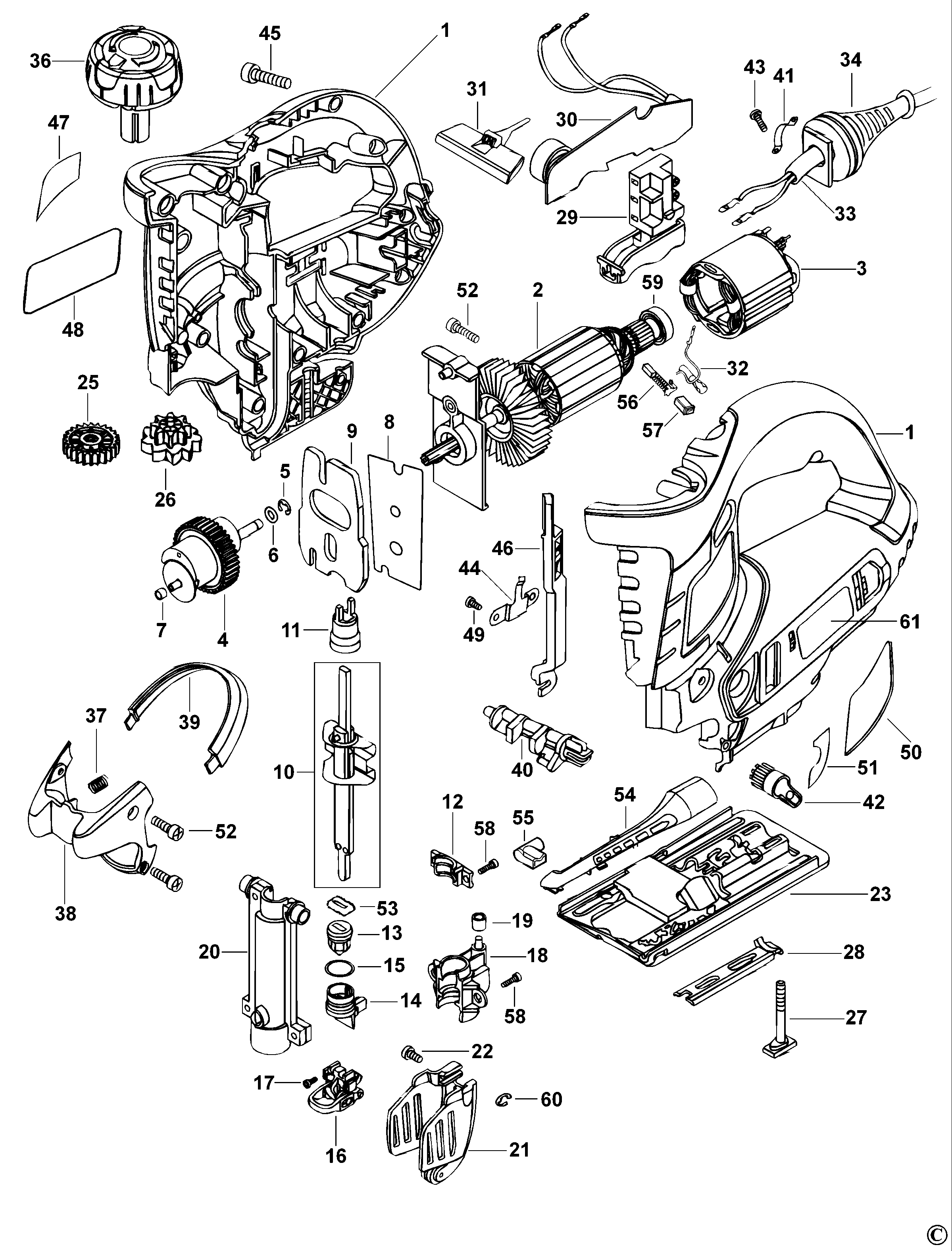

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (583413-02) 14315 RON
4 1 1 GEAR SA (585805-00) 4472 RON
5 1 1 LOCKING RING (588592-00) 558 RON
6 1 1 WASHER (588593-00) 558 RON
7 1 1 DRIVE ROLLER (583464-01) 558 RON
7 1 1 DRIVE ROLLER (583464-00) 558 RON
8 1 1 THRUST PLATE (585809-00) 781 RON
9 1 1 BALANCE WEIGHT (583419-00) 3466 RON
10 1 1 SHAFT SA (583427-01) 4472 RON
10 1 1 SHAFT SA (583427-00) 4472 RON
11 1 1 BEARING (583422-00) 1117 RON
12 1 1 CLAMP/KS2005/XTS10 (583567-00) 558 RON
13 1 1 BEARING (583677-00) 1117 RON
14 1 1 BEARING (583425-00) 1788 RON
15 1 1 O RING (585388-00) 558 RON
16 1 1 BLADE CLAMP (582593-00) 2124 RON
17 1 2 SCREW (583173-00) 781 RON
18 1 1 CLAMP SA/KS2005 / XTS10 (583430-00) 2124 RON
19 1 1 FOLLOWER (583423-00) 558 RON
20 1 1 CARRIER (583421-00) 2124 RON
21 1 1 BLADE SUPPORT SA (583432-00) 3466 RON
22 1 1 SCREW (590341-00) 105 RON
22 1 1 SCREW (586222-00) 781 RON
23 1 1 SHOE SA (585391-00) 3466 RON
25 1 1 GEAR SA (582768-00) 781 RON
26 1 1 ACTUATOR (582601-00) 781 RON
27 1 1 LOCKING SCREW (586927-00) 781 RON
28 1 1 SUPPORT BRACKET (583657-00) 781 RON
29 1 1 SWITCH SA (585385-00) 2347 RON
30 1 1 PCB SA (583508-00) 10512 RON
31 1 1 ACTUATOR (585386-00) 781 RON
34 1 1 CORD PROTECTOR (582722-00) 781 RON
36 1 1 KNOB SA (583434-00) 2795 RON
37 1 1 SPRING (590096-00) 558 RON
38 1 1 CASTING (583455-00) 3018 RON
39 1 1 CASTING (583454-00) 2124 RON
40 1 1 CAM (583452-00) 558 RON
41 1 1 CORD CLAMP DW309K (380414-00) 558 RON
42 1 1 SELECTOR (583451-00) 558 RON
43 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
44 1 1 RETAINER (583450-00) 558 RON
45 1 10 SCREW NO.8 X 19 POLY (809961) 558 RON
46 1 1 LOCK (583449-00) 781 RON
48 1 1 000000-00 - Indisponibil
49 1 2 SCREW (330019-48) 558 RON
52 1 6 SCREW (330013-11) 558 RON
53 1 1 FELT SEAL (583678-00) 558 RON
54 1 1 VACUUM ADAPTOR (586068-00) 1117 RON
55 1 1 ELBOW TUBE (582732-00) 558 RON
57 1 2 BRUSHBOX (582696-00) 558 RON
58 1 4 SCREW (891024) 558 RON
58 1 1 SCREW PAN PH/TT M.4X12UNI8112 (860094-05) 558 RON
59 1 1 BEARING (574853-08) 1117 RON
60 1 1 LOCKING RING (587375-00) 558 RON
