Top » Piese de schimb » PIESE BLACK & DECKER » BDCJS18 Type H1

FIERASTRAU PENDULAR BLACK+DECKER BDCJS18 Type H1
[BDCJS18 Type H1]
FIERASTRAU PENDULAR BLACK+DECKER BDCJS18 Type H1
Click pentru a mari
Imagini suplimentare
FIERASTRAU PENDULAR BLACK+DECKER BDCJS18 Type H1
Click pentru a mari
FIERASTRAU PENDULAR BLACK+DECKER BDCJS18 Type H1
Click pentru a mari

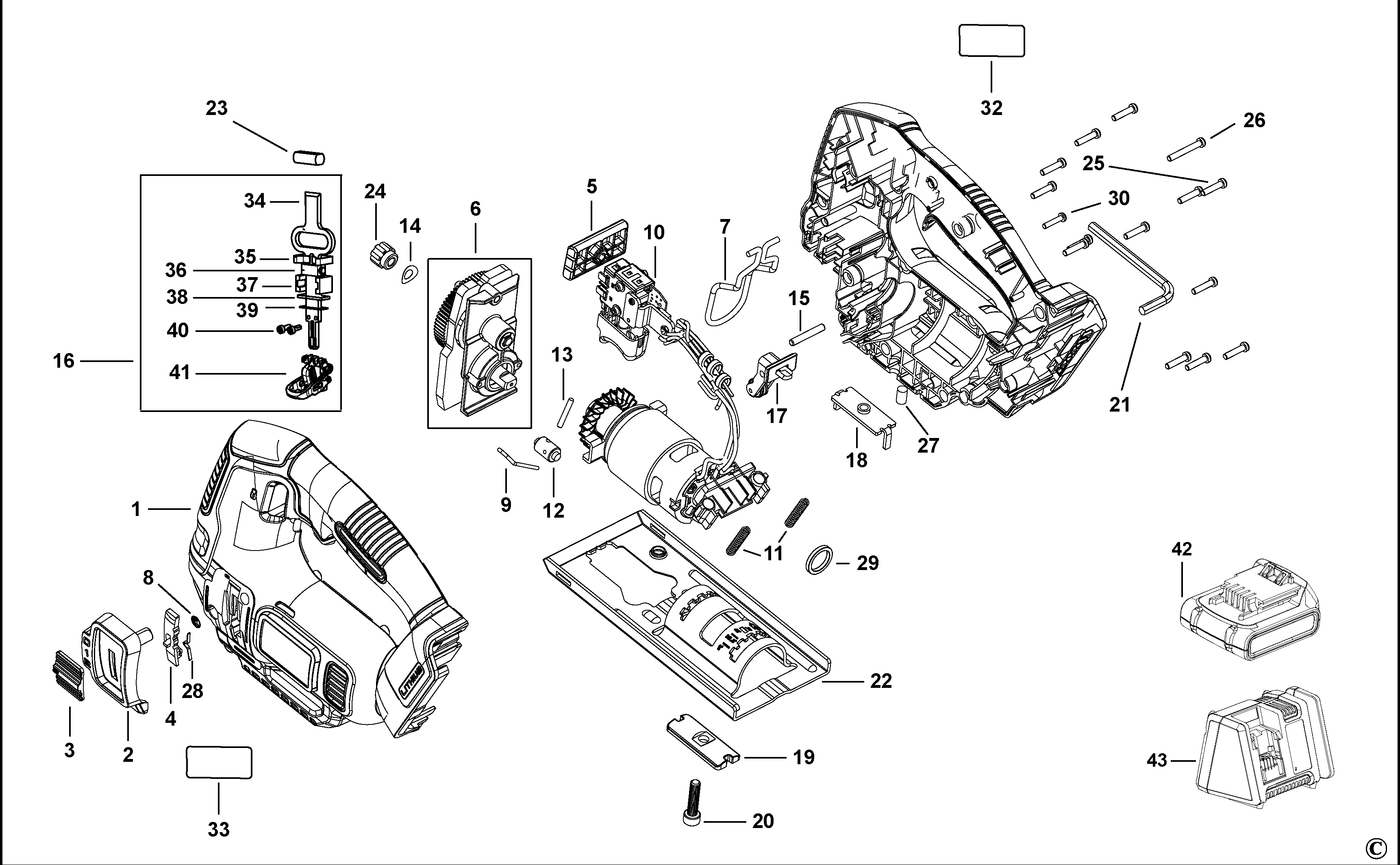

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (90622482) 11337 RON
2 1 1 SWITCH COVER (90593630-01) 588 RON
3 1 1 SLIDER (90593631-02) 588 RON
4 1 1 PLATE (90594596) 588 RON
5 1 1 BAR LOCKING (90592209-01) 668 RON
6 1 1 GEARBOX (90593856) 18568 RON
7 1 1 GUARD (90605828) 82 RON
8 1 1 RING (5145994-00) 588 RON
9 1 1 ROD (90597489) 82 RON
10 1 1 90622917-01 - Indisponibil
10 1 1 MOTOR & SWITCH SA (N925231) 30769 RON
11 1 2 SPRING (5100035-03) 558 RON
12 1 1 SELECTOR (5146003-00) 588 RON
13 1 1 NEEDLE (5146004-00) 588 RON
14 1 1 WASHER (5146006-00) 588 RON
15 1 1 PIN (5146349-00) 588 RON
16 1 1 5146350-02 - Indisponibil
16 1 1 SHAFT SA (N925371) 4827 RON
17 1 1 90549292 - Indisponibil
17 1 1 BLADE SUPPORT SA (N925187) 2182 RON
18 1 1 PLATE LOCK (90592123) 114 RON
19 1 1 PLATE LOCK (90592125-01) 114 RON
20 1 1 BOLT (098121-25) 588 RON
21 1 1 KEY (90592650) 82 RON
22 1 1 SHOE (90619519-01) 3954 RON
23 1 1 BEARING (810893) 558 RON
24 1 1 ROLLER DRIVE (795688-00) 1229 RON
25 1 12 SCREW (5106167-00) 558 RON
26 1 2 SCREW (498099-00) 558 RON
27 1 1 PLUG (5149025-00) 588 RON
28 1 1 DETENT (5145989-00) 588 RON
29 1 1 O RING (90578553) 588 RON
30 1 1 SCREW (5101046-01) 588 RON
33 1 1 BRAND LABEL (90622481) 588 RON
34 1 1 SHAFT (582653-00) 3268 RON
35 1 1 SPRING CLIP (5146865-00) 588 RON
36 1 1 BEARING (582719-00) 781 RON
37 1 1 BEARING CARRIER (795645) 2124 RON
38 1 1 FELT SEAL (5146353-00) 588 RON
39 1 1 PLATE (5146352-00) 588 RON
40 1 2 SCREW (5146354-00) 558 RON
41 1 1 BLADE CLAMP (582593-02) 2182 RON
42 1 1 BATTERY 18V - 1.5AH - 27WH (NA011189) 32327 RON
43 1 1 CHARGER SA (N494099) 16689 RON
