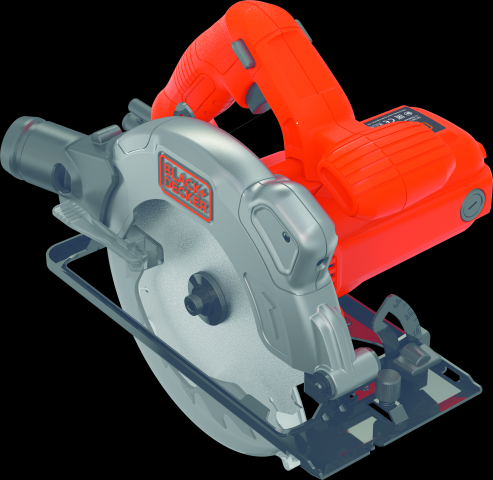

FIERASTRAU CIRCULAR BLACK+DECKER CS1250KL Type 1
[CS1250KL Type 1]
FIERASTRAU CIRCULAR BLACK+DECKER CS1250KL Type 1
Click pentru a mari
Imagini suplimentare
FIERASTRAU CIRCULAR BLACK+DECKER CS1250KL Type 1
Click pentru a mari
FIERASTRAU CIRCULAR BLACK+DECKER CS1250KL Type 1
Click pentru a mari

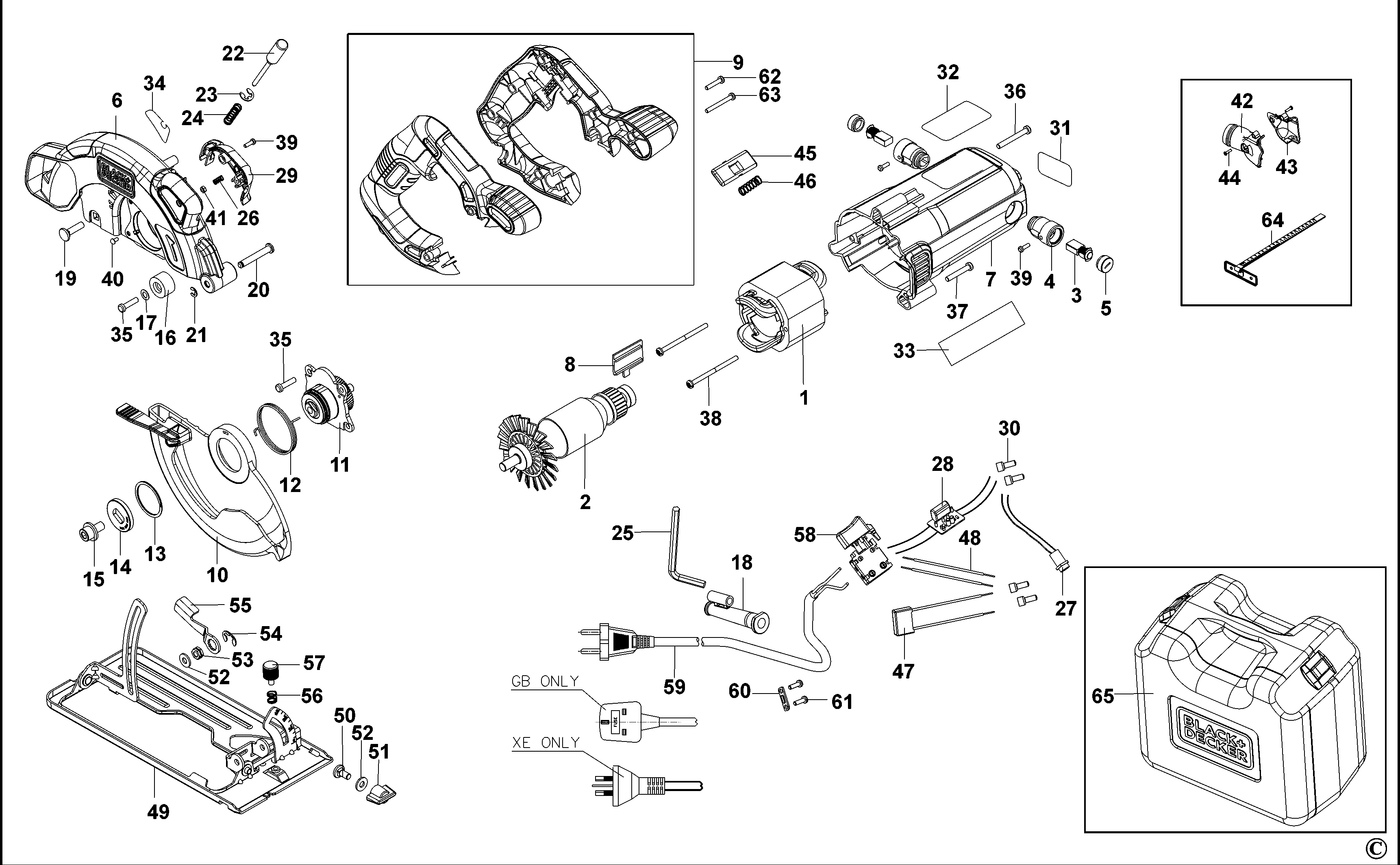

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 FIELD SA (90638912) 11337 RON
2 1 1 ARMATURE 230V (90638913) 23244 RON
3 1 2 BRUSH 230V (90640566) 114 RON
4 1 2 BRUSH HOLDER (90641247) 114 RON
5 1 2 BRUSH CAP (90641337) 588 RON
6 1 1 GUARD (90636177) 6688 RON
7 1 1 HOUSING MOTOR (90632258) 4827 RON
8 1 1 RETAINER (90632311) 588 RON
9 1 1 HANDLE SA (90632259) 3954 RON
10 1 1 GUARD (90632263) 3268 RON
11 1 1 SPINDLE SA (90632264) 741 RON
12 1 1 SPRING (90568897) 588 RON
13 1 1 SPRING CLIP (90633041) 588 RON
14 1 1 90632707 - Indisponibil
14 1 1 OUTER FLANGE (N715374) 1318 RON
15 1 1 SCREW (90578338) 668 RON
16 1 1 STOP (90642485) 588 RON
17 1 1 WASHER (330016-07) 558 RON
18 1 1 CORD PROTECTOR (90568797) 588 RON
19 1 1 BOLT (90632286) 588 RON
20 1 1 PIN (90635132) 588 RON
21 1 1 RETAINER (90578384) 588 RON
22 1 1 SHAFT (90632290) 944 RON
23 1 1 CLIP (90632292) 588 RON
24 1 1 SPRING (90632291) 588 RON
25 1 1 HEX KEY (90579371) 668 RON
26 1 1 SPRING (90632277) 588 RON
27 1 1 LASER (90632252) 4355 RON
28 1 1 PCB (90632254) 2796 RON
29 1 1 COVER (90632276) 668 RON
30 1 4 TERMINAL (90640445) 588 RON
31 1 1 LABEL (90632305) 588 RON
32 1 1 RATING LABEL (90640087) 588 RON
33 1 1 WARNING LABEL (90640088) 588 RON
34 1 1 WARNING LABEL (90640089) 588 RON
35 1 5 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
36 1 2 SCREW PLASTIC THD FORM M4*38 T20 (330019-16) 558 RON
37 1 1 SCREW (330019-45) 558 RON
38 1 2 SCREW PLSTC THD FORM M4.06X62 (330019-82) 588 RON
39 1 5 SCREW PLASTIC (330019-41) 588 RON
40 1 1 SCREW (90640443) 588 RON
41 1 1 NUT (330015-00) 588 RON
42 1 1 DUST PORT (90632294) 1772 RON
43 1 1 DUST PORT (90632295) 668 RON
44 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
45 1 1 ACTUATOR (90632250) 588 RON
46 1 1 ACTUATOR (90632250) 588 RON
47 1 1 CAPACITOR (90641951) 588 RON
48 1 1 LEADWIRE (90641952) 588 RON
49 1 1 SHOE SA (90640442) 4355 RON
50 1 1 BOLT (90632296) 588 RON
51 1 1 WING NUT (90568910) 944 RON
52 1 2 WASHER (90580384) 588 RON
53 1 1 LOCK NUT (90569115) 588 RON
54 1 1 CLIP (90641175) 588 RON
55 1 1 LEVER SA (90636210) 588 RON
56 1 1 SPRING (90568918) 588 RON
57 1 1 SCREW (90568917) 588 RON
58 1 1 SWITCH (90634449) 3268 RON
59 1 1 CORDSET (EURO) (90578995-11) 3466 RON
60 1 1 CLAMP CORD CORNER (329301-00) 558 RON
61 1 2 SCREW NO.6 X 12.7 (370748) 558 RON
62 1 2 SCREW (90611830) 588 RON
62 1 2 SCREW PLASTIC THREAD FORM M3.5 * 19 T1 (330019-04) 558 RON
63 1 1 SCREW PLSTC THD FORM M3.5x32 T15 (330019-06) 558 RON
64 1 1 FENCE (90568785) 1772 RON
65 1 1 KITBOX (90638049) 25728 RON
800 1 1 RATING LABEL (90640087) 588 RON
