FIERASTRAU CIRCULAR BLACK+DECKER BDCCS18 Type 2
[BDCCS18 Type 2]
FIERASTRAU CIRCULAR BLACK+DECKER BDCCS18 Type 2
Click pentru a mari
Imagini suplimentare
FIERASTRAU CIRCULAR BLACK+DECKER BDCCS18 Type 2
Click pentru a mari
FIERASTRAU CIRCULAR BLACK+DECKER BDCCS18 Type 2
Click pentru a mari
FIERASTRAU CIRCULAR BLACK+DECKER BDCCS18 Type 2
Click pentru a mari

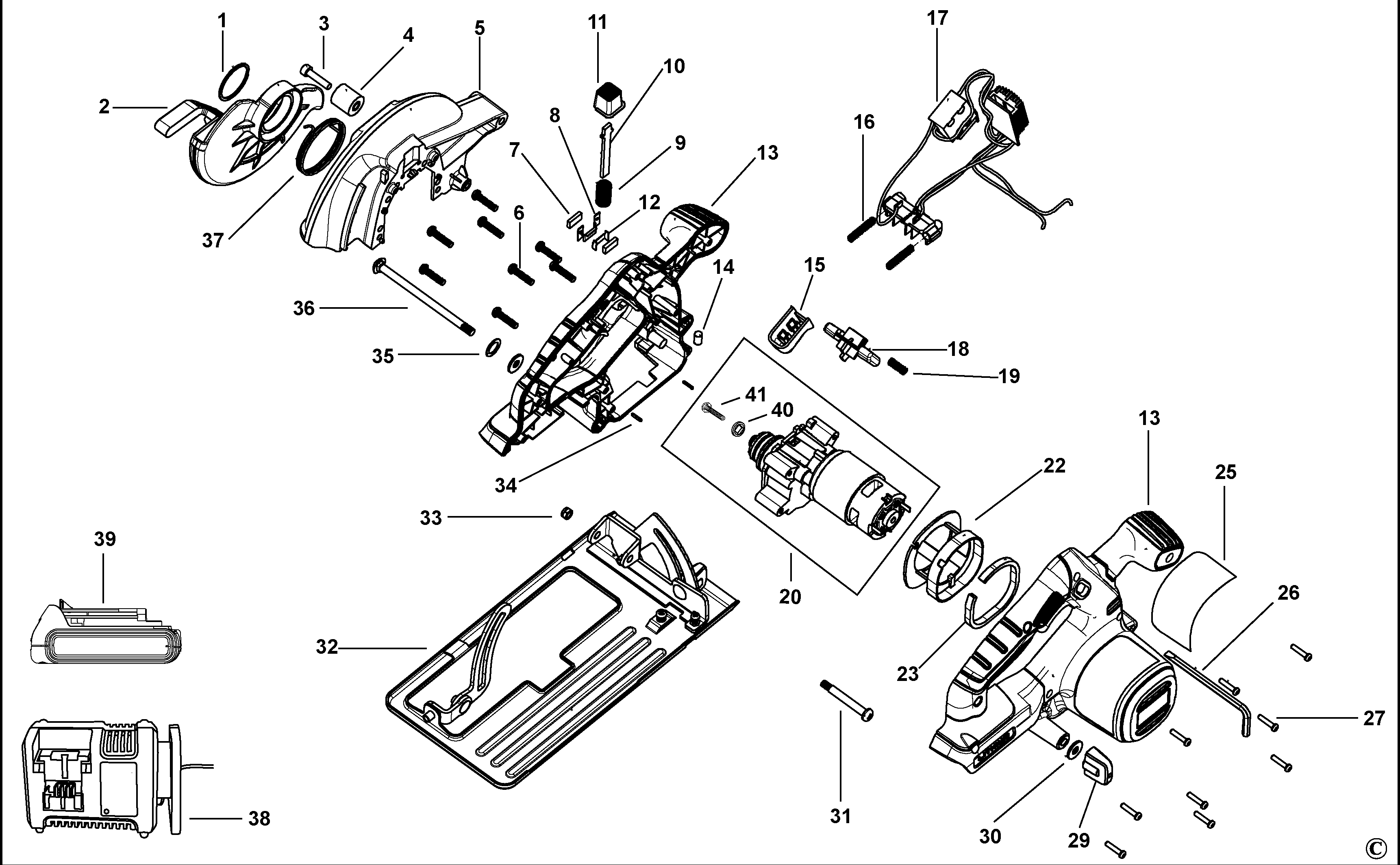

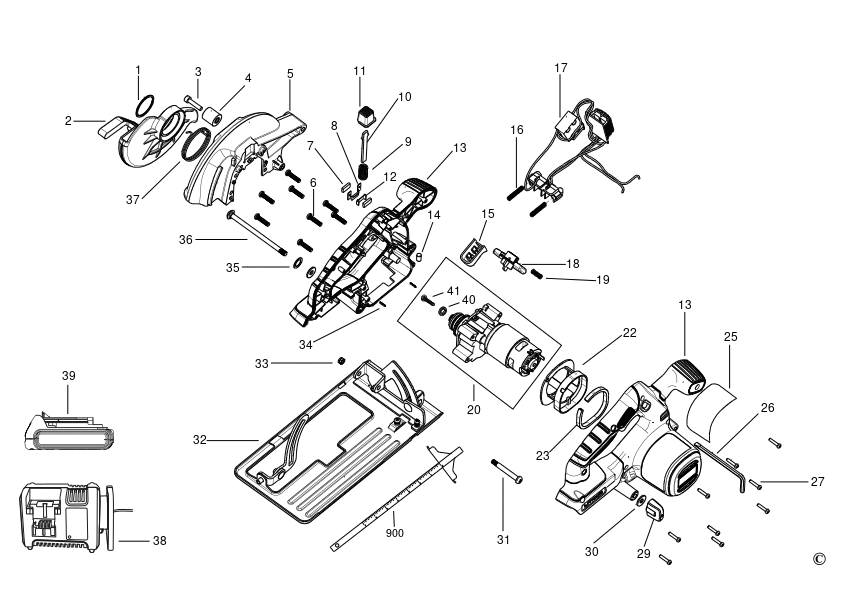

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 RING (90596839) 944 RON
2 1 1 GUARD LOWER (90591863) 2556 RON
3 1 1 SCREW (90554559) 588 RON
4 1 1 BUMPER (5147707-00) 588 RON
5 1 1 GUARD UPPER (90620617) 2796 RON
6 1 8 SCREW (5148755-00) 588 RON
7 1 2 FILTER (90599419) 588 RON
8 1 1 COVER (5148017-00) 588 RON
9 1 1 SPRING (90599596) 588 RON
10 1 1 ROD (90595283) 668 RON
11 1 1 BUTTON (90595286) 588 RON
12 1 1 HOLDER (5148018-00) 588 RON
13 1 1 HOUSING SA (N763978) 6688 RON
14 1 1 PLUG (5149025-00) 588 RON
15 1 1 TRIGGER (5148438-00) 668 RON
16 1 2 SPRING (5100035-03) 558 RON
17 1 1 SWITCH & PCB SA (N732192) 25728 RON
18 1 1 BUTTON LOCK-OFF (90532025-02) 588 RON
19 1 1 SPRING (90532974) 588 RON
20 1 1 MOTOR & GEARCASE (N580753) 28836 RON
22 1 1 BAFFLE (90593114-01) 82 RON
23 1 1 CAP (90597104) 668 RON
25 1 1 N751446 - Indisponibil
25 1 1 RATING LABEL (NA033651) 588 RON
26 1 1 HEX KEY (90502723) 781 RON
27 1 9 SCREW-M3.5X16 (90501917) 588 RON
29 1 1 KNOB (90503101-01) 1318 RON
30 1 2 WASHER (490900-00) 588 RON
31 1 1 SCREW (5148557-01) 588 RON
32 1 1 SHOE SA (90595740) 11337 RON
33 1 1 NUT kc1440 (497557-00) 558 RON
34 1 2 000000-11 - Indisponibil
35 1 1 WASHER (90599319) 588 RON
36 1 1 BOLT (90532402) 668 RON
37 1 1 SPRING TORSION (N560693) 668 RON
38 1 1 CHARGER SA (N494099) 16689 RON
39 1 1 BATTERY 18V - 1.5AH - 27WH (NA011189) 32327 RON
40 1 1 WASHER CLAMP (90596020) 944 RON
41 1 1 BLADE BOLT (90596168) 668 RON
900 1 1 RIP FENCE (5147196-02) 4355 RON
