Top » Piese de schimb » PIESE BLACK & DECKER » BDCR18 Type H1

FIERASTRAU ALTERNATIV BLACK+DECKER BDCR18 Type H1
[BDCR18 Type H1]
FIERASTRAU ALTERNATIV BLACK+DECKER BDCR18 Type H1
Click pentru a mari
Imagini suplimentare
FIERASTRAU ALTERNATIV BLACK+DECKER BDCR18 Type H1
Click pentru a mari
FIERASTRAU ALTERNATIV BLACK+DECKER BDCR18 Type H1
Click pentru a mari

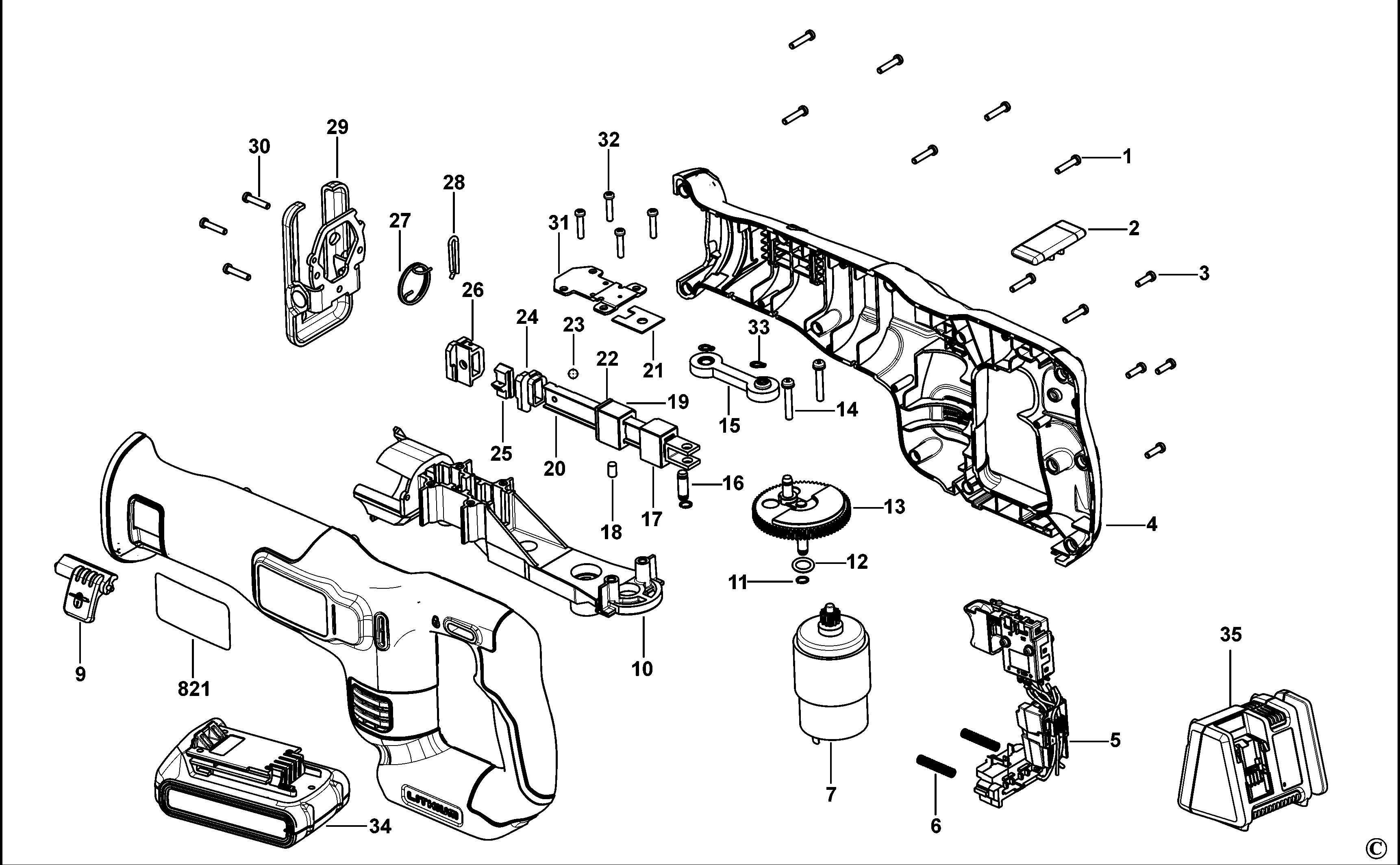

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 8 SCREW (497283-01) 558 RON
2 1 1 ACTUATOR (90591822) 668 RON
3 1 4 SCREW (486563-00) 558 RON
4 1 1 CLAMSHELL (90591332N) 9012 RON
5 1 1 90591323 - Indisponibil
5 1 1 SWITCH SA (90612185) 18568 RON
6 1 2 SPRING (5100035-03) 558 RON
7 1 1 90533876 - Indisponibil
7 1 1 MOTOR & PINION (N925311) 20216 RON
9 1 1 LEVER SA (90593644) 1772 RON
10 1 1 90591337 - Indisponibil
10 1 1 GEARCASE SA (N924521) 5370 RON
11 1 2 CIRCLIP (499571-00) 781 RON
11 1 1 CIRCLIP (498946-00) 558 RON
12 1 1 WASHER (498945-00) 558 RON
13 1 1 90533879 - Indisponibil
13 1 1 GEAR SA (N924376) 3954 RON
14 1 2 SCREW (498974-00) 558 RON
15 1 1 90533883 - Indisponibil
15 1 1 CON ROD SA (N924277) 4827 RON
16 1 1 SHAFT (498918-40) 668 RON
17 1 1 SLEEVE BEARING (90538467) 944 RON
18 1 1 PLUG (498972-00) 558 RON
19 1 1 SLEEVE BEARING (90538466) 114 RON
20 1 1 BEAM (90536386) 10241 RON
21 1 1 INSULATOR (499574-00) 558 RON
22 1 1 DAMPER (499687-00) 558 RON
22 1 1 SEAL (N924898) 588 RON
23 1 1 BALL (000903-00) 558 RON
23 1 1 903-00 - Indisponibil
24 1 1 COLLAR (498563-01) 114 RON
25 1 2 SLIDER (498561-01) 944 RON
26 1 1 COLLAR (498565-31) 1933 RON
27 1 1 SPRING (498567-00) 781 RON
28 1 2 LOCKING PIN (498566-00) 781 RON
29 1 1 SHOE SA (498755-03) 3268 RON
30 1 3 SCREW (497283-01) 558 RON
31 1 1 RETAINING PLATE (90533069) 668 RON
32 1 4 SCREW (497283-01) 558 RON
33 1 2 CIRCLIP (498946-00) 558 RON
34 1 1 N703441 - Indisponibil
34 1 1 BATTERY 18V - 1.5AH - 27WH (NA011189) 32327 RON
35 1 1 CHARGER SA (N494099) 16689 RON
