Top » Piese de schimb » PIESE BLACK & DECKER » BD575E-31 Type 100

CUTSAW - FRANCE BLACK+DECKER BD575E-31 Type 100
[BD575E-31 Type 100]
CUTSAW - FRANCE BLACK+DECKER BD575E-31 Type 100
Click pentru a mari
Imagini suplimentare
CUTSAW - FRANCE BLACK+DECKER BD575E-31 Type 100
Click pentru a mari

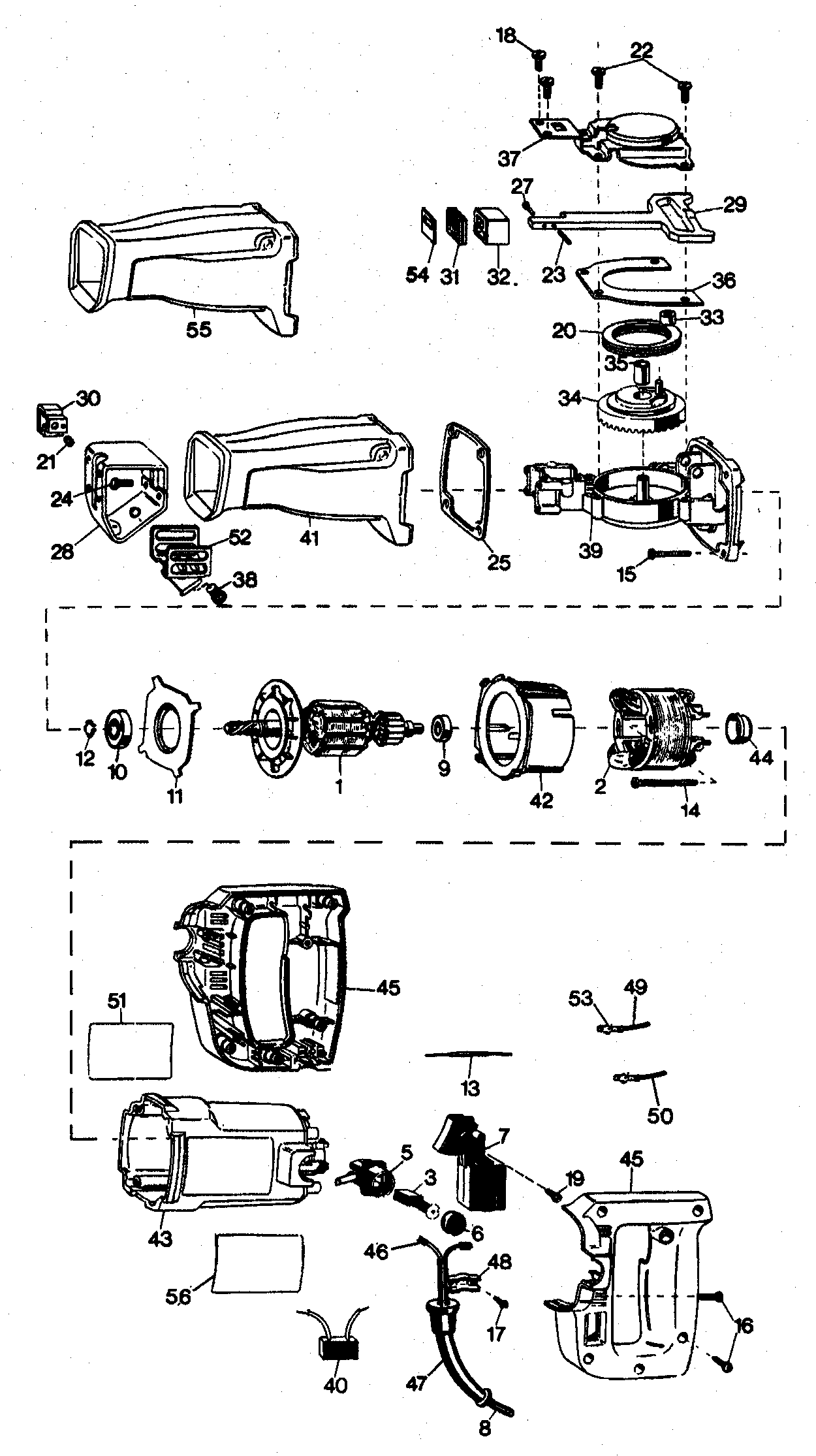

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE ASS (448716-01) 32770 RON
2 1 9 SCREW (86964-00) 558 RON
2 1 1 448719-75 - Indisponibil
3 1 2 BRUSH 230V CUT OFF SA (450374-06) 2795 RON
5 1 2 BRUSH HOLDER (448083-01) 3466 RON
6 1 2 BRUSH CAP (448084-01) 781 RON
8 1 1 93548-21 - Indisponibil
9 1 1 330003-04 - Indisponibil
9 1 1 BEARING BALL cod vechi 330003-04 BEARING BALL (605040-06) 1452 RON
10 1 1 BEARING BALL (330003-09) 2795 RON
10 1 1 Ball Brg (605040-20) 2182 RON
11 1 1 PLATE (448079-00) 1229 RON
12 1 1 WASHER THRUST (144424-00) 3466 RON
12 1 1 RETAINER (696060-00) 558 RON
13 1 2 CHOKE (146453-00) 4472 RON
14 1 1 SCREW PLASTIC THREAD FORM M4 * 50 T20 (330019-50) 558 RON
14 1 1 SCREW PLASTITE (330019-18) 558 RON
15 1 4 SCREW (330013-15) 558 RON
15 1 4 SCREW PLASTIC THREAD FORM M4 * 32 T20 (330019-15) 558 RON
16 1 9 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
17 1 1 148364-00 - Indisponibil
17 1 2 PLASTITE SCREW (330013-03) 558 RON
18 1 2 SCREW (158472-00) 558 RON
19 1 1 SCREW PLASTITE (330013-02) 558 RON
20 1 1 90540337 - Indisponibil
20 1 1 RING (144424-01) 2347 RON
21 1 1 SCREW TEMP (099164-06) 781 RON
21 1 1 99164-06 - Indisponibil
22 1 4 SCREW (144457-02) 558 RON
23 1 1 PIN (144434-00) 558 RON
24 1 4 SCREW (142940-00) 558 RON
25 1 1 GASKET (616609-00) 781 RON
25 1 1 GASKET (146576-00) 105 RON
27 1 1 PIN (158466-00) 558 RON
28 1 1 SHOE (399725-00) 3466 RON
29 1 1 SHAFT (679869-00) 4137 RON
30 1 1 BLADE CLAMP (679868-00) 3018 RON
31 1 1 SEAL SA (386698-00) 781 RON
32 1 1 399725-01 - Indisponibil
32 1 1 BEARING (450865-00) 781 RON
33 1 1 BEARING NEEDLE (385238-00) 1788 RON
34 1 1 BEARING NEEDLE (606113-00) 17335 RON
35 1 1 447799-02 - Indisponibil
35 1 1 ROLLER BEARING (135531-00) 1452 RON
36 1 1 PLATE (143462-02) 2347 RON
37 1 1 COVER PLATE (448489-03) 2124 RON
38 1 1 SCREW (099279-08) 558 RON
38 1 1 99279-08 - Indisponibil
39 1 1 GEAR CASE (449824-07) 14315 RON
40 1 1 CAPACITOR (093585-11) 3466 RON
40 1 1 93585-11 - Indisponibil
41 1 1 COVER SA (621608-00) 5591 RON
41 1 1 GEAR (448503-14) 15993 RON
42 1 1 COVER (603268-00) 4472 RON
42 1 1 448528-06 - Indisponibil
42 1 1 BAFFLE FAN (447786-00) 781 RON
44 1 1 SLEEVE (445217-02) 781 RON
45 1 1 450498-12 - Indisponibil
46 1 2 58427-00 - Indisponibil
47 1 1 N542553 - Indisponibil
47 1 1 PROTECTOR CORD (330005-01) 105 RON
47 1 1 CORD PROTECTOR (N918736) 668 RON
48 1 1 CABLE CLAMP (142519-00) 6821 RON
49 1 1 148390-00 - Indisponibil
50 1 1 148391-00 - Indisponibil
52 1 1 GUARD (157325-00) 190 RON
53 1 2 448172-00 - Indisponibil
54 1 1 SEAL SA (386698-00) 781 RON
55 1 1 450696-00 - Indisponibil
60 1 1 HOLDER (449817-00) 781 RON
61 1 1 99056-08 - Indisponibil
61 1 1 WRENCH (099056-08) 781 RON
