Top » Piese de schimb » PIESE BLACK & DECKER » SX7000 Type 1

CUT SAW BLACK+DECKER SX7000 Type 1
[SX7000 Type 1]
CUT SAW BLACK+DECKER SX7000 Type 1
Click pentru a mari
Imagini suplimentare
CUT SAW BLACK+DECKER SX7000 Type 1
Click pentru a mari

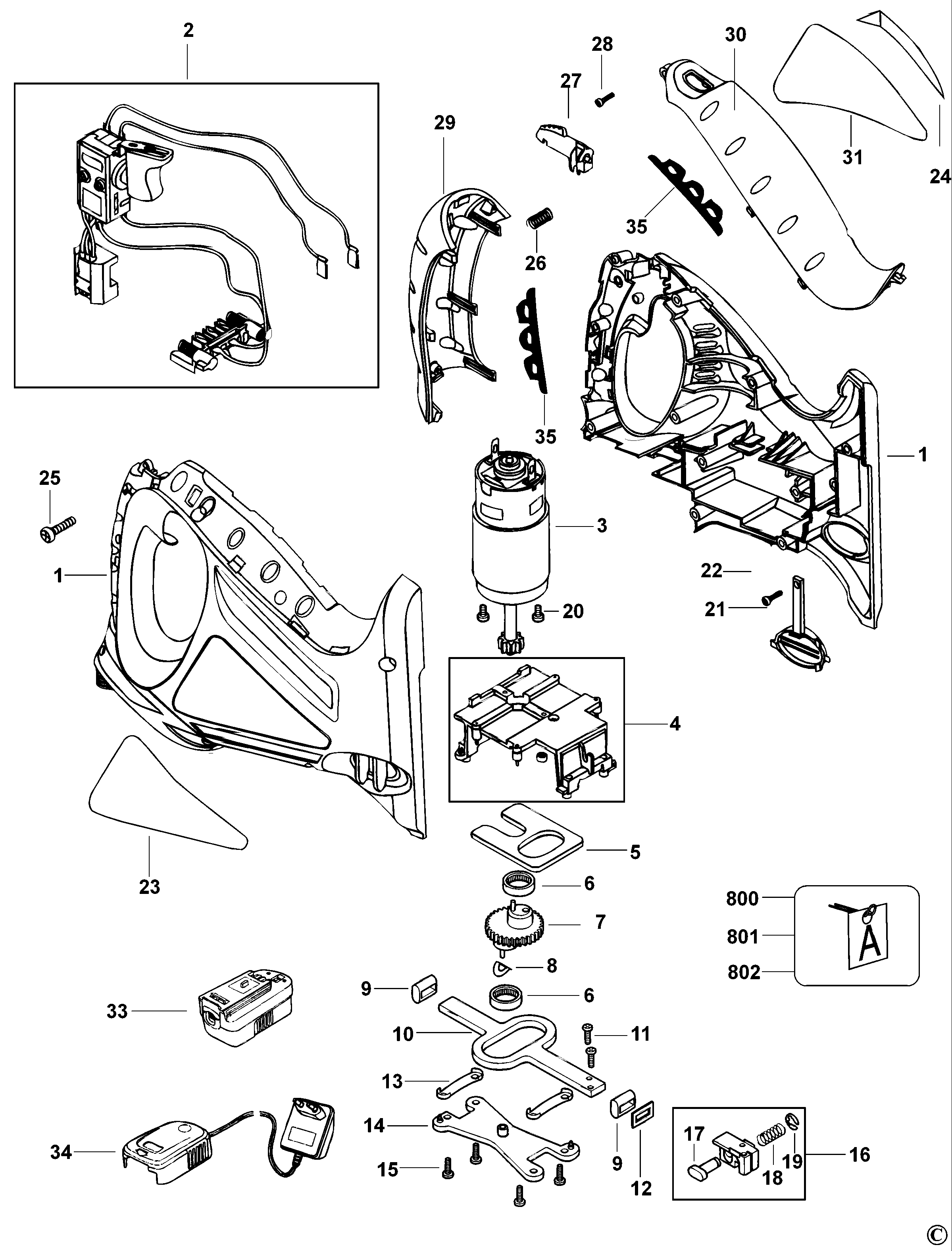

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SET (5105103-00) 3018 RON
2 1 1 SWITCH SA (5100189-01) 2347 RON
3 1 1 MOTOR & PINION (5107021-00) 1891 RON
4 1 1 GEARCASE SA (5107022-00) 4472 RON
5 1 1 BALANCE WEIGHT (5107023-00) 3466 RON
6 1 2 BEARING (5107024-00) 2795 RON
7 1 1 GEAR SA (5107025-00) 3018 RON
8 1 1 WASHER BOW (5107026-00) 558 RON
9 1 2 BEARING (5107027-00) 781 RON
10 1 1 RECIPRICATOR (5107028-00) 2795 RON
11 1 1 SCREW (5107029-00) 558 RON
12 1 1 SEAL (5107030-00) 558 RON
13 1 2 CLAMP (5107031-00) 781 RON
14 1 1 GEARCASE COVER SA (5107032-00) 2795 RON
15 1 4 SCREW (5107033-00) 558 RON
17 1 1 LOCK PIN (5107035-00) 781 RON
18 1 1 SPRING (5107036-00) 558 RON
19 1 1 CIRCLIP (5107037-00) 558 RON
20 1 2 SCREW (5107038-00) 558 RON
21 1 1 ACTUATOR (5105111-00) 558 RON
22 1 1 SCREW (5101503-00) 558 RON
24 1 1 5105124-02 - Indisponibil
25 1 8 SCREW (5103541-00) 558 RON
26 1 1 SPRING (5105114-00) 558 RON
27 1 1 ACTUATOR (5105109-00) 558 RON
28 1 1 SCREW (419471-00) 558 RON
29 1 1 5105106-00 - Indisponibil
30 1 1 5105105-00 - Indisponibil
34 1 1 5104635-00 - Indisponibil
34 1 1 90543928-01 - Indisponibil
35 1 1 5105113-00 - Indisponibil
800 1 2 612999-01 - Indisponibil
801 1 2 577274-00 - Indisponibil
802 1 1 514316-00 - Indisponibil
