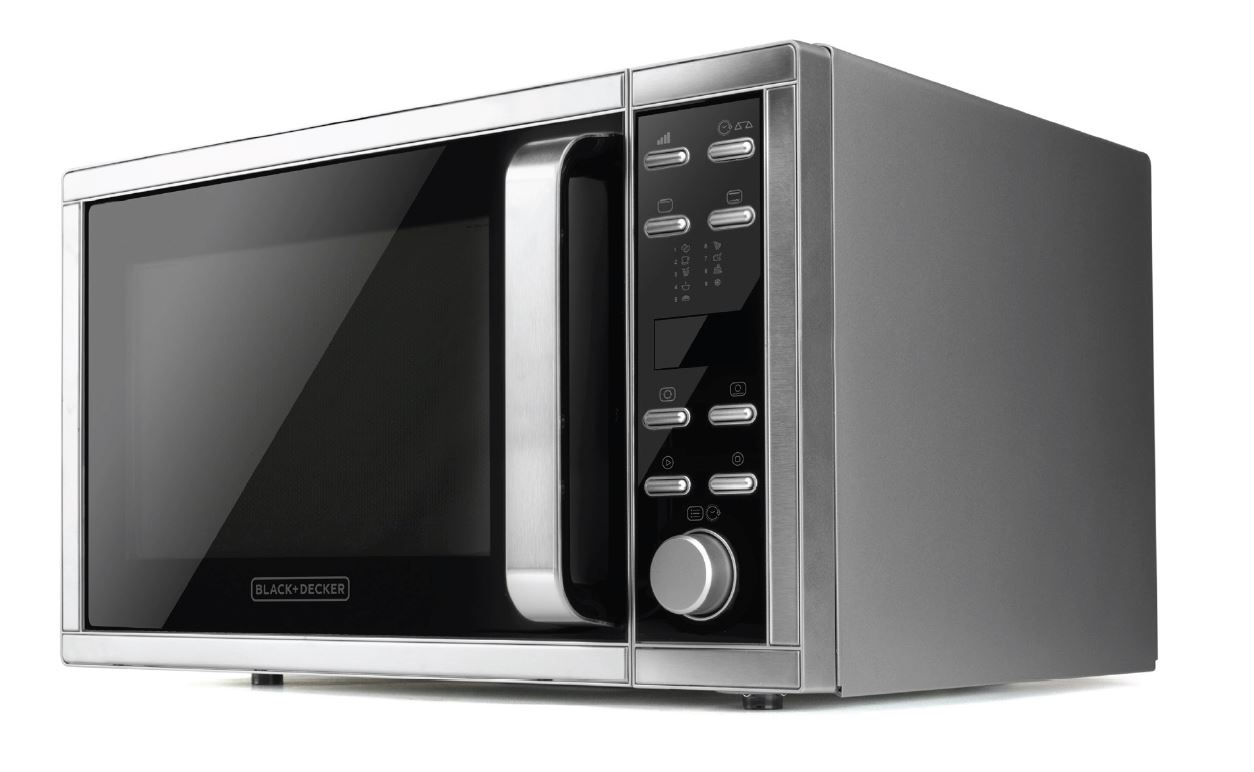

CUPTOR CU MICROUNDE BLACK+DECKER BXMZ901E Type 1
[BXMZ901E Type 1]

Imagini suplimentare

Click pentru a mari

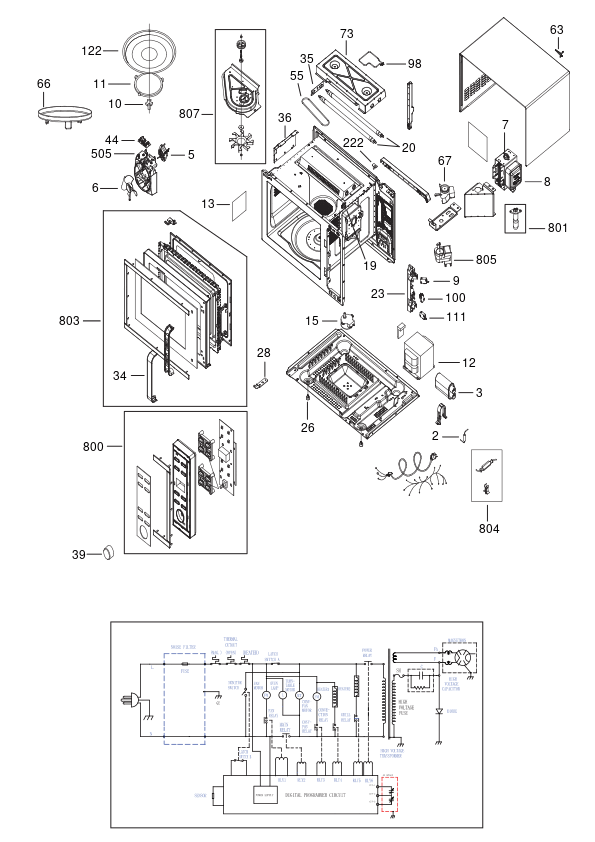

LISTA DE COMPONENTE:

Numar	Versiune	Buc. in schema	Denumire	Pret/buc (Tva inclus)
2	1	1	DIODE (ES0682130B)	21⁸² RON
3	1	1	CONDENSOR (ES0682170B)	123⁶¹ RON
5	1	1	MOTOR (ES0682150B)	154⁶⁹ RON
6	1	1	FAN (ES0682180B)	21⁸² RON
7	1	1	THERMOSTAT (ES0682210B)	16³⁰ RON
8	1	1	MAGNETRON (ES0682030B)	384⁶³ RON
9	1	1	MICRO SWITCH (ES0682250B)	25⁵⁶ RON
10	1	1	COUPLING (ES0682090B)	21⁸² RON
11	1	1	RING SA (ES0682080B)	39⁵⁴ RON
12	1	1	TRANSFORMER (ES0682040B)	498²⁷ RON
13	1	1	GLASS (ES0682230B)	13¹⁸ RON
15	1	1	MOTOR (ES0682200B)	102⁴¹ RON
19	1	1	THERMOSTAT (ES0682450B)	39⁵⁴ RON
20	1	1	RESISTOR (ES0682120B)	27⁹⁶ RON
23	1	1	HOLDER (ES0682270B)	25⁵⁶ RON
26	1	2	FEET (ES0682280B)	9⁴⁴ RON
28	1	1	HINGE (ES0682340B)	16³⁰ RON
34	1	1	HANDLE (ES0682470B)	27⁹⁶ RON
35	1	1	BRACKET (ES0682420B)	19³³ RON
36	1	1	PROTECTOR (ES0682440B)	27⁹⁶ RON
39	1	1	KNOB (ES0682020B)	21⁸² RON
44	1	1	PCB (ES0682300B)	113³⁷ RON
55	1	1	BELT (ES0682430B)	16³⁰ RON
63	1	1	BUMPER (ES0682290B)	13¹⁸ RON
66	1	1	TRAY (ES0682110B)	154⁶⁹ RON
67	1	1	FAN (ES0682380B)	21⁸² RON
73	1	1	INSULATOR (ES0682350B)	39⁵⁴ RON
98	1	1	HEATER SA (ES0682410B)	136⁹⁷ RON
100	1	1	MICRO SWITCH (ES0682260B)	32⁶⁸ RON
111	1	1	MICRO SWITCH (ES0682480B)	25⁵⁶ RON
122	1	1	PLATE (ES0682100B)	154⁶⁹ RON
222	1	1	SENSOR (ES0682400B)	185⁶⁸ RON
505	1	1	SUPPORT (ES0682160B)	39⁵⁴ RON
800	1	1	CONTROL PANEL (ES0682010B)	369⁹⁴ RON
801	1	1	LAMP (ES0682050B)	27⁹⁶ RON
803	1	1	DOOR (ES0682070B)	424²⁶ RON
804	1	1	FUSE (ES0682140B)	39⁵⁴ RON
805	1	1	MOTOR (ES0682360B)	136⁹⁷ RON
807	1	1	FAN SA (ES0682460B)	249⁶² RON
