COSITOARE ROTATIVA BLACK+DECKER GR384 Type 1
[GR384 Type 1]
COSITOARE ROTATIVA BLACK+DECKER GR384 Type 1
Click pentru a mari
Imagini suplimentare
COSITOARE ROTATIVA BLACK+DECKER GR384 Type 1
Click pentru a mari

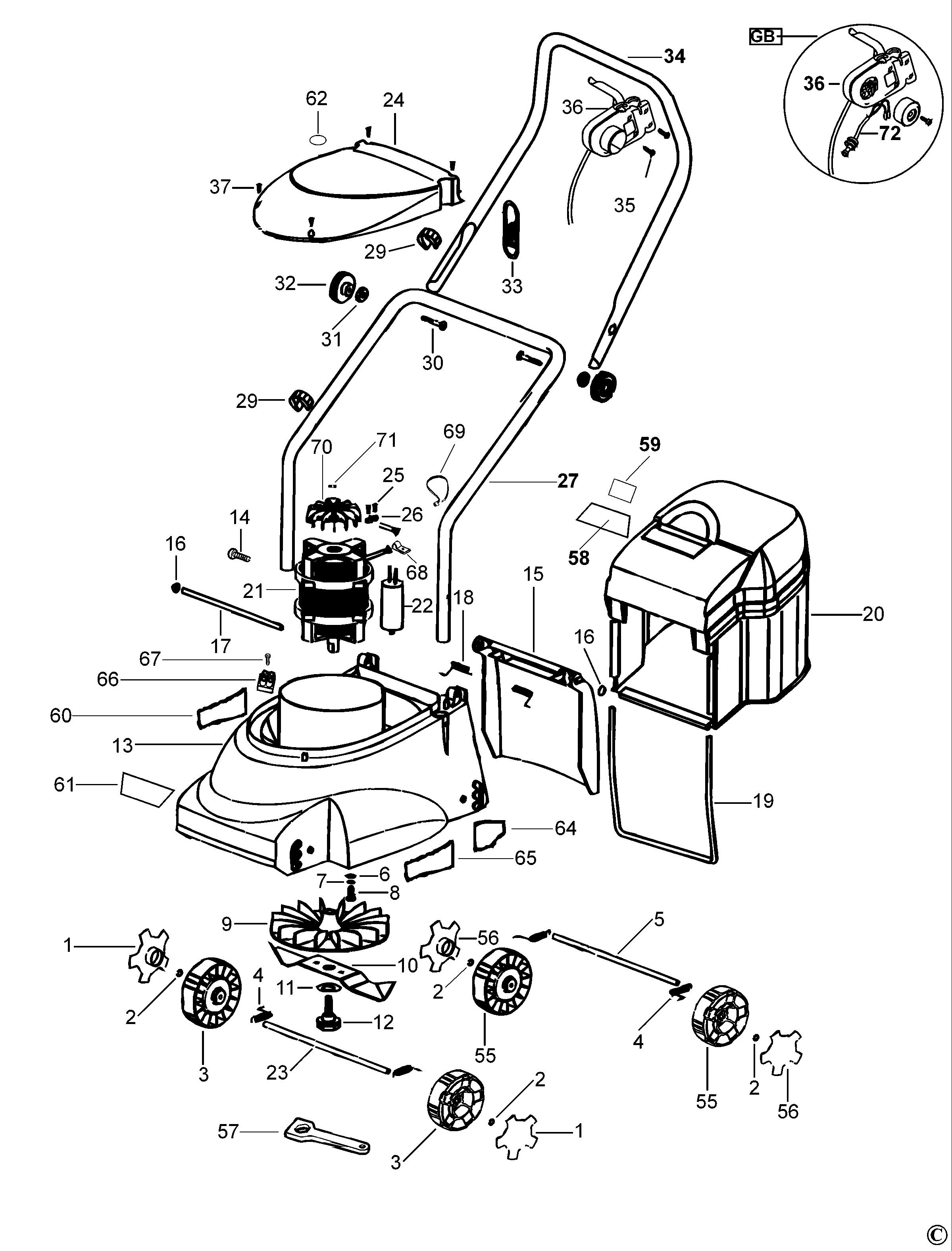

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 2 CAP (569075-00) 3018 RON
2 1 4 RETAINER (568054-00) 558 RON
3 1 2 WHEEL (569077-00) 6821 RON
4 1 4 SPRING (596740-00) 781 RON
5 1 1 AXLE REAR (596741-00) 2124 RON
6 1 4 WASHER (567798-00) 558 RON
7 1 4 WASHER (568051-00) 781 RON
8 1 4 BOLT (596742-00) 558 RON
9 1 1 FAN (596743-00) 3018 RON
9 1 1 IMPELLOR (1003230-00) 4472 RON
9 1 1 IMPELLOR (597930-00) 3018 RON
10 1 1 BLADE (596744-00) 5591 RON
11 1 1 WASHER (596745-00) 105 RON
12 1 1 596746-00 - Indisponibil
13 1 1 CUTTER DECK (596747-00) 3124 RON
14 1 2 SCREW (568695-00) 781 RON
15 1 1 GRASSFLAP (596748-00) 4137 RON
16 1 2 CLIP (596749-00) 558 RON
17 1 1 ROD (596750-00) 1452 RON
18 1 1 SPRING (596751-00) 1788 RON
19 1 1 FRAME (596752-00) 3018 RON
20 1 1 596753-00 - Indisponibil
21 1 1 596754-00 - Indisponibil
22 1 1 CAPACITOR (596755-00) 7940 RON
23 1 1 AXLE FRONT (596756-00) 1788 RON
24 1 1 596757-00 - Indisponibil
25 1 3 SCREW (596758-00) 558 RON
26 1 1 CABLE CLAMP (596759-00) 1117 RON
27 1 1 LOWER HANDLE (596760-00) 3018 RON
29 1 2 CABLE CLAMP (567788-00) 2124 RON
30 1 2 BOLT (567797-00) 105 RON
31 1 2 WASHER (567789-00) 1117 RON
32 1 2 KNOB (279745-00) 2347 RON
33 1 1 RETAINER (559799-00) 3466 RON
34 1 1 HANDLE UPPER (596761-00) 9282 RON
35 1 2 SCREW (596762-00) 558 RON
36 1 1 SWITCHBOX SA (1002740-00) 5484 RON
37 1 4 SCREW (596763-00) 558 RON
55 1 2 596279-00 - Indisponibil
56 1 2 CAP (596280-00) 2124 RON
57 1 1 596764-00 - Indisponibil
58 1 1 LABEL (596765-00) 105 RON
59 1 1 RATING PLATE (596815-00) 893 RON
60 1 1 LABEL (596767-00) 1117 RON
61 1 1 BRAND LABEL (596768-00) 1117 RON
62 1 1 AUTO STOP LABEL (596769-00) 893 RON
64 1 1 LABEL (596772-00) 781 RON
65 1 1 LABEL (596773-00) 1229 RON
66 1 1 TERMINAL BLOCK (596802-00) 893 RON
67 1 1 SCREW (596803-00) 558 RON
68 1 1 SUPPORT BRACKET (596804-00) 558 RON
69 1 2 CABLE TIE (596805-00) 781 RON
70 1 1 FAN (596806-00) 5591 RON
71 1 1 LOCKING RING (596807-00) 781 RON
72 1 1 799370-09 - Indisponibil
