Top » Piese de schimb » PIESE BLACK & DECKER » EMAX34 Type 1

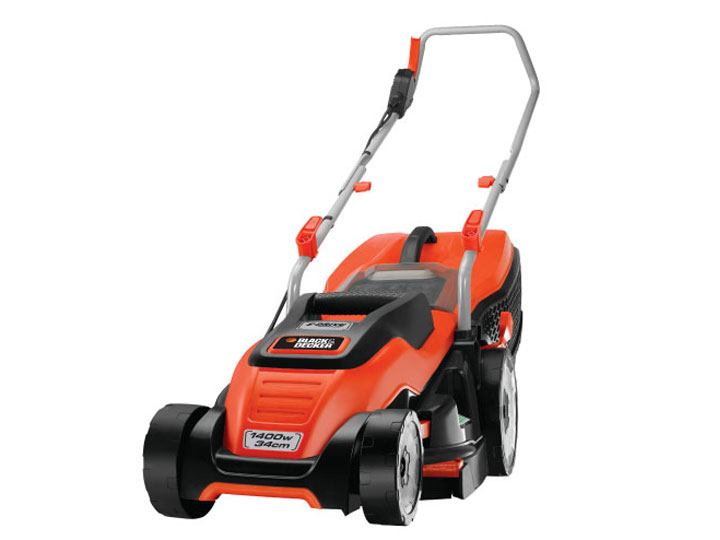

COSITOARE ROTATIVA BLACK+DECKER EMAX34 Type 1
[EMAX34 Type 1]
COSITOARE ROTATIVA BLACK+DECKER EMAX34 Type 1
Click pentru a mari
Imagini suplimentare
COSITOARE ROTATIVA BLACK+DECKER EMAX34 Type 1
Click pentru a mari
COSITOARE ROTATIVA BLACK+DECKER EMAX34 Type 1
Click pentru a mari

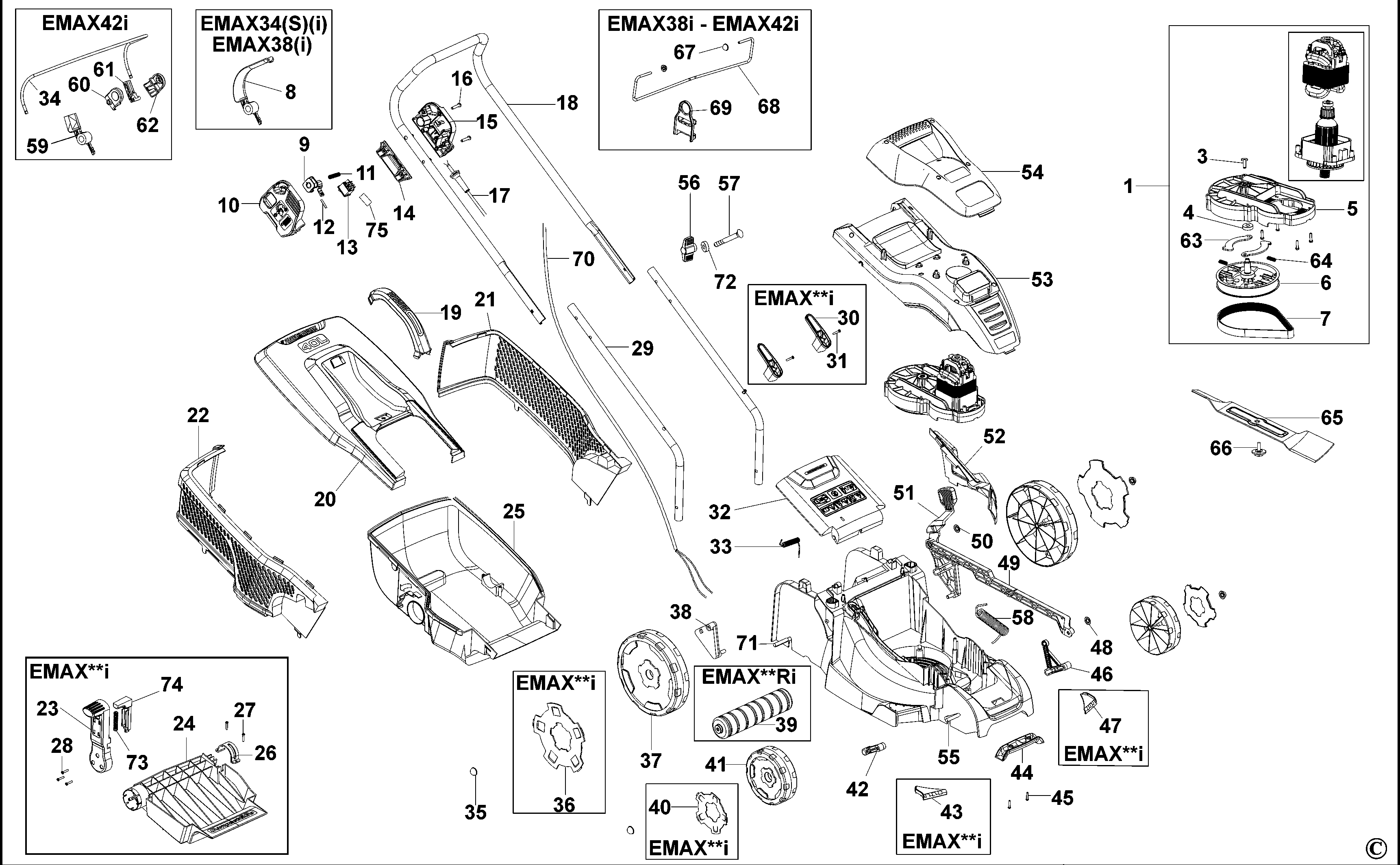

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 MOTOR SA (90565704-02) 3592 RON
3 1 1 BOLT (90579523) 558 RON
4 1 1 BEARING (330003-58) 105 RON
5 1 1 BRACKET (90560309) 6821 RON
6 1 1 PULLEY (90560305) 5031 RON
7 1 1 BELT (90560308) 6821 RON
8 1 1 SWITCHBOX & CABLE (90577008-01) 25164 RON
8 1 1 HANDLE (90562892) 1229 RON
9 1 1 SWITCHBOX & CABLE (90577008-01) 25164 RON
9 1 1 BUTTON (90562893) 781 RON
10 1 1 SWITCHBOX & CABLE (90577008-01) 25164 RON
10 1 1 HOUSING SWITCH (90563922-01) 2347 RON
11 1 1 SPRING (90570092) 558 RON
12 1 1 SPRING (90565052) 558 RON
12 1 1 SPRING (90565052-01) 558 RON
13 1 1 SWITCH (90562582) 2124 RON
14 1 1 BRACKET (90563921-01) 781 RON
15 1 1 SWITCHBOX & CABLE (90577008-01) 25164 RON
15 1 1 HOUSING SWITCH (90563930-01) 2347 RON
17 1 1 CORDSET (90580223-01) 17335 RON
18 1 1 HANDLE UPPER (90568480) 14315 RON
19 1 1 HANDLE (90567333) 1452 RON
20 1 1 COVER (90567971) 5031 RON
21 1 1 GRASSBOX LEFT (90567929) 3466 RON
22 1 1 GRASSBOX RIGHT (90567930) 3466 RON
23 1 1 PEDAL (90566450) 1229 RON
24 1 1 FLAP (90568628) 4472 RON
25 1 1 GRASSBOX (90567928) 5591 RON
25 1 1 GRASSBOX (90567928-01) 6821 RON
25 1 1 GRASSBOX (N572320) 741 RON
26 1 1 CLAMP (90567440) 558 RON
27 1 2 SCREW (747329) 558 RON
28 1 3 SCREW (747329) 558 RON
29 1 1 HANDLE (90560302) 3018 RON
30 1 2 CLIP CABLE (90571019) 781 RON
31 1 2 SCREW (90580712) 558 RON
32 1 1 GRASSFLAP (90566433) 3018 RON
33 1 1 SPRING (90571059) 781 RON
35 1 4 Washer Lock (90574276) 781 RON
36 1 2 COVER (90567334) 893 RON
37 1 2 WHEEL (90560300) 3018 RON
38 1 1 BRACKET (90561676) 190 RON
39 1 1 ROLLER (90560648) 2347 RON
40 1 2 COVER (90567335) 781 RON
41 1 2 WHEEL (90560001) 190 RON
42 1 1 BRACKET (90561653) 781 RON
43 1 1 CAP (90567226) 781 RON
44 1 1 HANDLE (90567331) 781 RON
45 1 2 SCREW (747329) 558 RON
46 1 1 BRACKET (90561677) 893 RON
47 1 1 CAP (90567227) 781 RON
48 1 1 Washer Lock (90579431) 558 RON
49 1 1 LEVER (90562576) 2347 RON
50 1 1 Washer Lock (90579432) 558 RON
51 1 1 LEVER (90567592) 3466 RON
51 1 1 90567592-01 - Indisponibil
51 1 1 LEVER (90567592-02) 2796 RON
52 1 1 COVER (90565736) 190 RON
53 1 1 HOUSING (90577338) 12861 RON
54 1 1 HOUSING UPPER (90565496) 9282 RON
55 1 1 SPINDLE (90561652) 2347 RON
56 1 2 WING NUT (90570279) 893 RON
56 1 2 WING NUT (90570279-01) 893 RON
57 1 2 BOLT (90570805) 558 RON
58 1 1 SPRING (90569681) 105 RON
63 1 2 PAD (90561984) 1117 RON
64 1 2 SPRING (90571573) 558 RON
65 1 1 BLADE (90560644-01) 5370 RON
65 1 1 BLADE (90560644) 4472 RON
66 1 1 BOLT (90516533) 558 RON
70 1 1 CABLE (90573705) 4472 RON
71 1 1 AXLE REAR (90561606) 2795 RON
72 1 2 WASHER (490624-00) 558 RON
73 1 1 SPRING (90570095) 558 RON
74 1 1 LEVER (90567408) 781 RON
75 1 1 PAD (90585848) 893 RON
