COSITOARE ROTATIVA BLACK+DECKER CLMA4820L2 Type 1
[CLMA4820L2 Type 1]
COSITOARE ROTATIVA BLACK+DECKER CLMA4820L2 Type 1
Click pentru a mari
Imagini suplimentare
COSITOARE ROTATIVA BLACK+DECKER CLMA4820L2 Type 1
Click pentru a mari
COSITOARE ROTATIVA BLACK+DECKER CLMA4820L2 Type 1
Click pentru a mari

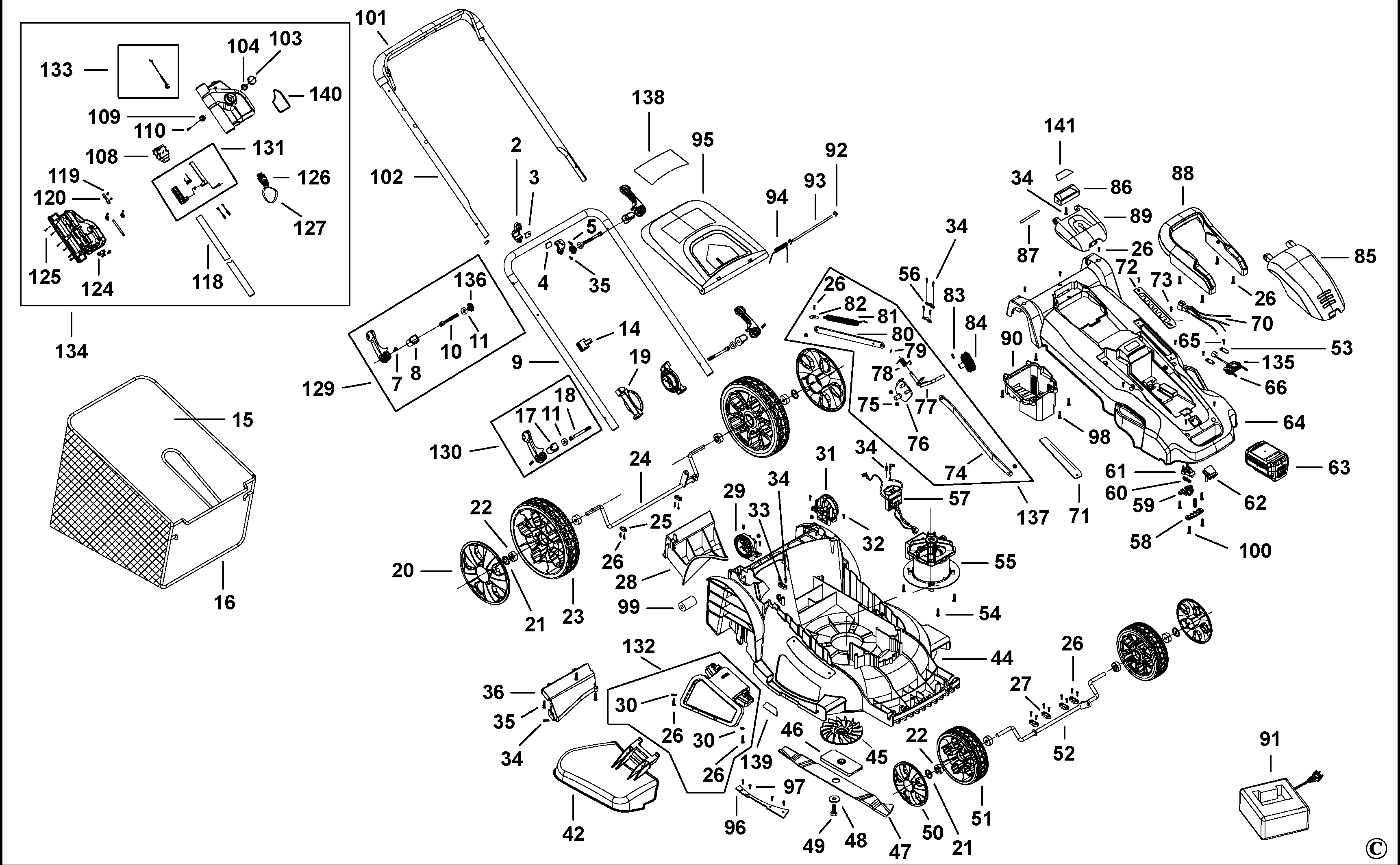

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
2 1 1 COVER (1004705-83) 588 RON
3 1 2 GASKET (1004705-84) 588 RON
4 1 1 COVER (1004705-85) 588 RON
5 1 1 SCREW (1004705-86) 588 RON
7 1 4 PIN (1004705-88) 588 RON
8 1 2 SEAT (1004705-89) 668 RON
9 1 1 LOWER HANDLE (1004705-90) 9012 RON
10 1 1 CONNECTING ROD (1004705-91) 944 RON
11 1 4 PAD (1004705-92) 588 RON
14 1 1 CABLE GUIDE (1004705-95) 588 RON
15 1 1 GRASSBAG (1004705-96) 20216 RON
16 1 1 FRAME (1004705-97) 11337 RON
17 1 2 SEAT (1004705-98) 588 RON
18 1 1 CONNECTING ROD (1004706-00) 82 RON
19 1 2 ADJUSTER (1004706-01) 1933 RON
20 1 2 COVER (1004706-02) 1772 RON
21 1 4 RETAINER (1004706-03) 588 RON
22 1 8 COLLAR (1004706-04) 588 RON
23 1 2 WHEEL REAR (1004706-05) 10241 RON
24 1 1 AXLE REAR (1004706-06) 6688 RON
25 1 2 RETAINING PLATE (1004706-07) 588 RON
26 1 32 SCREW (1004706-08) 588 RON
27 1 4 RETAINING PLATE (1004706-07) 588 RON
27 1 4 1004706-09 - Indisponibil
28 1 1 INSERT (1004706-10) 4827 RON
29 1 1 Gear (1004706-11) 2796 RON
30 1 2 WASHER (1004706-12) 588 RON
31 1 1 Gear (1004706-13) 2796 RON
32 1 4 SCREW (1004706-14) 588 RON
33 1 1 CORD CLAMP (1004706-15) 588 RON
34 1 9 SCREW (1004706-16) 588 RON
35 1 4 SCREW (1004706-17) 588 RON
36 1 1 GUIDE (1004706-18) 2556 RON
42 1 1 SIDE EXTRUSION (1004706-24) 5370 RON
44 1 1 HOUSING (1004706-26) 48037 RON
45 1 1 FAN (1004706-27) 2182 RON
46 1 1 PLATE LOCK (1004706-28) 2556 RON
47 1 1 BLADE (1004706-29) 10241 RON
48 1 1 WASHER (1004706-30) 944 RON
49 1 1 BOLT (1004706-31) 668 RON
50 1 2 COVER (1004706-32) 944 RON
51 1 2 WHEEL FRONT (1004706-33) 6688 RON
52 1 1 AXLE FRONT (1004706-34) 6688 RON
53 1 2 RETAINING PLATE (1004706-35) 588 RON
54 1 3 SCREW (1004706-36) 588 RON
55 1 1 MOTOR SA (1004706-37) 91363 RON
56 1 1 RETAINING PLATE (1004706-38) 588 RON
57 1 1 ELECTRONIC SA (1004706-39) 25728 RON
58 1 1 BLOCK (1004706-40) 588 RON
59 1 1 PLATE (1004706-41) 588 RON
60 1 1 SPRING (1004706-42) 588 RON
61 1 1 COVER (1004706-43) 588 RON
62 1 1 BUTTON (1004706-44) 588 RON
63 1 2 1004706-45 - Indisponibil
63 1 2 BATTERY 36V - 2.0AH - 72WH (N694215) 78485 RON
63 1 2 90624732 - Indisponibil
64 1 1 COVER-TOP (1004706-46) 24962 RON
65 1 4 SCREW (1004706-47) 588 RON
66 1 2 SPRING (1004706-48) 588 RON
70 1 1 CONNECTING WIRE (1004706-52) 2182 RON
71 1 1 SLEEVE (1004706-53) 82 RON
72 1 1 ADJUSTER PLATE (1004706-54) 2182 RON
73 1 2 SCREW (1004706-55) 588 RON
74 1 1 CONNECTING ROD (1004706-56) 2796 RON
75 1 4 NUT (1004706-57) 588 RON
76 1 1 SUPPORT PLATE (1004706-58) 3954 RON
77 1 1 LINK (1004706-59) 2182 RON
78 1 1 SPRING TORSION (1004706-60) 588 RON
79 1 1 COTTER PIN (1004706-61) 588 RON
80 1 1 CONNECTING ROD (1004706-62) 2796 RON
81 1 1 SPRING TORSION (1004706-63) 944 RON
82 1 1 WASHER (1004706-64) 668 RON
83 1 1 SCREW (1004706-65) 588 RON
84 1 1 ELEVATING HANDLE (1004706-66) 1630 RON
85 1 1 BATTERY COVER (1004706-67) 3268 RON
86 1 1 COVER (1004706-68) 82 RON
87 1 1 SHAFT (1004706-69) 668 RON
88 1 1 LOOP HANDLE (1004706-70) 4355 RON
89 1 1 BATTERY COVER (1004706-71) 2556 RON
90 1 1 PLASTIC INSERT (1004706-72) 3954 RON
91 1 1 1004706-77 - Indisponibil
91 1 1 CHARGER 36V (90616337-02) 44688 RON
92 1 2 CIRCLIP (1004706-74) 588 RON
93 1 1 SHAFT (1004706-75) 1630 RON
94 1 1 SPRING TORSION (1004706-83) 82 RON
95 1 1 COVER REAR (1004706-84) 5370 RON
96 1 1 PLATE (1004706-78) 1630 RON
97 1 4 SCREW (1004706-79) 588 RON
98 1 2 SCREW (1004706-80) 588 RON
99 1 1 CHOKE (1004706-81) 2182 RON
100 1 4 SCREW (1004706-82) 588 RON
101 1 1 FOAM (1004705-56) 1772 RON
102 1 1 HANDLE SA (1004705-57) 15469 RON
103 1 1 BUTTON (1004705-58) 588 RON
104 1 1 SPRING (1004705-59) 588 RON
108 1 1 SWITCH (1004705-63) 6688 RON
109 1 1 BOTTOM PLATE (1004705-64) 588 RON
110 1 1 SCREW (1004705-65) 588 RON
118 1 1 CABLE (1004705-73) 6688 RON
119 1 4 SCREW (1004705-74) 588 RON
120 1 1 GUIDE (1004705-75) 588 RON
124 1 1 CABLE CLAMP (1004705-79) 588 RON
125 1 8 SCREW (1004705-80) 588 RON
126 1 1 KEY (1004705-81) 2556 RON
127 1 1 STRAP (1004705-82) 944 RON
129 1 1 CLAMP SA (1004707-28) 3268 RON
130 1 1 CLAMP SA (1004707-29) 2796 RON
131 1 1 SWITCH LOCK-ON (1004707-34) 1630 RON
132 1 1 OUTLET (1004707-35) 3954 RON
133 1 1 CABLE SA (1004707-36) 1933 RON
134 1 1 SWITCH SA (1004707-37) 20216 RON
135 1 1 BATTERY CONNECTOR (1004707-38) 6688 RON
136 1 1 LOCK KNOB (1004707-39) 3268 RON
137 1 1 ADJUSTER HEIGHT (1004707-40) 12361 RON
138 1 1 RATING PLATE (1004705-77) 944 RON
139 1 1 LABEL (1004707-82) 588 RON
140 1 1 LABEL (1004707-83) 588 RON
141 1 1 LABEL (1004707-84) 588 RON
