Top » Piese de schimb » PIESE BLACK & DECKER » P3910 Type 1

CIRC. SAW BLACK+DECKER P3910 Type 1
[P3910 Type 1]
CIRC. SAW BLACK+DECKER P3910 Type 1
Click pentru a mari
Imagini suplimentare
CIRC. SAW BLACK+DECKER P3910 Type 1
Click pentru a mari

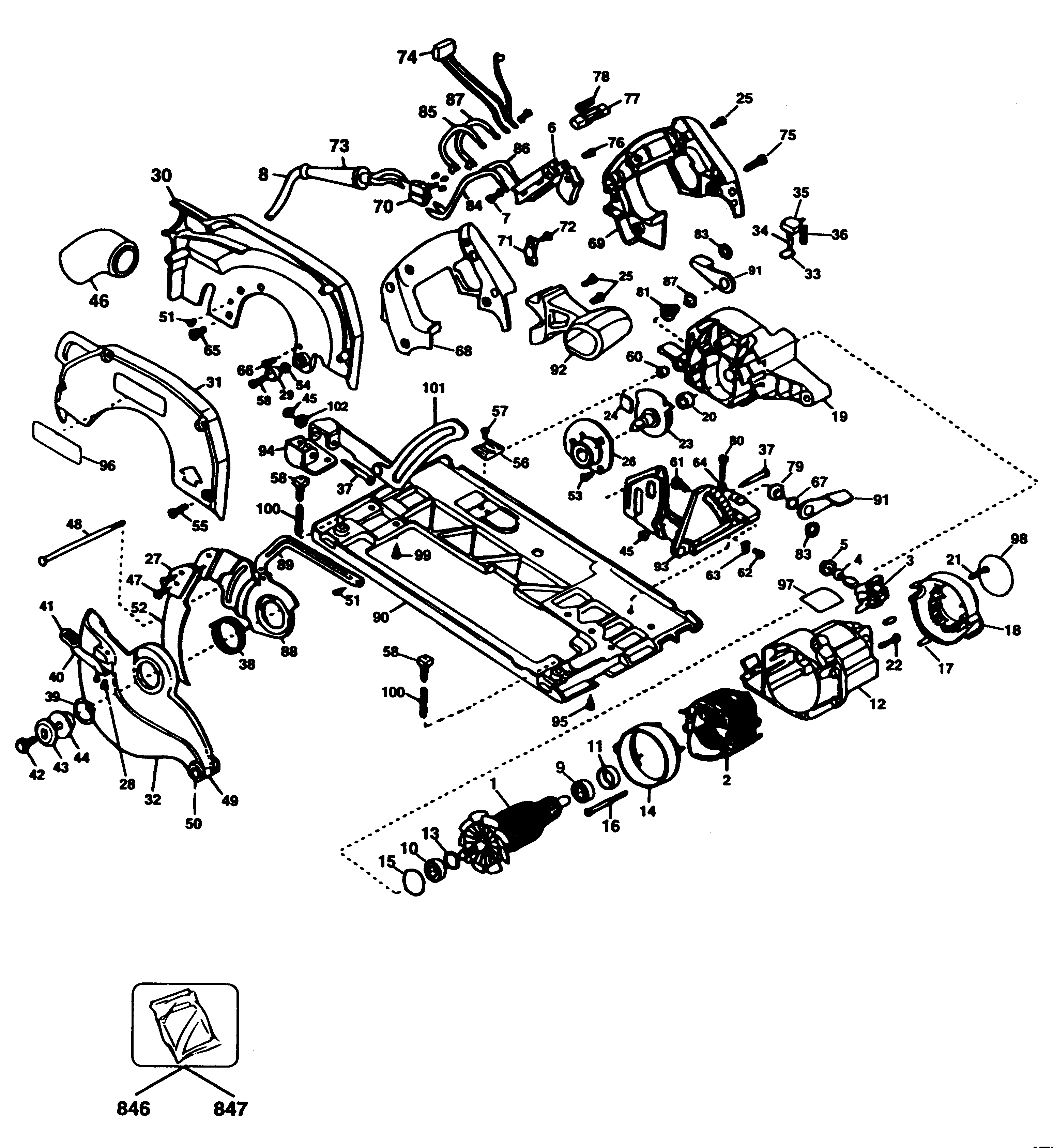

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 144785-04 - Indisponibil
1 1 1 144785-03 - Indisponibil
1 1 1 144785-11 - Indisponibil
1 1 1 ARMATURE & FAN (144785-10SV) 51337 RON
1 1 1 ARMATURE (144785-10) 51337 RON
2 1 1 SA FIELD G89 BULK PACKED (SUBA) (N078042) 32770 RON
2 1 1 SA FIELD G89 PACKED (SERVICE) (N113577) 26730 RON
2 1 1 144798-03 - Indisponibil
2 1 1 FIELD SA (N078042SV) 46863 RON
2 1 1 FIELD (144798-02) 20467 RON
2 1 1 FIELD (144798-01) 22144 RON
3 1 2 147097-03 - Indisponibil
3 1 2 BRUSH HOLDER SA (147097-09) 10512 RON
3 1 2 BRUSH & HOLDER (147097-07) 7940 RON
4 1 2 BRUSH & SPRING *BK24* (145323-01) 4137 RON
5 1 2 BRUSH CAP (448084-01) 781 RON
6 1 1 SWITCH (450777-03) 12861 RON
6 1 1 SWITCH KIT (429981-00) 10512 RON
7 1 4 SCREW TERMINAL (791707-00) 558 RON
7 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
8 1 1 CORDSET QS 3600PCP (N571221) 10241 RON
8 1 1 CORD POWER SUPPLY GB 4200 (330060-44) 14315 RON
8 1 1 CORDSET QS 4200PCP (324438-86) 10512 RON
8 1 1 CORDSET QS 4200PCP (324438-10) 9282 RON
8 1 1 330061-03 - Indisponibil
9 1 1 BEARING BALL (330003-09) 2795 RON
9 1 1 Ball Brg (605040-20) 2182 RON
10 1 1 BEARING 6202 (868768-07) 4137 RON
10 1 1 BEARING BALL (330003-13) 4137 RON
11 1 1 SLEEVE (137382-00) 781 RON
12 1 1 144945-00 - Indisponibil
13 1 1 SEAL RING (144803-00) 781 RON
14 1 1 BAFFLE FAN (145301-00) 1229 RON
15 1 1 SEAL (701297-00) 558 RON
16 1 2 SCREW PLASTITE (330019-19) 781 RON
17 1 2 PIN (87205-00) 558 RON
18 1 1 145322-00 - Indisponibil
19 1 1 145357-01 - Indisponibil
20 1 1 BEARING NEEDLE (330004-06) 1452 RON
21 1 2 SCREW .TEMP (330019-20) 558 RON
22 1 4 SCREW TEMP (330045-19) 558 RON
23 1 1 AXLE & SPINDLE (145353-09) 3592 RON
24 1 1 SEAL (147194-00) 2347 RON
25 1 6 SCREW (330019-14) 558 RON
26 1 1 GEAR CASE COVER (145393-00) 14315 RON
27 1 1 148241-00 - Indisponibil
27 1 1 LOCK KNIFE PLATE MH286 (148241-01) 3018 RON
28 1 2 SCREW.TEMP (330045-05) 558 RON
29 1 1 BUMPER (145375-02) 558 RON
30 1 1 148977-05 - Indisponibil
31 1 1 148978-05 - Indisponibil
32 1 1 147050-00 - Indisponibil
33 1 1 WIPER (145351-00) 558 RON
34 1 1 LEVER (145448-00) 1452 RON
35 1 1 BUTTON (145350-00) 558 RON
36 1 1 SPRING (150466-00) 558 RON
37 1 2 SCREW SPECIAL (145345-00) 781 RON
37 1 2 SCREW (396631-00) 558 RON
38 1 1 SPRING (93314-00) 893 RON
39 1 1 RING (541351-00) 558 RON
39 1 1 RETAINER DW007K (388496-00) 893 RON
40 1 1 LEVER (147055-00) 23598 RON
41 1 1 CAP (148240-00) 893 RON
42 1 1 SCREW SPECIAL (145344-00) 781 RON
43 1 1 WASHER OUTER CLAMP (145446-00) 105 RON
44 1 1 WASHER INNER CLAMP (145442-00) 2124 RON
44 1 1 WASHER INNER CLAMP (145442-03) 2795 RON
45 1 2 LOCK NUT (148641-00) 558 RON
46 1 1 BUSH MH/DW86 (148242-00) 1452 RON
47 1 2 SCREW.TEMP (98113-12) 558 RON
48 1 1 CARRIAGE BOLT (98128-91) 893 RON
49 1 2 147061-00 - Indisponibil
50 1 2 BLOCK PLATE (148460-00) 558 RON
51 1 2 SCREW M3X4 (148757-00) 558 RON
52 1 1 147077-00 - Indisponibil
52 1 1 RIVING KNIFE (147077-01) 11519 RON
53 1 3 98102-13 - Indisponibil
54 1 1 SPACER (150246-00) 558 RON
55 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
56 1 1 KEY CLAMP (147190-00) 190 RON
57 1 2 98102-07 - Indisponibil
57 1 2 98102-10 - Indisponibil
57 1 2 SCREX TEMP (098102-10) 558 RON
58 1 2 259229-08 - Indisponibil
58 1 2 KNOB (942895-00) 1229 RON
58 1 2 SCREW WING M6*17 BLACK (326573-01) 781 RON
59 1 1 98096-19 - Indisponibil
60 1 1 SPACER (148455-00) 558 RON
61 1 1 SCREW.SPECIAL (98128-20) 558 RON
61 1 1 CARRIAGE BOLT (N022876) 558 RON
62 1 1 SCREW.TEMP (330045-04) 558 RON
62 1 1 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
63 1 1 POINTER (145341-00) 558 RON
64 1 1 NUT (330015-04) 558 RON
65 1 2 SCREW (330045-23) 781 RON
66 1 1 SCREW.TEMP (330045-25) 558 RON
67 1 2 145337-00 - Indisponibil
67 1 2 WASHER (152014-00) 781 RON
68 1 1 144943-01 - Indisponibil
69 1 1 144944-01 - Indisponibil
70 1 1 BLOCK TERMINAL (320078-00) 1452 RON
71 1 1 CORD CLAMP (003618-00) 558 RON
71 1 1 3618-00 - Indisponibil
72 1 2 SCREW.TEMP (148461-00) 558 RON
73 1 1 CORD PROTECTOR (445338-00) 1229 RON
73 1 1 CORD PROTECTOR (330005-02) 1117 RON
74 1 1 CAPACITOR (148679-02) 4472 RON
75 1 3 SCREW.PLSTC THD FORM M5X32 T25 (330019-21) 558 RON
76 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
77 1 1 145401-00 - Indisponibil
78 1 1 SPRING (21286-00) 558 RON
79 1 1 145338-00 - Indisponibil
79 1 1 NUT (152015-02) 1117 RON
80 1 1 98004-20 - Indisponibil
80 1 1 SCREW.TEMP (098004-36) 558 RON
81 1 1 145338-01 - Indisponibil
81 1 1 NUT (152015-03) 1117 RON
83 1 2 145339-00 - Indisponibil
83 1 2 RING (152211-00) 558 RON
85 1 1 LEAD SA (145370-00) 1117 RON
86 1 1 LEAD SA (149005-00) 781 RON
87 1 1 LEAD SA (145374-00) 893 RON
88 1 1 150463-00 - Indisponibil
89 1 1 SWINGING PROTECT.LEVER DW86 (147081-00) 6821 RON
90 1 1 145430-03 - Indisponibil
90 1 1 145430-00 - Indisponibil
91 1 2 LEVER (145347-00) 105 RON
93 1 1 QUADRANT DW 86 (151309-00) 15993 RON
94 1 1 HELDER FIX (148188-00) 23598 RON
95 1 4 98102-07 - Indisponibil
95 1 4 98102-10 - Indisponibil
95 1 4 SCREX TEMP (098102-10) 558 RON
96 1 1 149179-00 - Indisponibil
97 1 1 149008-00 - Indisponibil
97 1 1 149008-01 - Indisponibil
97 1 1 149008-02 - Indisponibil
98 1 1 147094-00 - Indisponibil
99 1 2 98102-08 - Indisponibil
99 1 2 SCREW.TEMP (098102-08) 558 RON
100 1 2 SPRING (448136-00) 1117 RON
101 1 1 BRACKET (151310-00) 22144 RON
101 1 1 BRACKET (868190-00) 23598 RON
102 1 1 98197-04 - Indisponibil
800 1 1 761995-00 - Indisponibil
800 1 1 GREASE TUBE 100ML RENOLIT PARAGON EP (870889-02) 4472 RON
800 1 1 GREASE (761995-01) 23598 RON
846 1 1 WRENCH (145378-02) 1229 RON
846 1 1 WRENCH (145378-01) 1452 RON
847 1 1 147071-01 - Indisponibil
847 1 1 147071-00 - Indisponibil
