Top » Piese de schimb » PIESE BLACK & DECKER » CD70CKA Type 1

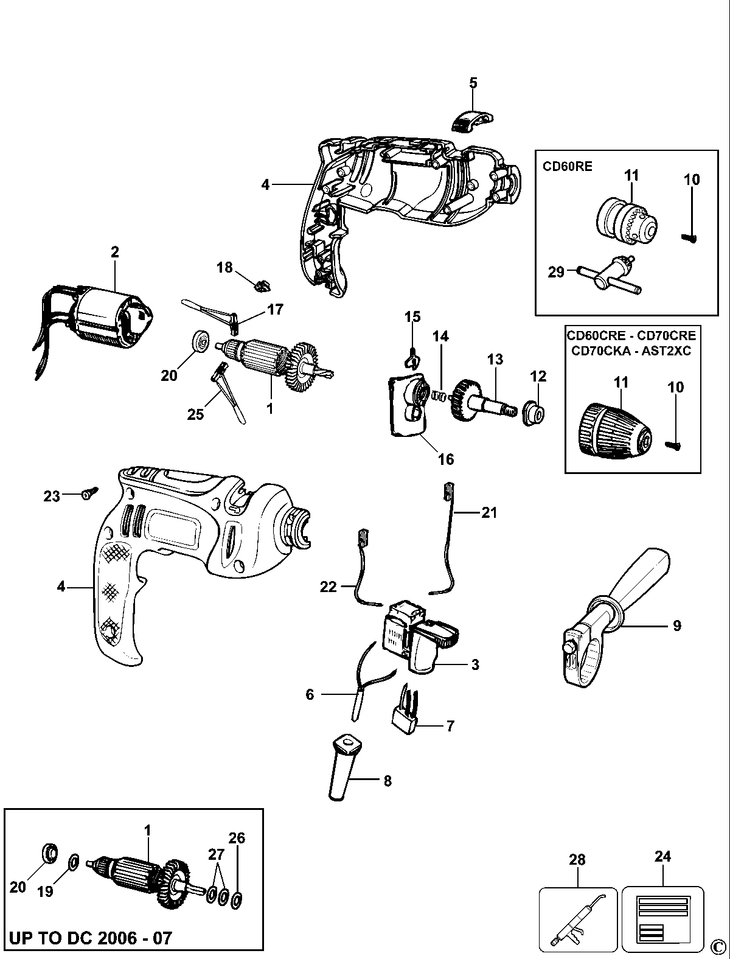

CD70CKA DRILL Type 1
[CD70CKA Type 1]
CD70CKA DRILL Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (585512-00) 14315 RON
1 1 1 ARMATURE 230V (492159-00) 17335 RON
2 1 1 FIELD SA (585511-00) 7940 RON
3 1 1 SWITCH SA (586473-00) 7940 RON
4 1 1 CLAMSHELL SET (585508-00) 5591 RON
4 1 1 CLAMSHELL (585508-02) 6821 RON
5 1 1 ACTUATOR (375164-02) 558 RON
6 1 1 CORDSET (330060-76) 4137 RON
7 1 1 CAPACITOR (579302-01) 781 RON
8 1 1 CORD PROTECTOR (770235) 558 RON
9 1 1 SA SIDE HANDLE (376556-14) 2347 RON
10 1 1 Screw M5X18 (805434) 558 RON
11 1 1 CHUCK KEYLESS 13MM 2 SLEEVE 3/8 THREAD cod vechi 586589-00 (586589-00L) 11519 RON
12 1 1 SLEEVE BEARING (574297-00) 781 RON
13 1 1 SPINDLE SA (581863-01) 4472 RON
14 1 1 SPRING (821986) 558 RON
15 1 1 THRUST PLATE (375156-00) 558 RON
16 1 1 629984-00OUSING (581860-01) 3466 RON
17 1 1 BRUSHBOX CHOKE (587211-00) 2347 RON
18 1 2 BRUSH BOX HOLDER (875735) 558 RON
19 1 1 WASHER (051407-00) 558 RON
20 1 1 BEARING (574853-08) 1117 RON
20 1 1 BEARING BUSH (158478-00) 105 RON
21 1 1 LEADWIRE (581862-01) 1117 RON
22 1 1 LEADWIRE (581862-00) 1117 RON
23 1 7 SCREW (747329) 558 RON
24 1 1 RATING PLATE (587016-01) 781 RON
25 1 1 BRUSHBOX CHOKE (587211-01) 2347 RON
26 1 1 WASHER SPRING (157315-00) 558 RON
27 1 2 WASHER FIBRE (037381-00) 558 RON
28 1 1 GREASE SACHET 20G RENOLIT PARAGON EP 1 (870889-03) 3018 RON
