CD105 SMALL ANGLE GRINDER Type 2
[CD105 Type 2]
CD105 SMALL ANGLE GRINDER Type 2
Click pentru a mari

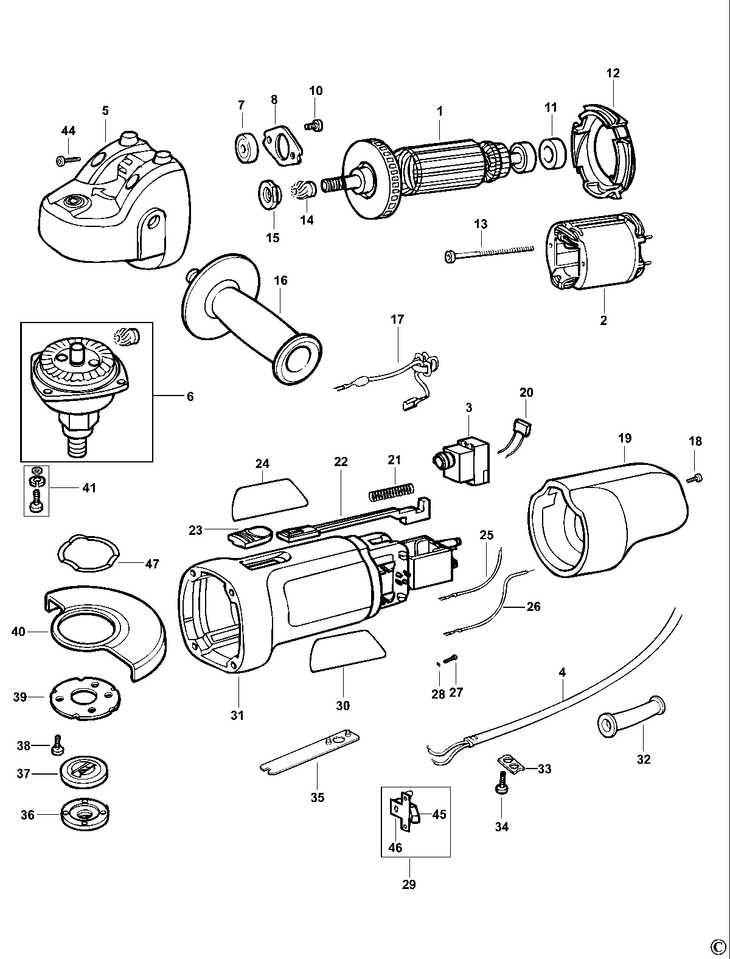

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 ARMATURE SA (569157-00) 11519 RON
2 1 1 FIELD SA (569158-00) 4472 RON
3 1 1 SWITCH SA (569159-00) 2347 RON
4 1 1 CORDSET GB (569160-00) 4472 RON
5 1 1 GEARCASE SA (569164-00) 5591 RON
6 1 1 SPINDLE SA (569165-00) 9282 RON
7 1 1 BEARING (569167-00) 1788 RON
8 1 1 COVERPLATE (569168-00) 558 RON
10 1 2 SCREW (569170-00) 558 RON
11 1 1 COVER BEARING cod alternativ N101909 (569171-00) 558 RON
12 1 1 BAFFLE (569172-00) 558 RON
13 1 2 SCREW (569173-00) 558 RON
14 1 1 PINION (569174-00) 190 RON
15 1 1 NUT (569175-00) 558 RON
16 1 1 HANDLE SA (569176-00) 781 RON
17 1 2 LEAD SA (569177-00) 105 RON
18 1 1 SCREW (569178-00) 558 RON
19 1 1 COVER (569179-00) 190 RON
20 1 1 CAPACITOR (569180-00) 105 RON
21 1 1 SPRING (569181-00) 558 RON
22 1 1 ROD (569182-00) 781 RON
23 1 1 KNOB (569183-00) 558 RON
24 1 1 LABEL (569184-00) 781 RON
25 1 1 LEAD 90MM (569186-00) 781 RON
26 1 1 LEAD 120MM BLACK (569187-00) 781 RON
27 1 4 SCREW (569188-00) 558 RON
28 1 4 WASHER (569189-00) 558 RON
29 1 2 BRUSHBOX BRUSH 230V SA ( cod vechi 596448-00 ) (569190-00) 1117 RON
30 1 1 LABEL (569191-00) 558 RON
31 1 1 FIELDCASE (569193-00) 3466 RON
32 1 1 PROTECTOR (569194-00) 781 RON
33 1 1 CABLE CLAMP (569195-00) 558 RON
34 1 2 SCREW (569196-00) 558 RON
35 1 1 SPANNER (569197-00) 105 RON
36 1 1 OUTER FLANGE (569198-00) 105 RON
37 1 1 INNER FLANGE (569200-00) 105 RON
38 1 3 SCREW (569202-00) 558 RON
39 1 1 FLANGE (569203-00) 781 RON
40 1 1 GUARD (569204-00) 190 RON
41 1 4 SCREW (569206-00) 558 RON
44 1 4 SCREW (569209-00) 558 RON
45 1 2 BRUSH 230V SA KG900 (596071-00) 893 RON
46 1 2 BRUSHBOX (596072-00) 781 RON
47 1 1 WASHER THRUST (1004515-22) 781 RON
