Top » Piese de schimb » PIESE BLACK & DECKER » BD365 Type 1

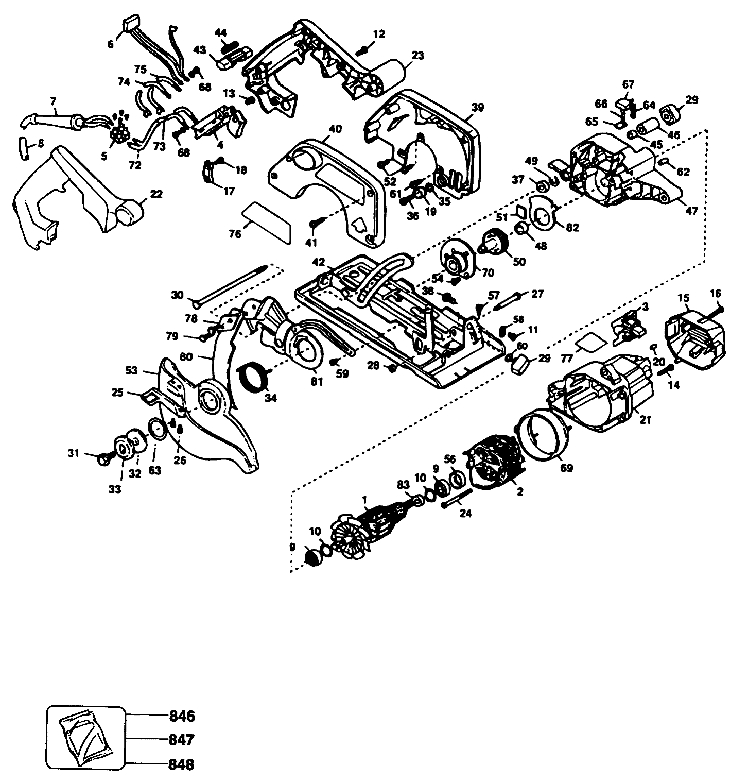

BD365 CIRC. SAW Type 1
[BD365 Type 1]
BD365 CIRC. SAW Type 1
Click pentru a mari
LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
2 1 1 000000-00 - Indisponibil
3 1 2 000000-00 - Indisponibil
4 1 1 SWITCH KIT (429981-00) 10512 RON
5 1 1 BLOCK TERMINAL (320078-00) 1452 RON
6 1 1 CAPACITOR (148679-02) 4472 RON
7 1 1 PROTECTOR CORD (330005-01) 105 RON
9 1 2 BEARING BALL (330003-09) 2795 RON
10 1 2 RING RET.EXT. (400677-00) 558 RON
11 1 1 SCREW.TEMP (330045-04) 558 RON
12 1 7 SCREW (330019-14) 558 RON
13 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
14 1 4 SCREW TEMP (330045-19) 558 RON
17 1 1 CORD CLAMP (3618-00) 558 RON
18 1 2 SCREW.TEMP (148461-00) 558 RON
19 1 1 BUMPER (145375-02) 558 RON
20 1 2 PIN (87205-00) 558 RON
24 1 2 000000-00 - Indisponibil
25 1 1 000000-00 - Indisponibil
26 1 2 SCREW.TEMP (330045-05) 558 RON
27 1 1 SCREW (396631-00) 558 RON
28 1 1 LOCK NUT (148641-00) 558 RON
29 1 2 SA KNOB (395889-00) 781 RON
31 1 1 SCREW SPECIAL (145344-00) 781 RON
32 1 1 000000-00 - Indisponibil
33 1 1 WASHER OUTER CLAMP (145446-00) 105 RON
34 1 1 SPRING (93314-00) 893 RON
35 1 1 SPACER (150246-00) 558 RON
36 1 1 000000-00 - Indisponibil
37 1 1 SPACER (148455-00) 558 RON
38 1 1 CARRIAGE BOLT (N022876) 558 RON
39 1 1 000000-00 - Indisponibil
40 1 1 000000-00 - Indisponibil
41 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
43 1 1 000000-00 - Indisponibil
44 1 1 SPRING (21286-00) 558 RON
45 1 1 SPACER (150462-00) 558 RON
46 1 1 000000-00 - Indisponibil
48 1 1 000000-00 - Indisponibil
50 1 1 000000-00 - Indisponibil
51 1 1 SEAL (147194-00) 2347 RON
52 1 2 SCREW (330045-23) 781 RON
53 1 1 000000-00 - Indisponibil
54 1 3 SCREW.TEMP (98102-13) 558 RON
56 1 1 000000-00 - Indisponibil
57 1 1 000000-00 - Indisponibil
58 1 1 POINTER (145341-00) 558 RON
59 1 1 SCREW M3X4 (148757-00) 558 RON
60 1 1 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
61 1 1 SCREW.TEMP (330045-25) 558 RON
62 1 1 RUBBER PLUG (145312-00) 558 RON
63 1 1 RETAINER DW007K (388496-00) 893 RON
64 1 1 SPRING (150466-00) 558 RON
65 1 1 WIPER (145351-00) 558 RON
66 1 1 LEVER (145349-00) 1117 RON
67 1 1 BUTTON (145350-00) 558 RON
68 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
69 1 1 BAFFLE FAN (145301-00) 1229 RON
73 1 1 LEAD SA (149005-00) 781 RON
74 1 1 000000-00 - Indisponibil
75 1 1 LEAD SA (145374-00) 893 RON
76 1 1 000000-00 - Indisponibil
78 1 1 000000-00 - Indisponibil
79 1 2 SCREW.TEMP (98113-12) 558 RON
80 1 1 000000-00 - Indisponibil
81 1 1 000000-00 - Indisponibil
82 1 1 000000-00 - Indisponibil
846 1 1 000000-00 - Indisponibil
848 1 1 000000-00 - Indisponibil
