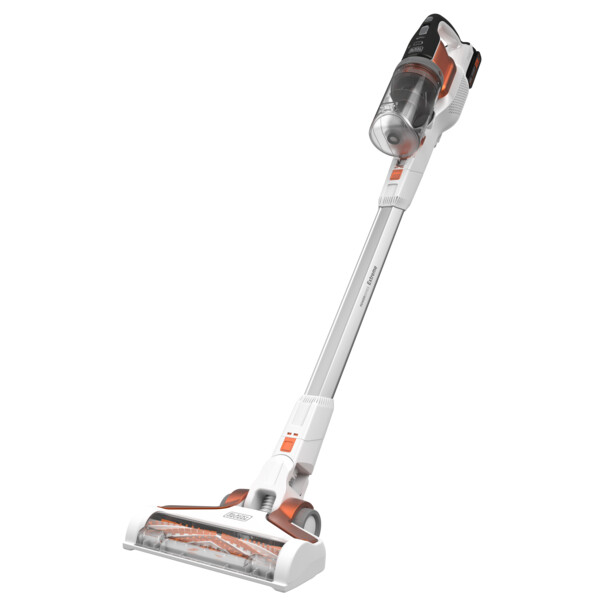

ASPIRATOR VERTICAL BLACK+DECKER BHFEV1825C Type H1
[BHFEV1825C Type H1]
ASPIRATOR VERTICAL BLACK+DECKER BHFEV1825C Type H1
Click pentru a mari
Imagini suplimentare
ASPIRATOR VERTICAL BLACK+DECKER BHFEV1825C Type H1
Click pentru a mari
ASPIRATOR VERTICAL BLACK+DECKER BHFEV1825C Type H1
Click pentru a mari

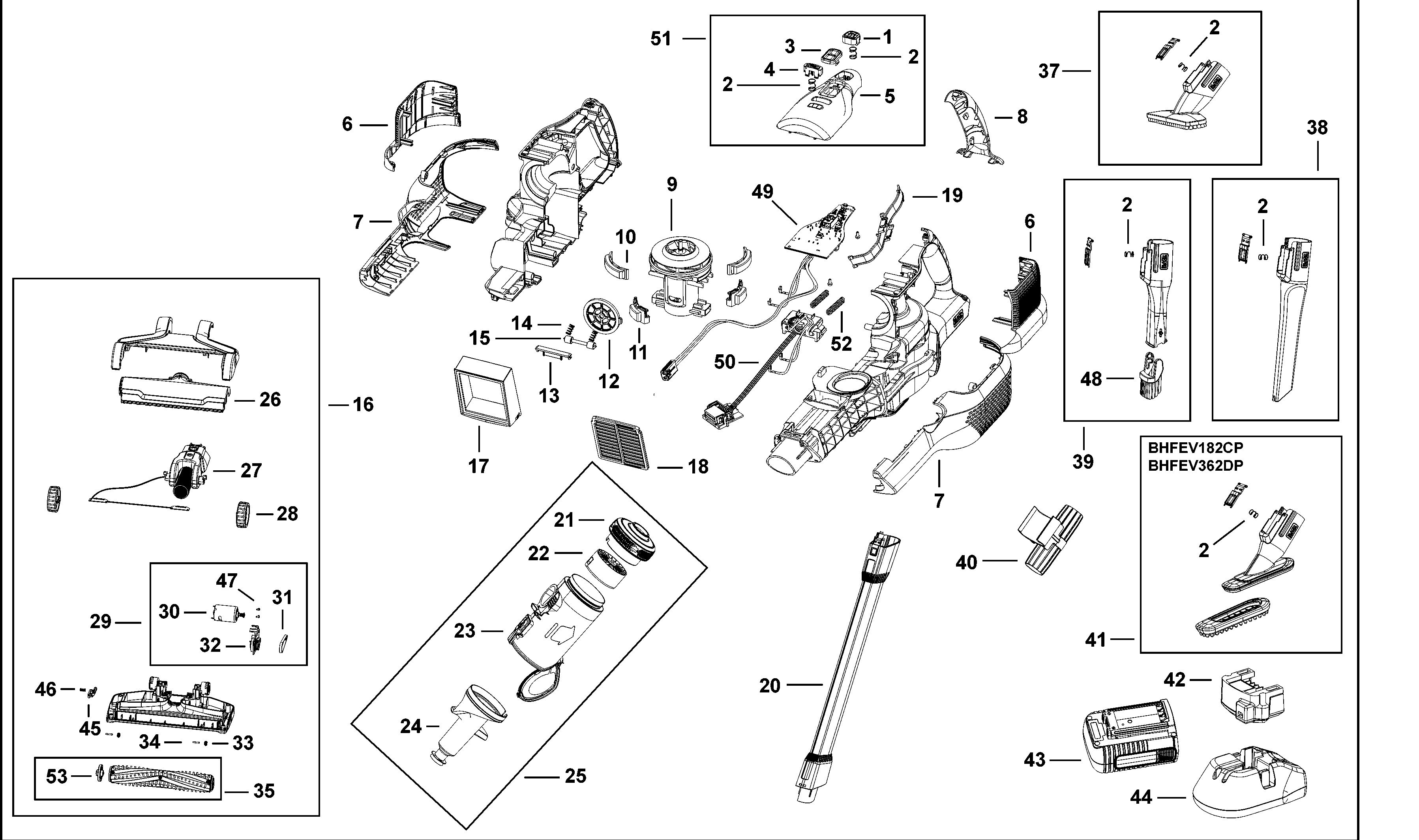

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BUTTON (N636423) 588 RON
2 1 4 SPRING (90627526) 588 RON
3 1 1 SLIDER (N636424) 588 RON
4 1 1 BUTTON (N636425) 588 RON
5 1 1 COVER (N619154) 1772 RON
6 1 1 COVER (N722849) 3268 RON
7 1 1 COVER (NA020490) 3268 RON
8 1 1 HANDLE COVER (N636426) 944 RON
9 1 1 MOTOR SA (N925319) 10241 RON
10 1 2 SUPPORT (N661053) 588 RON
11 1 2 SUPPORT (N653723) 588 RON
12 1 1 GUARD (N882084) 82 RON
13 1 1 COVER (N882083) 588 RON
14 1 2 SPRING (N601518) 588 RON
15 1 1 SHAFT (N655507) 1630 RON
16 1 1 FOOT SA (NA090558) 49114 RON
17 1 1 FRAME (N882085) 944 RON
18 1 1 GRILLE (N882082) 588 RON
19 1 1 CLIP CABLE (N645043) 668 RON
20 1 1 TUBE SA (NA020288) 24962 RON
21 1 1 CLEANING PAD (N925234) 3268 RON
22 1 1 FILTER (N665227) 3954 RON
23 1 1 BOWL (N924813) 741 RON
24 1 1 PRE-FILTER (N819343) 6688 RON
25 1 1 FILTER SA (N925366) 16689 RON
26 1 1 COVER (N599825) 2556 RON
27 1 1 HOSE (NA090372) 25728 RON
28 1 2 WHEEL (N890063) 1933 RON
29 1 1 MOTOR SA (N925334) 10241 RON
30 1 1 MOTOR & PINION (N925284) 12361 RON
31 1 1 BELT (N609679) 1318 RON
32 1 1 SUPPORT BRACKET (N924577) 2182 RON
33 1 2 WHEEL (N675938) 668 RON
34 1 2 DOWEL (90608269) 588 RON
35 1 1 ROLLER-BLUE BRISTLE (N925221) 741 RON
37 1 1 BRUSH (N764712) 3954 RON
38 1 1 TOOL CREVICE (N764710) 2796 RON
39 1 1 BRUSH (N764709) 3954 RON
40 1 1 HOLDER (N741930) 2556 RON
42 1 1 CHARGER SA (N494098) 13697 RON
43 1 1 BATTERY 18V - 2.5AH - 45WH (N763608) 46247 RON
44 1 1 MOUNTING BRACKET (NA130452) 4355 RON
45 1 1 RELEASE (NA020497) 588 RON
46 1 1 SPRING (N676836) 588 RON
47 1 2 SCREW (311940-01) 558 RON
48 1 1 BRUSH (N757182) 114 RON
49 1 1 PCB SA (N925318) 21676 RON
50 1 1 CONNECTOR (N762274) 15469 RON
51 1 1 COVER SA (N925277) 1933 RON
52 1 2 SPRING (5100035-03) 558 RON
53 1 1 END CAP (N569821) 668 RON
