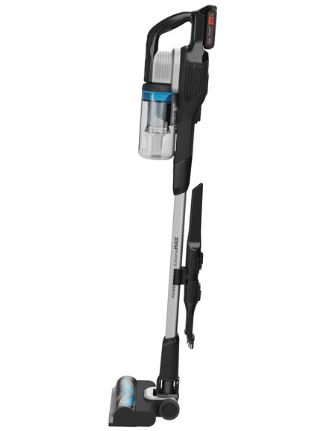

ASPIRATOR VERTICAL BLACK+DECKER BHFEB520D1 Type 1
[BHFEB520D1 Type 1]
ASPIRATOR VERTICAL BLACK+DECKER BHFEB520D1 Type 1
Click pentru a mari
Imagini suplimentare
ASPIRATOR VERTICAL BLACK+DECKER BHFEB520D1 Type 1
Click pentru a mari
ASPIRATOR VERTICAL BLACK+DECKER BHFEB520D1 Type 1
Click pentru a mari
ASPIRATOR VERTICAL BLACK+DECKER BHFEB520D1 Type 1
Click pentru a mari
ASPIRATOR VERTICAL BLACK+DECKER BHFEB520D1 Type 1
Click pentru a mari

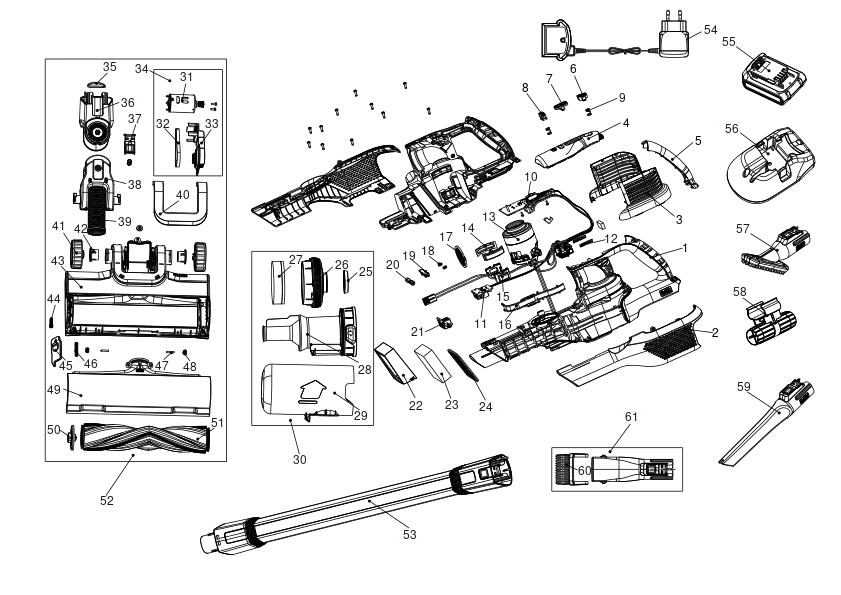

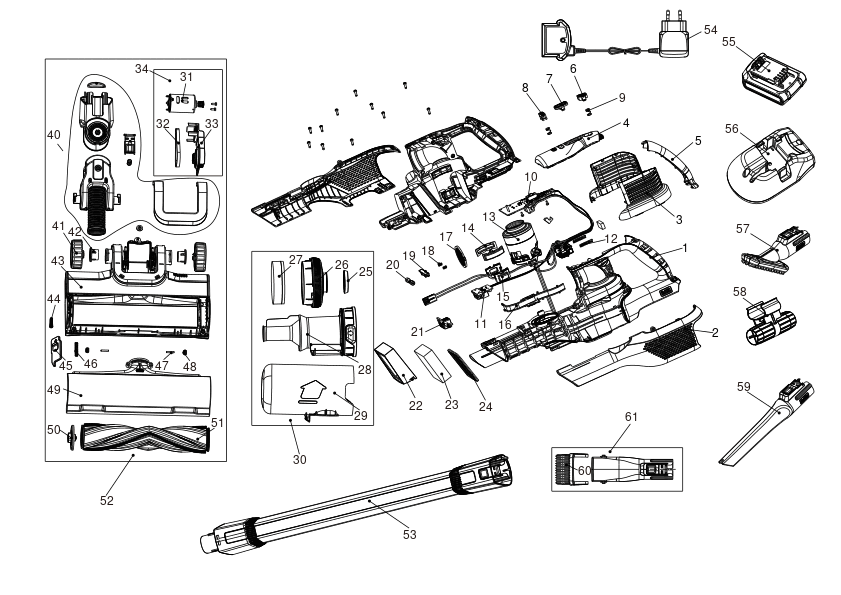

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (NA241286) 13697 RON
2 1 1 VENT (NA241294) 3268 RON
3 1 1 COVER SA (NA265496) 3954 RON
4 1 1 COVER (N619154) 1772 RON
5 1 1 HANDLE COVER (N636426) 944 RON
6 1 1 BUTTON (N636423) 588 RON
7 1 1 SLIDER (N636424) 588 RON
8 1 1 BUTTON (N636425) 588 RON
9 1 2 SPRING (90627526) 588 RON
10 1 1 PCB SA (N733131) 21676 RON
11 1 1 CONNECTOR (N762274) 15469 RON
12 1 1 SPRING (5100035-03) 558 RON
13 1 1 MOTOR SA (N925319) 10241 RON
14 1 1 SUPPORT (N661053) 588 RON
15 1 1 SUPPORT (N653723) 588 RON
16 1 1 CLIP CABLE (N645043) 668 RON
17 1 1 GUARD (N632578) 944 RON
18 1 1 SPRING (N601518) 588 RON
19 1 1 COVER (NA241314) 588 RON
20 1 1 SHAFT (N655507) 1630 RON
21 1 1 CONTACT (NA241312) 668 RON
22 1 1 FRAME (NA261361) 944 RON
23 1 1 FOAM (N632808) 588 RON
24 1 1 GRILLE (NA241313) 588 RON
25 1 1 SEAL (N664326) 588 RON
26 1 1 COVER-TOP (NA183796) 2796 RON
27 1 1 FOAM (NA184791) 3268 RON
28 1 1 FILTER SA (NA291817) 21676 RON
29 1 1 BOWL (NA180217) 741 RON
30 1 1 BOWL (NA291807) 33797 RON
31 1 1 MOTOR & PINION (NA291809) 12361 RON
32 1 1 BELT (NA092798) 1933 RON
33 1 1 MOUNT (NA291825) 6688 RON
34 1 1 MOTOR SA (NA291830) 20216 RON
35 1 1 PIVOT SA (NA304252) 23244 RON
40 1 1 COVER (NA186129) 3954 RON
41 1 2 WHEEL (N868261) 1630 RON
42 1 2 BUSHING (N640896) 588 RON
43 1 1 HOUSING (NA175153) 11337 RON
44 1 1 SPRING (NA241701) 588 RON
45 1 1 BUTTON (NA177558) 944 RON
46 1 1 SPRING (N867299) 588 RON
47 1 2 DOWEL (90608269) 588 RON
48 1 1 WHEEL (N675938) 668 RON
49 1 1 HOUSING & COVER (NA175156) 4355 RON
50 1 1 END CAP SA (NA291832) 2796 RON
51 1 1 ROLLER (NA174165) 21676 RON
52 1 1 HEAD SA (NA304915) 85494 RON
53 1 1 TUBE SA (NA241235) 20216 RON
54 1 1 CHARGER SA (N494099) 16689 RON
55 1 1 BATTERY 18V - 2.0AH - 36WH (N879820) 40734 RON
56 1 1 HOOK SA (NA304898) 5370 RON
57 1 1 PET HEAD (NA252826) 5370 RON
58 1 1 HOLDER (NA258509) 2556 RON
59 1 1 TOOL CREVICE (NA252824) 2182 RON
60 1 1 BRUSH SA (NA252822) 114 RON
61 1 1 TOOL CREVICE (NA252819) 2796 RON
