Top » Piese de schimb » PIESE BLACK & DECKER » BHFEA640WP Type 1

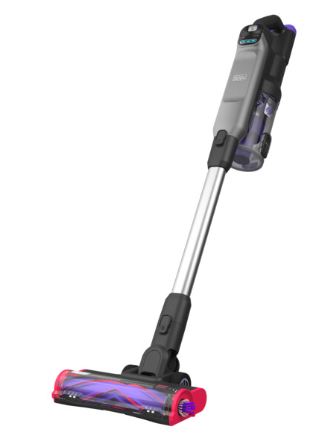

ASPIRATOR VERTICAL BLACK+DECKER BHFEA640WP Type 1
[BHFEA640WP Type 1]
ASPIRATOR VERTICAL BLACK+DECKER BHFEA640WP Type 1
Click pentru a mari
Imagini suplimentare
ASPIRATOR VERTICAL BLACK+DECKER BHFEA640WP Type 1
Click pentru a mari
ASPIRATOR VERTICAL BLACK+DECKER BHFEA640WP Type 1
Click pentru a mari

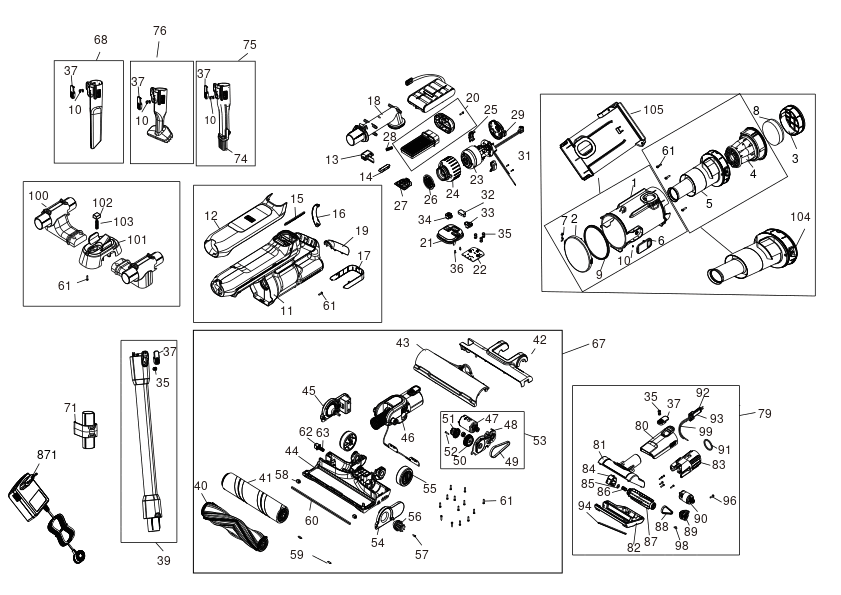

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BOWL (NA280953) 741 RON
2 1 1 DOOR (NA120310) 1933 RON
3 1 1 COVER (NA121444) 3268 RON
4 1 1 FILTER SA (NA304296) 741 RON
5 1 1 CONE (NA182993) 10241 RON
6 1 1 LATCH (NA142088) 944 RON
7 1 1 SPRING (NA301597) 588 RON
8 1 1 FOAM (NA184791) 3268 RON
9 1 1 O RING (NA140817) 114 RON
10 1 4 SPRING (90604592) 588 RON
11 1 1 HOUSING SA (NA092322) 18568 RON
12 1 1 COVER SA (NA093371) 741 RON
13 1 1 ACTUATOR (NA143028) 944 RON
14 1 1 LATCH (NA143016) 82 RON
15 1 1 VENT (NA209263) 668 RON
16 1 1 FAN COVER (NA209265) 82 RON
17 1 1 COVER (NA199109) 114 RON
18 1 1 TUBE (NA105796) 3954 RON
19 1 1 HANDLE COVER (NA093347) 2182 RON
20 1 1 FILTER SA (NA304637) 12361 RON
21 1 1 COVER (NA093346) 1933 RON
22 1 1 PCB SA (NA133025) 5370 RON
23 1 1 MOTOR SA (NA309705) 85494 RON
24 1 1 END CAP (NA093381) 2182 RON
25 1 2 SUPPORT (N653723) 588 RON
26 1 1 GUARD (N632578) 944 RON
27 1 1 COVER (NA135392) 2182 RON
28 1 1 SPRING (NA240809) 588 RON
31 1 3 SCREW (N688561) 588 RON
32 1 1 BUTTON (NA093349) 944 RON
33 1 1 BUTTON (NA093350) 944 RON
34 1 1 BUTTON (NA093351) 944 RON
35 1 3 SPRING (90627526) 588 RON
36 1 2 SCREW (419799-05) 558 RON
37 1 4 BUTTON (NA092793) 588 RON
39 1 1 TUBE SA (NA092319) 23244 RON
40 1 1 ROLLER (NA092806) 21676 RON
41 1 1 ROLLER (NA092780) 15469 RON
43 1 1 HOUSING & COVER (NA092324) 3954 RON
44 1 1 HOUSING SA (NA304663) 12361 RON
45 1 1 BAR SA (NA304643) 10241 RON
46 1 1 PIVOT SA (NA308705) 18568 RON
47 1 1 MOTOR & PINION (NA308713) 11337 RON
48 1 1 MOUNT (NA092796) 2182 RON
49 1 1 BELT (NA092798) 1933 RON
50 1 1 GEAR SA (NA304613) 3268 RON
51 1 1 Gear (NA096021) 114 RON
52 1 1 SCREW (NA321470) 588 RON
53 1 1 MOTOR SA (NA304667) 21676 RON
54 1 1 NA094304 - Indisponibil
54 1 1 PLATE (NA573469) 1772 RON
55 1 2 WHEEL (NA241042) 2556 RON
56 1 1 NA092785 - Indisponibil
56 1 1 BRUSH (NA553890) 1772 RON
57 1 2 NA259543 - Indisponibil
57 1 2 SCREW (NA555911) 588 RON
58 1 2 WHEEL (90605480) 588 RON
58 1 2 WHEEL (NA650038) 588 RON
59 1 2 DOWEL (90608269) 588 RON
60 1 1 STRIP (NA269436) 1933 RON
61 1 13 SCREW (143062-02) 558 RON
62 1 1 CONNECTOR (NA134382) 588 RON
63 1 1 SPRING (NA236284) 588 RON
67 1 1 FOOT SA (NA304899) 96047 RON
68 1 1 TOOL CREVICE (NA144963) 3268 RON
71 1 1 HOLDER (NA132857) 3268 RON
74 1 1 BRUSH (NA168577) 114 RON
75 1 1 BRUSH SA (NA141315) 3954 RON
76 1 1 BRUSH SA (NA141313) 4355 RON
79 1 1 PET HEAD (NA304945) 33797 RON
80 1 1 ADAPTOR (NA264699) 2556 RON
81 1 1 HOUSING UPPER (NA103320) 4827 RON
82 1 1 HOUSING LOWER (NA103347) 2796 RON
83 1 1 HOSE SA (NA264831) 2796 RON
84 1 1 END CAP SA (NA304301) 2182 RON
85 1 1 WASHER (5100556-00) 588 RON
86 1 1 SPRING (90604604) 588 RON
87 1 1 ROLLER (NA270328) 3268 RON
88 1 1 BELT (90534064) 1452 RON
89 1 1 DRIVER SA (NA310952) 3268 RON
90 1 1 MOTOR & PINION (NA304640) 741 RON
91 1 1 O RING (NA121435) 588 RON
92 1 1 BLOCK (NA129474) 668 RON
93 1 1 BLOCK (NA129477) 588 RON
94 1 1 STRIP (NA279191) 82 RON
96 1 5 SCREW (5119564-00) 558 RON
98 1 1 SPACER (5100571-00) 588 RON
99 1 1 WIRE (NA304641) 3954 RON
100 1 2 HOOK (NA133219) 2796 RON
101 1 1 CLAMSHELL (NA132861) 2556 RON
102 1 1 BUTTON (NA132850) 588 RON
103 1 1 SPRING (N492259) 588 RON
104 1 1 FILTER SA (NA367585) 18568 RON
105 1 1 BOWL (NB204842) 11337 RON
871 1 1 NA145438 - Indisponibil
