Top » Piese de schimb » PIESE BLACK & DECKER » BDPSE3615 Type H1

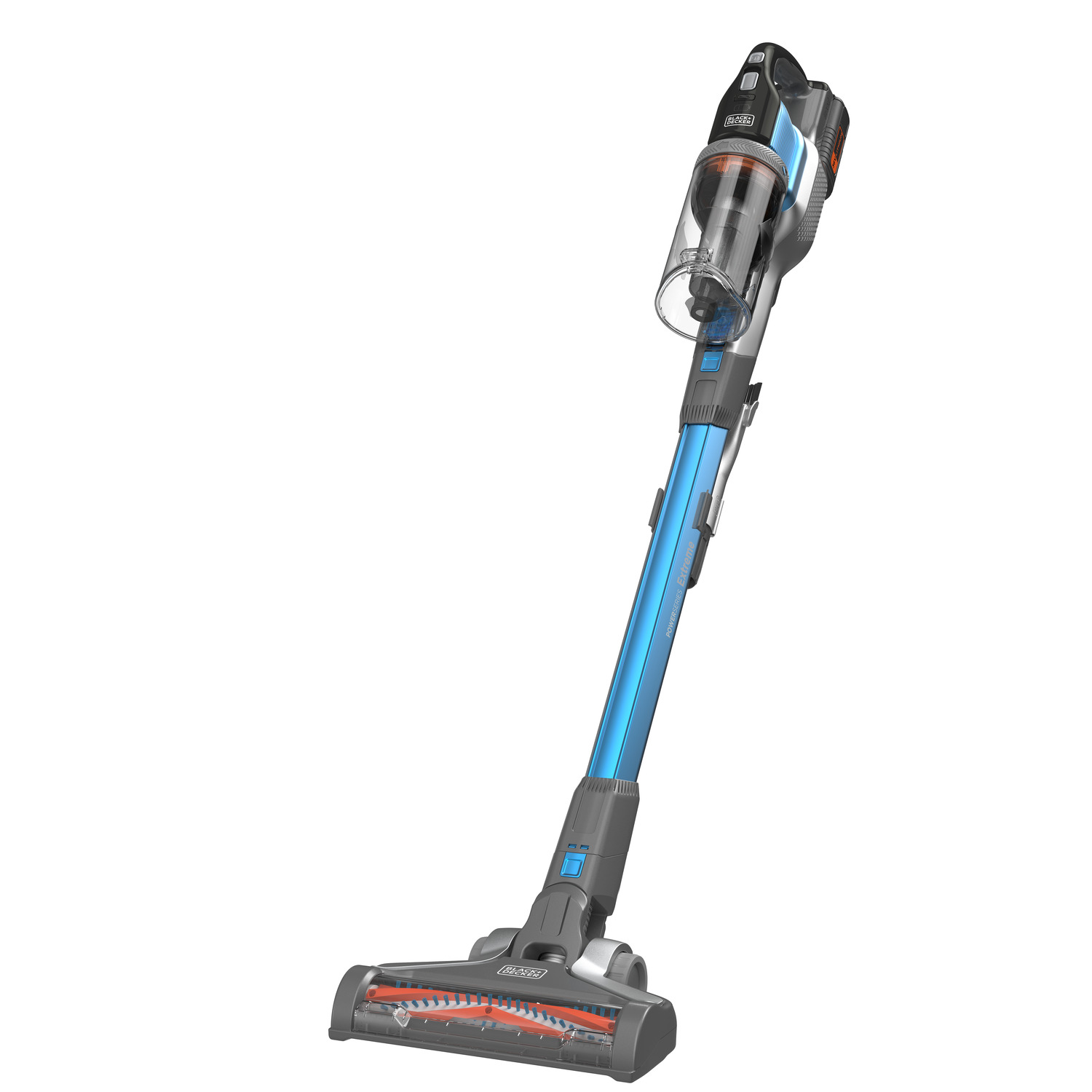

ASPIRATOR VERTICAL BLACK+DECKER BDPSE3615 Type H1
[BDPSE3615 Type H1]
ASPIRATOR VERTICAL BLACK+DECKER BDPSE3615 Type H1
Click pentru a mari
Imagini suplimentare
ASPIRATOR VERTICAL BLACK+DECKER BDPSE3615 Type H1
Click pentru a mari
ASPIRATOR VERTICAL BLACK+DECKER BDPSE3615 Type H1
Click pentru a mari

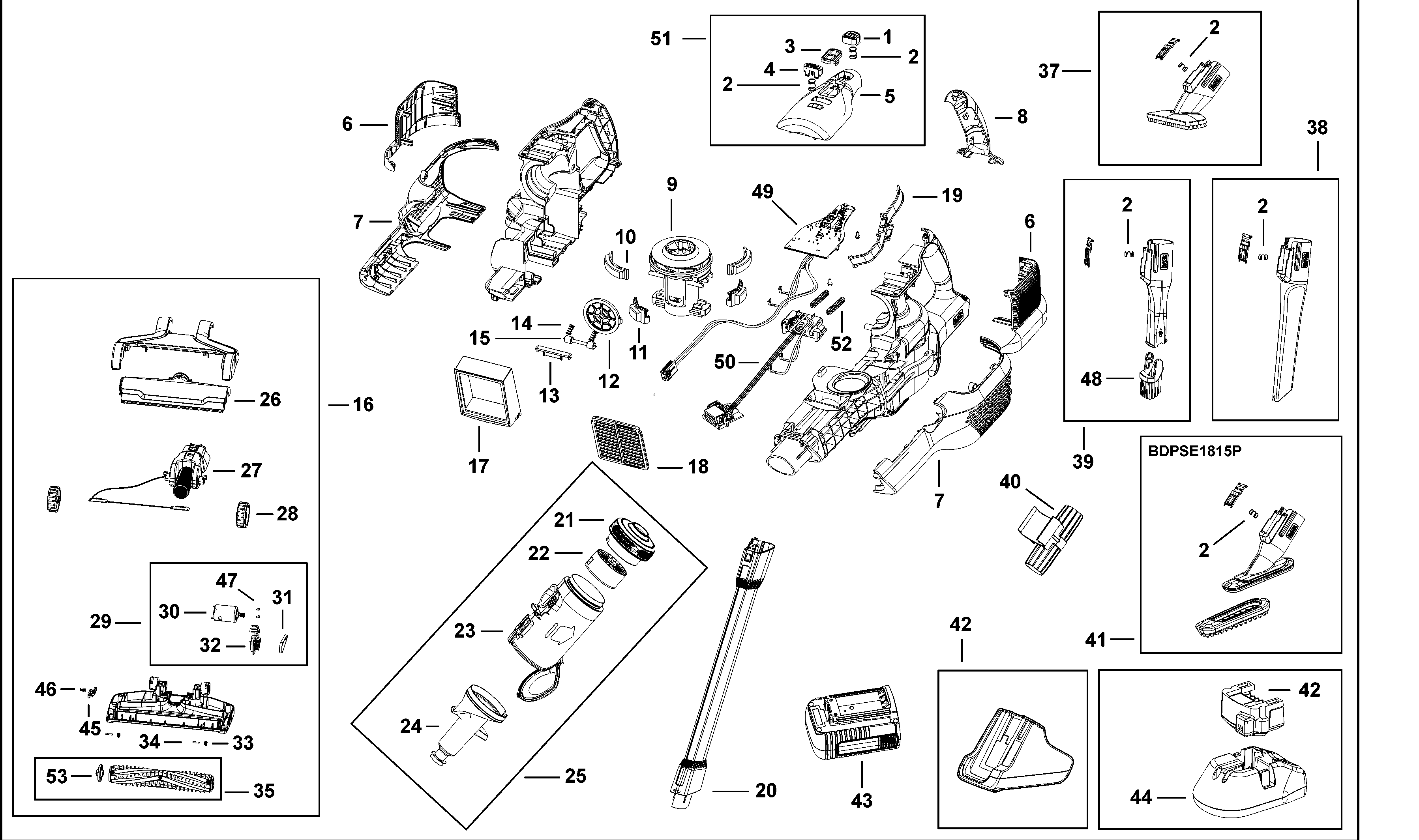

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 BUTTON (N636423) 588 RON
2 1 1 SPRING (90627526) 588 RON
3 1 1 SLIDER (N636424) 588 RON
4 1 1 BUTTON (N636425) 588 RON
5 1 1 COVER (N619154) 1772 RON
6 1 1 COVER (N722851) 3268 RON
7 1 1 COVER (N676905) 741 RON
8 1 1 HANDLE COVER (N652586) 944 RON
9 1 1 MOTOR SA (N925218) 11337 RON
9 1 1 N687536 - Indisponibil
10 1 2 SUPPORT (N661053) 588 RON
11 1 2 SUPPORT (N653723) 588 RON
12 1 1 GUARD (N632578) 944 RON
13 1 1 COVER (N681439) 588 RON
14 1 2 SPRING (N601518) 588 RON
15 1 1 SHAFT (N655507) 1630 RON
16 1 1 N819710 - Indisponibil
16 1 1 FOOT SA (N924914) 60451 RON
17 1 1 FRAME (N620175) 82 RON
18 1 1 GRILL (N663973) 588 RON
19 1 1 CLIP CABLE (N645043) 668 RON
20 1 1 TUBE SA (N687801) 23244 RON
21 1 1 N765293 - Indisponibil
21 1 1 CLEANING PAD (N925234) 3268 RON
22 1 1 FILTER (N665227) 3954 RON
23 1 1 N765297 - Indisponibil
23 1 1 BOWL (N925435) 5370 RON
24 1 1 N765299 - Indisponibil
24 1 1 PRE-FILTER (N925346) 12361 RON
25 1 1 N765318 - Indisponibil
25 1 1 FILTER SA (N925273) 23244 RON
26 1 1 COVER (N783828) 2556 RON
27 1 1 HOSE (N925348) 12361 RON
27 1 1 N765670 - Indisponibil
28 1 2 WHEEL (N639443) 1630 RON
29 1 1 MOTOR SA (N925394) 15469 RON
29 1 1 N765664 - Indisponibil
30 1 1 N687513 - Indisponibil
30 1 1 MOTOR AND PINION (N924808) 12361 RON
31 1 1 BELT (N609679) 1318 RON
32 1 1 N765667 - Indisponibil
32 1 1 SUPPORT BRACKET (N924577) 2182 RON
33 1 2 WHEEL (N675938) 668 RON
34 1 2 DOWEL (90608269) 588 RON
35 1 1 ROLLER-BLUE BRISTLE (N925221) 741 RON
35 1 1 N764706 - Indisponibil
35 1 1 N764705 - Indisponibil
35 1 1 ROLLER (N924812) 741 RON
37 1 1 BRUSH (N764712) 3954 RON
38 1 1 TOOL CREVICE (N764710) 2796 RON
39 1 1 BRUSH (N764709) 3954 RON
40 1 1 HOLDER (N741930) 2556 RON
41 1 1 000000-04 - Indisponibil
42 1 1 CHARGER 36V (90616337-01) 27287 RON
42 1 1 CHARGER SA (N689726) 33797 RON
42 1 1 CHARGER SA (90634971) 23244 RON
43 1 1 90625595 - Indisponibil
43 1 1 000000-99 - Indisponibil
43 1 1 BATTERY 36V - 2.0AH - 72WH (N886309) 113822 RON
44 1 1 000000-04 - Indisponibil
44 1 1 N687557 - Indisponibil
44 1 1 MOUNTING BRACKET (N925205) 3954 RON
44 1 1 MOUNTING BRACKET (N925314) 2796 RON
45 1 1 RELEASE (N573719) 588 RON
46 1 1 SPRING (N676836) 588 RON
47 1 2 SCREW (311940-01) 558 RON
48 1 1 BRUSH (N757182) 114 RON
49 1 1 N765675 - Indisponibil
49 1 1 PCB SA (N924714) 24962 RON
50 1 1 CONNECTOR (N657564) 21676 RON
51 1 1 COVER SA (N925277) 1933 RON
52 1 2 SPRING (5100035-03) 558 RON
53 1 1 END CAP (N569821) 668 RON
800 1 1 FOAM (N632808) 588 RON
