Top » Piese de schimb » PIESE BLACK & DECKER » VN2000 Type 1

ASPIRATOR BLACK+DECKER VN2000 Type 1
[VN2000 Type 1]
ASPIRATOR BLACK+DECKER VN2000 Type 1
Click pentru a mari
Imagini suplimentare
ASPIRATOR BLACK+DECKER VN2000 Type 1
Click pentru a mari
ASPIRATOR BLACK+DECKER VN2000 Type 1
Click pentru a mari

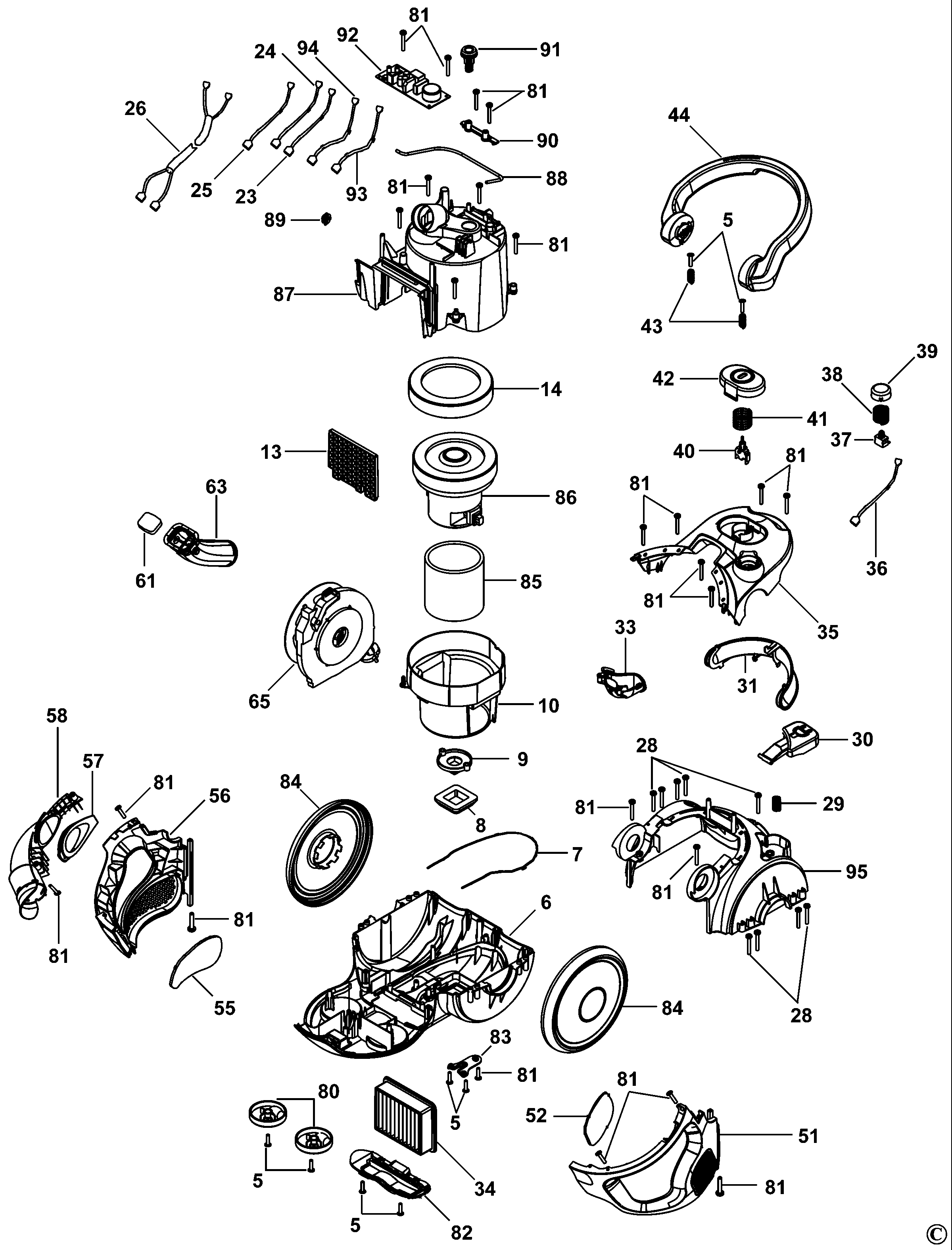

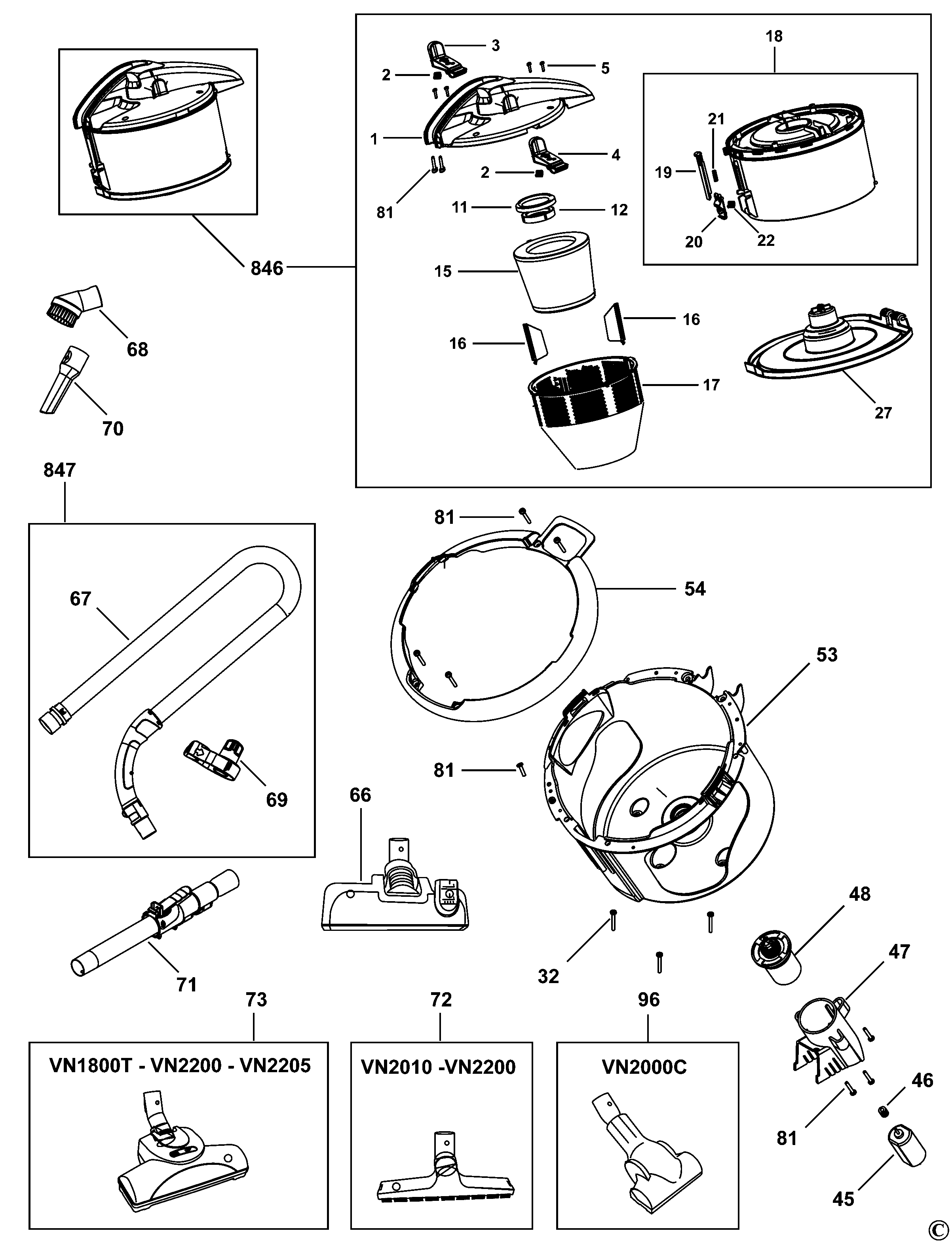

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 LID SA (90508560) 1788 RON
2 1 2 SPRING (90505463) 558 RON
3 1 1 LEVER RELEASE (490791-00) 1229 RON
4 1 1 LEVER RELEASE (490773-00) 190 RON
5 1 14 SCREW (90509747) 558 RON
6 1 1 HOUSING LOWER (90504912-01) 9282 RON
7 1 1 GASKET (90508362) 781 RON
8 1 1 MOUNT (583404-01) 1452 RON
9 1 1 MOUNT (90508549) 1229 RON
10 1 1 HOUSING MOTOR (490213-00) 2347 RON
11 1 1 SEAL (90504881) 781 RON
12 1 1 CLIP (90504882) 558 RON
13 1 1 GUARD (90504868) 781 RON
14 1 1 SUPPORT (90508550) 190 RON
15 1 1 FILTER SA (90505168) 15993 RON
16 1 2 90504887 - Indisponibil
16 1 2 000000-07 - Indisponibil
17 1 1 488086-00 - Indisponibil
17 1 1 000000-07 - Indisponibil
18 1 1 90505164 - Indisponibil
18 1 1 000000-07 - Indisponibil
19 1 1 RELEASE (488711-00) 781 RON
20 1 1 LEVER RELEASE (90504900) 558 RON
21 1 1 SPRING (90505257) 558 RON
22 1 1 SPRING (90505258) 558 RON
23 1 1 LEAD BLACK (90508322) 781 RON
24 1 1 LEAD YELLOW (90507678) 893 RON
25 1 1 LEAD BROWN (90507670) 893 RON
26 1 1 LEADWIRE (90508316) 2347 RON
27 1 1 BASE SA (90505167) 4472 RON
28 1 9 SCREW (90507465) 558 RON
29 1 1 SPRING (90505458) 558 RON
30 1 1 ACTUATOR (90504781) 893 RON
31 1 1 INSERT (490476-00) 1117 RON
32 1 3 SCREW (90509749) 558 RON
33 1 1 CABLE GUIDE (90509609) 1452 RON
34 1 1 FILTER VN2000/VN2200 (488227-00) 5031 RON
35 1 1 HOUSING UPPER (90504858-01) 3018 RON
36 1 1 LEAD WHITE (90508323) 893 RON
37 1 1 SWITCH (90509249) 2347 RON
38 1 1 SPRING (90505462) 558 RON
39 1 1 HOUSING (90504859) 558 RON
40 1 1 SWITCH (90507483) 2795 RON
41 1 1 SPRING (90505461) 558 RON
42 1 1 BUTTON (488775-00) 893 RON
43 1 2 SPRING (90509193) 558 RON
44 1 1 HANDLE (90504856) 2795 RON
45 1 1 MOTOR (90516288) 15993 RON
46 1 1 PINION MOTOR (143139-00) 558 RON
47 1 1 MOTOR COVER (90504872) 2347 RON
48 1 1 MOTOR & PINION (90504869) 22144 RON
51 1 1 SIDE LH (490753-01) 4137 RON
52 1 1 FOAM (90508201) 781 RON
53 1 1 BEZEL (488803-00) 5591 RON
54 1 1 BEZEL (90504880) 3018 RON
54 1 1 BEZEL (90504861) 3018 RON
55 1 1 FOAM (90508284) 781 RON
56 1 1 SIDE RH (490754-01) 5591 RON
57 1 1 SEAL (90504877) 1788 RON
58 1 1 INLET (488776-00) 1229 RON
61 1 1 FILTER (90507668) 558 RON
63 1 1 TUBE (90505158-01) 2347 RON
65 1 1 CABLE SA (90507055) 23598 RON
66 1 1 TOOL FLOOR (487854-00) 11519 RON
66 1 1 TOOL FLOOR (90520469) 10512 RON
67 1 1 SERVICE KIT (90542845) 14315 RON
67 1 1 HOSE SA (90509859) 12861 RON
67 1 1 HOSE SA (90521097) 12861 RON
68 1 1 BRUSH SA (90508363) 190 RON
69 1 1 TOOL POST (90504910) 190 RON
69 1 1 90521416 - Indisponibil
70 1 1 TOOL CREVICE (90504908) 781 RON
71 1 1 TUBE SA (90507578) 17335 RON
71 1 1 90516112 - Indisponibil
80 1 1 WHEEL SET (90505075) 9282 RON
81 1 33 SCREW (90509736) 558 RON
82 1 1 COVER (90504779) 781 RON
83 1 1 COVER (90504778-01) 105 RON
84 1 2 WHEEL REAR (90504774) 190 RON
85 1 1 000000-04 - Indisponibil
86 1 1 MOTOR SA (90505752) 29862 RON
87 1 1 HOUSING MOTOR (90508545) 40599 RON
88 1 1 LINK (90504867) 1117 RON
89 1 1 RUBBER PAD (90508315) 558 RON
90 1 1 CLAMP (90505984) 781 RON
91 1 1 VALVE (90508365) 781 RON
92 1 1 PCB SA (90505160) 1891 RON
92 1 1 PCB SA (90538511) 14315 RON
93 1 1 LEAD RED (90508314) 893 RON
94 1 1 LEAD BLUE (90507671) 1117 RON
95 1 1 HOUSING REAR (90505156-01) 10512 RON
96 1 1 TURBO BRUSH (90516831) 23598 RON
846 1 1 SERVICE KIT (90508558) 32770 RON
847 1 1 SERVICE KIT (90542845) 14315 RON
