Top » Piese de schimb » PIESE BLACK & DECKER » VB1850 Type 2

ASPIRATOR BLACK+DECKER VB1850 Type 2
[VB1850 Type 2]
ASPIRATOR BLACK+DECKER VB1850 Type 2
Click pentru a mari
Imagini suplimentare
ASPIRATOR BLACK+DECKER VB1850 Type 2
Click pentru a mari
ASPIRATOR BLACK+DECKER VB1850 Type 2
Click pentru a mari

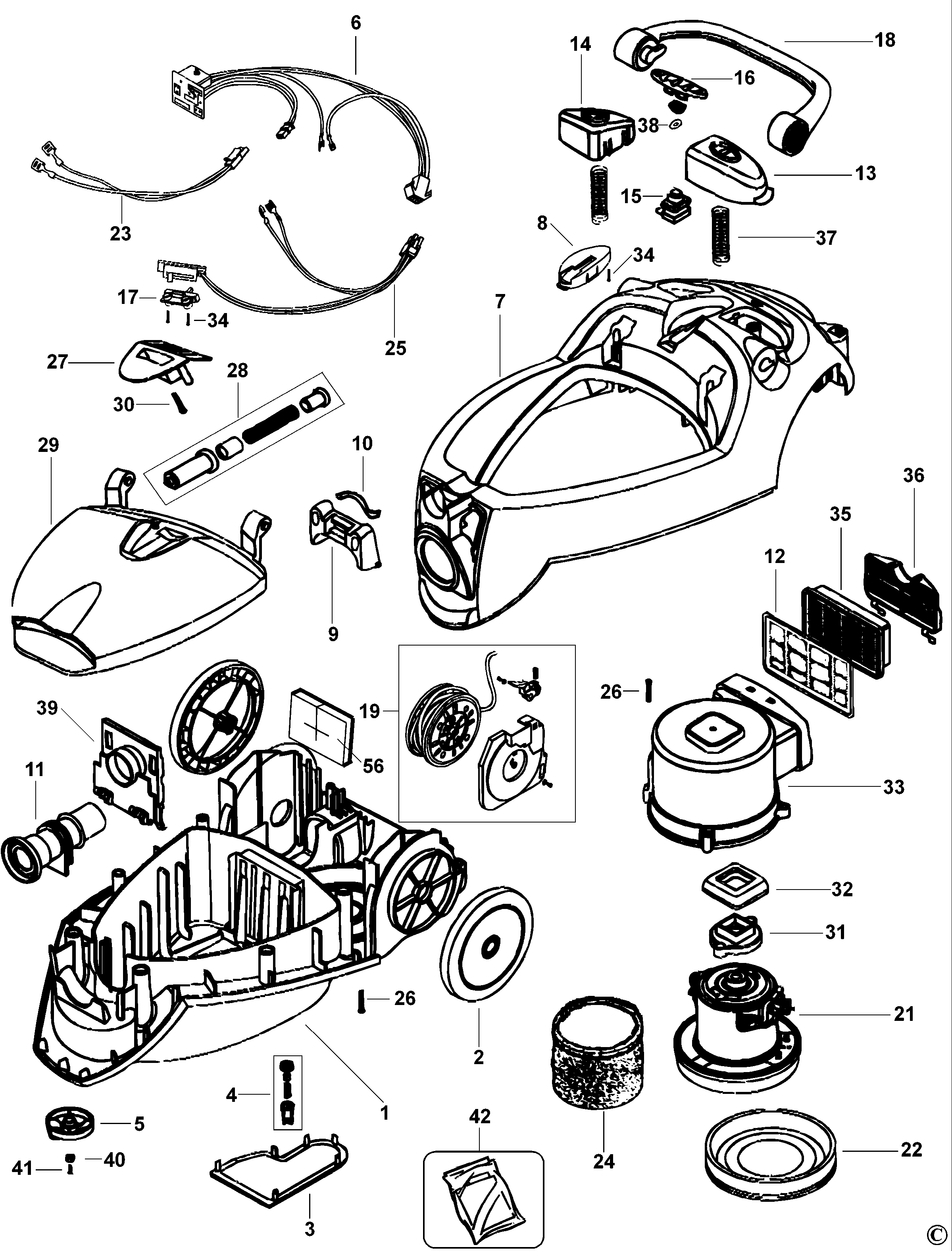

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING LOWER (585544-00) 5591 RON
2 1 2 WHEEL REAR (583112-00) 190 RON
3 1 1 COVER (585635-00) 558 RON
4 1 1 VALVE (583122-00) 781 RON
5 1 1 WHEEL SA (583113-00) 781 RON
6 1 1 585549-02 - Indisponibil
7 1 1 HOUSING UPPER (585546-03) 7940 RON
8 1 1 CLIP (585462-00) 558 RON
9 1 1 LATCH (583405-00) 558 RON
10 1 1 SPRING (584644-00) 558 RON
11 1 1 TUBE (584986-00) 781 RON
13 1 1 ACTUATOR (583135-00) 558 RON
14 1 1 ACTUATOR (583132-00) 558 RON
15 1 1 SWITCH (583137-00) 190 RON
16 1 1 SLIDER (583140-00) 558 RON
17 1 1 RETAINER (586504-00) 558 RON
18 1 1 584651-00 - Indisponibil
19 1 1 583109-01 - Indisponibil
21 1 1 MOTOR SA (585538-01) 28296 RON
22 1 1 MOUNT (583120-00) 781 RON
23 1 1 LEAD SA (583125-00) 105 RON
24 1 1 583146-00 - Indisponibil
25 1 1 LEAD SA (583143-00) 3018 RON
26 1 12 SCREW (585535-00) 558 RON
27 1 1 INSERT (584982-03) 558 RON
28 1 1 INDICATOR (583165-00) 558 RON
29 1 1 LID SA (5106276-04) 2795 RON
30 1 2 SCREW (585580-00) 558 RON
31 1 1 MOUNT (583404-01) 1452 RON
32 1 1 SUPPORT (583402-00) 781 RON
33 1 1 COVER HOUSING (583123-00) 1452 RON
34 1 3 SCREW (585535-00) 558 RON
35 1 1 FILTER (585442-00) 4137 RON
36 1 1 GRILLE (583138-00) 781 RON
37 1 2 SPRING (583136-00) 558 RON
38 1 1 Washer Lock (588187-00) 558 RON
39 1 1 HOLDER DUSTBAG (588324-00) 781 RON
40 1 1 RETAINER (585622-00) 558 RON
41 1 1 SCREW (585580-00) 558 RON
42 1 1 DUSTBAG (583164-00) 1452 RON
46 1 1 584646-06 - Indisponibil
47 1 1 HOLDER (585244-00) 558 RON
48 1 1 TOOL CREVICE (585131-00) 558 RON
49 1 1 BRUSH SA (5106265-00) 1117 RON
50 1 1 HEAD SA (586740-00) 4472 RON
52 1 1 VACUUM TUBE SA (583162-00) 15993 RON
53 1 1 HOSE SA (583154-06) 12861 RON
54 1 1 BRAND LABEL (585944-03) 1229 RON
55 1 2 SCREW (585580-00) 558 RON
56 1 1 FILTER (5106228-00) 1117 RON
57 1 1 HEAD SA (5106262-04) 7940 RON
