Top » Piese de schimb » PIESE BLACK & DECKER » REVSV18D1 Type 1

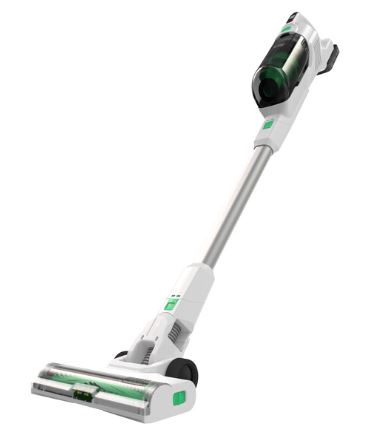

ASPIRATOR BLACK+DECKER REVSV18D1 Type 1
[REVSV18D1 Type 1]
ASPIRATOR BLACK+DECKER REVSV18D1 Type 1
Click pentru a mari
Imagini suplimentare
ASPIRATOR BLACK+DECKER REVSV18D1 Type 1
Click pentru a mari
ASPIRATOR BLACK+DECKER REVSV18D1 Type 1
Click pentru a mari
ASPIRATOR BLACK+DECKER REVSV18D1 Type 1
Click pentru a mari
ASPIRATOR BLACK+DECKER REVSV18D1 Type 1
Click pentru a mari
ASPIRATOR BLACK+DECKER REVSV18D1 Type 1
Click pentru a mari

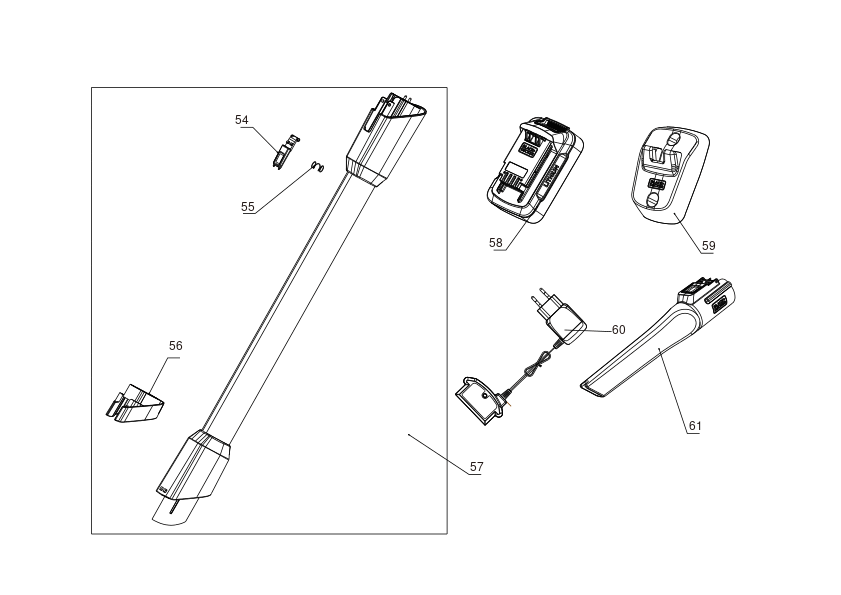

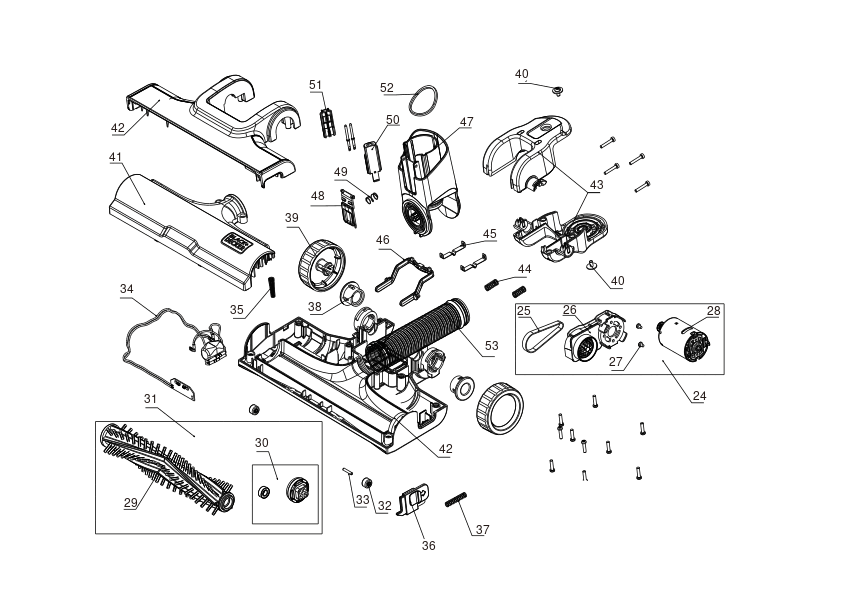

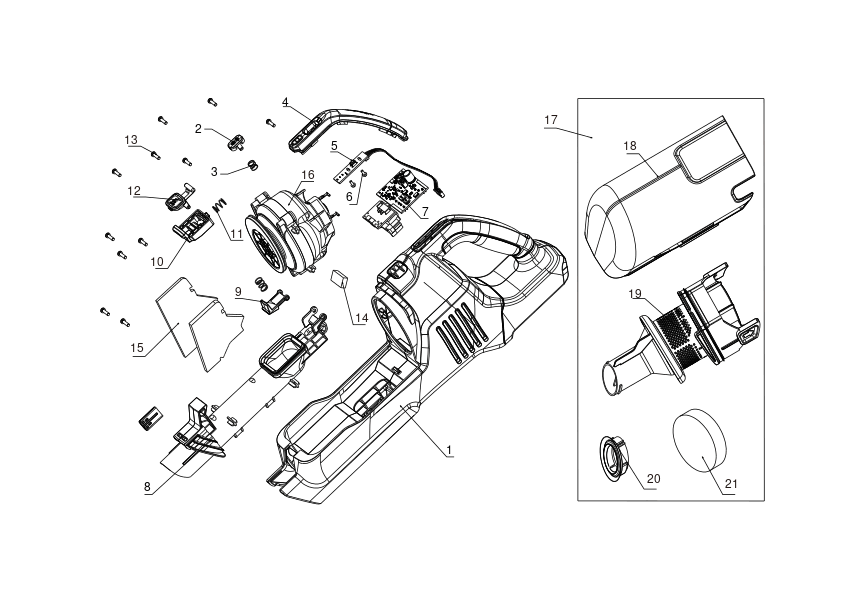

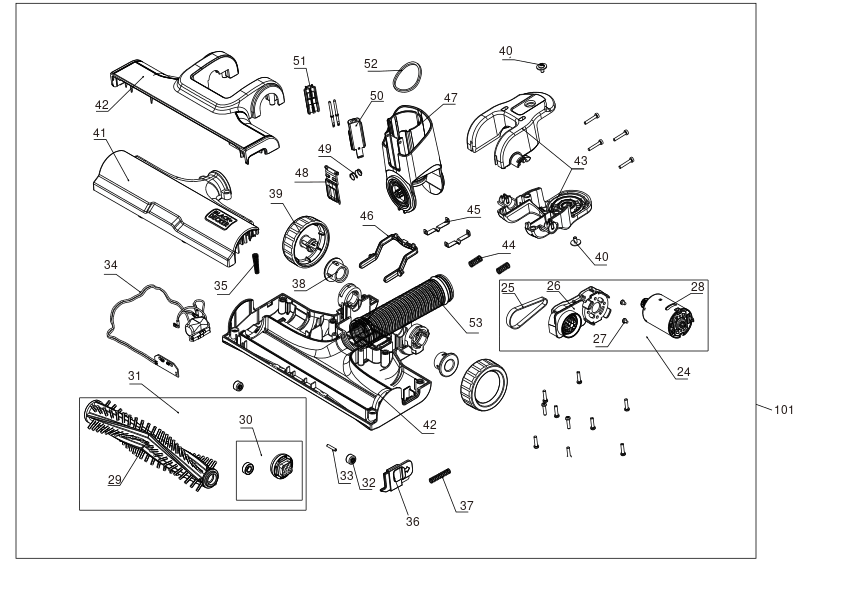

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 CLAMSHELL SA (NA338686) 21676 RON
2 1 1 BUTTON (N830667) 588 RON
3 1 1 SPRING (N492262) 588 RON
4 1 1 HANDLE (NA356196) 2182 RON
5 1 1 PCB (N850704) 2796 RON
6 1 2 SCREW (419799-05) 558 RON
7 1 1 PCB (N881708) 16689 RON
8 1 1 TUBE (N895614) 3954 RON
9 1 1 BUTTON (NA379426) 588 RON
10 1 1 LATCH (NA379576) 668 RON
11 1 2 SPRING (90529369) 588 RON
12 1 1 BUTTON (NA379369) 588 RON
13 1 12 SCREW (143062-02) 558 RON
14 1 1 FOAM (N687271) 588 RON
15 1 1 FOAM (NA030797) 588 RON
16 1 1 MOTOR & FAN (NA543685) 16689 RON
17 1 1 BOWL (NA543686) 21676 RON
18 1 1 BOWL (NA360582) 12361 RON
19 1 1 PRE-FILTER (NA543687) 6688 RON
20 1 1 FILTER (N837363) 944 RON
21 1 1 SEAL (N875051) 1318 RON
24 1 1 MOTOR SA (NA525907) 15469 RON
25 1 1 BELT (N887094) 1772 RON
26 1 1 MOUNT SA (NA525909) 2796 RON
27 1 2 SCREW (90610860) 588 RON
28 1 1 MOTOR SA (NA127108) 15469 RON
29 1 1 ROLLER (NA379407) 5370 RON
30 1 1 END CAP SA (NA525911) 1933 RON
31 1 1 ROLLER SA (NA543688) 6688 RON
32 1 2 WHEEL (90605480) 588 RON
33 1 2 DOWEL (90608269) 588 RON
34 1 1 LED (NA379409) 5370 RON
35 1 1 SPRING (N854962) 588 RON
36 1 1 BUTTON (NA379400) 588 RON
37 1 1 SPRING (N867299) 588 RON
38 1 1 BUSHING (N640896) 588 RON
39 1 1 WHEEL (NA379399) 1318 RON
40 1 2 SCREW (90608241) 588 RON
41 1 1 COVER (NA338683) 3954 RON
42 1 1 HOUSING SA (NA338687) 12361 RON
43 1 1 PIVOT SA (N882089) 114 RON
44 1 2 SPRING (90500391) 588 RON
45 1 2 SPRING (N495718) 944 RON
46 1 1 ACTUATOR (N505539) 588 RON
47 1 1 PIVOT (NA336780) 2796 RON
48 1 1 BUTTON (NA379398) 588 RON
49 1 1 SPRING (90627526) 588 RON
50 1 1 CONTACT (N579393) 588 RON
51 1 1 CONTACT (N632210) 588 RON
52 1 1 SEAL (N583166) 668 RON
53 1 1 INLET (N675154) 944 RON
54 1 1 BUTTON (NA378870) 588 RON
55 1 1 SPRING (90627526) 588 RON
56 1 1 COVER (NA353726) 944 RON
57 1 1 TUBE SA (NA333815) 21676 RON
58 1 1 BATTERY (NA601218) 39318 RON
59 1 1 MOUNT (N837364) 2182 RON
60 1 1 CHARGER SA (N494099) 16689 RON
61 1 1 TOOL CREVICE (NA503545) 2182 RON
101 1 1 HEAD SA (NA724395) 52855 RON
