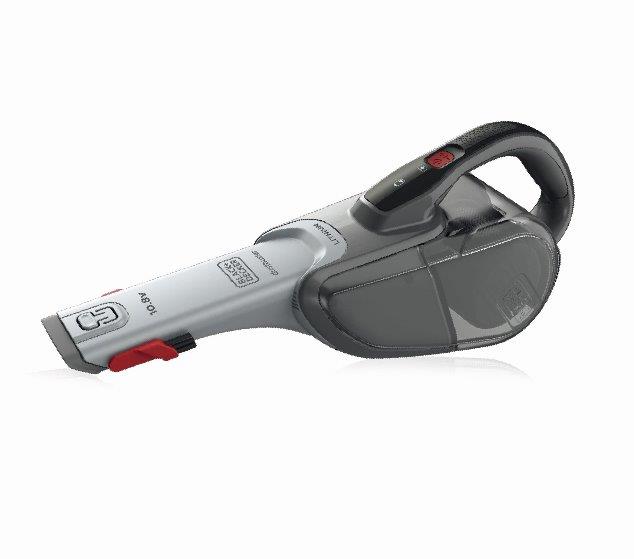

ASPIRATOR BLACK+DECKER BDDV31 Type H1
[BDDV31 Type H1]
ASPIRATOR BLACK+DECKER BDDV31 Type H1
Click pentru a mari
Imagini suplimentare
ASPIRATOR BLACK+DECKER BDDV31 Type H1
Click pentru a mari
ASPIRATOR BLACK+DECKER BDDV31 Type H1
Click pentru a mari

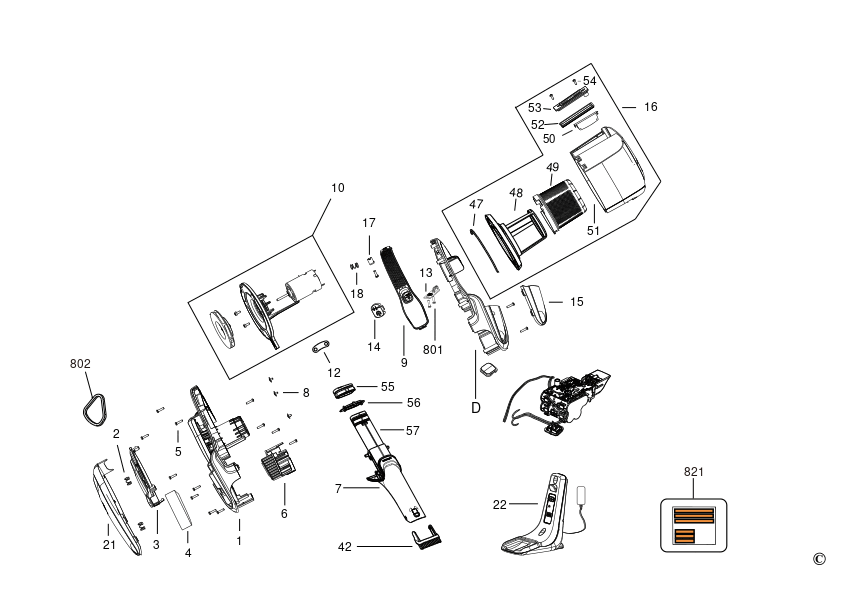

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HOUSING SA (90621185-04) 5370 RON
2 1 2 SPRING (90627528) 588 RON
3 1 1 LEVER RELEASE (90606955-02) 2182 RON
4 1 1 EXHAUST (90605950) 668 RON
5 1 14 SCREW (90571477-01) 588 RON
6 1 1 VENT (90605947-04) 944 RON
8 1 3 SCREW (90627524) 588 RON
9 1 1 HANDLE (90632373-02) 1318 RON
10 1 1 MOTOR & FAN (N924331) 11337 RON
12 1 1 RETAINER (90626425) 588 RON
13 1 1 PCB (90620562) 2182 RON
14 1 1 ACTUATOR (90618211-02) 588 RON
15 1 1 COVER (90620997) 668 RON
16 1 1 BOWL (N924713) 3954 RON
17 1 1 RELEASE (90624626) 588 RON
18 1 1 SPRING (90627526) 588 RON
21 1 1 COVER (90614011) 944 RON
22 1 1 CHARGER SA (N925283) 12361 RON
42 1 1 BRUSH SA (90627689) 1772 RON
47 1 1 HANDLE (90621658) 588 RON
48 1 1 FILTER SA (N566706) 6688 RON
49 1 1 PRE-FILTER (90606057) 114 RON
50 1 1 FLAP (90615870) 588 RON
51 1 1 BOWL (90609645) 2796 RON
52 1 1 SEAL (90624959) 588 RON
53 1 1 PLATE (90617324-01) 588 RON
54 1 2 SCREW (90620666) 588 RON
55 1 1 SEAL (90621033) 114 RON
56 1 1 FRAME (90621034) 588 RON
57 1 1 TOOL CREVICE (90614057-02) 1630 RON
801 1 2 SCREW (419799-05) 558 RON
802 1 1 000000-00 - Indisponibil
