Top » Piese de schimb » PIESE BLACK & DECKER » BD365-30 Type 1

65MM CIRC.SAW - GERMANY BLACK+DECKER BD365-30 Type 1
[BD365-30 Type 1]
65MM CIRC.SAW - GERMANY BLACK+DECKER BD365-30 Type 1
Click pentru a mari
Imagini suplimentare
65MM CIRC.SAW - GERMANY BLACK+DECKER BD365-30 Type 1
Click pentru a mari

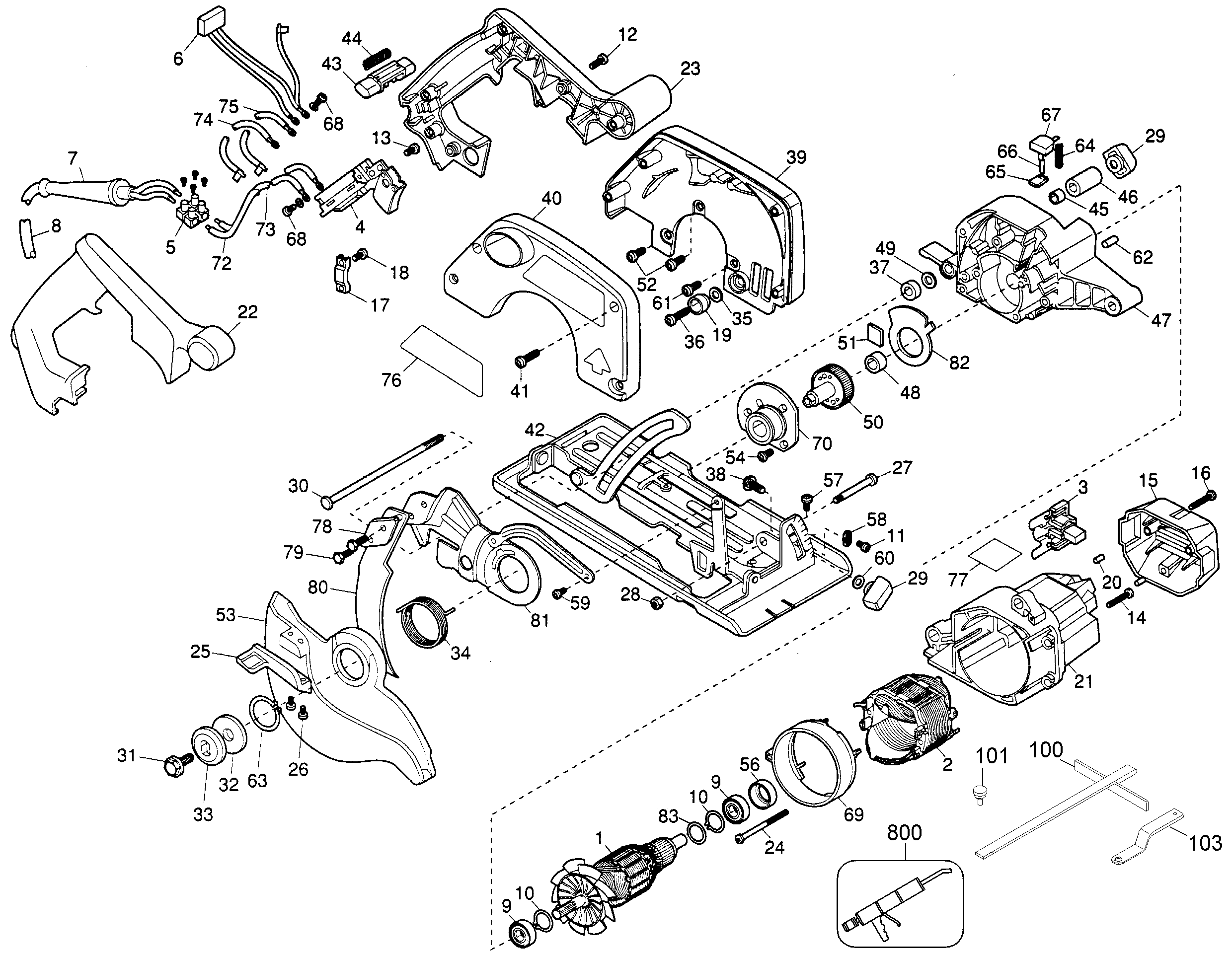

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 000000-00 - Indisponibil
2 1 1 144795-01 - Indisponibil
4 1 1 SPRING (93314-00) 893 RON
4 1 1 429977-00 - Indisponibil
5 1 1 BLOCK TERMINAL (320078-00) 1452 RON
6 1 1 CAPACITOR (148679-02) 4472 RON
7 1 1 N542553 - Indisponibil
7 1 1 PROTECTOR CORD (330005-01) 105 RON
7 1 1 CORD PROTECTOR (N918736) 668 RON
9 1 2 BEARING BALL (330003-09) 2795 RON
9 1 2 Ball Brg (605040-20) 2182 RON
10 1 2 RING RET.EXT. (400677-00) 558 RON
11 1 1 SCREW.TEMP (330045-04) 558 RON
11 1 1 SCREW METAL THD FORM M4X8 T20 (330045-44) 558 RON
12 1 7 SCREW (330019-14) 558 RON
13 1 1 SWITCH (145331-00) 12861 RON
13 1 1 Screw M3.5 X9.5 (330019-01) 558 RON
14 1 4 SCREW TEMP (330045-19) 558 RON
15 1 1 145361-00 - Indisponibil
16 1 2 147178-00 - Indisponibil
16 1 1 SCREW SPECIAL (145345-00) 781 RON
17 1 1 CORD CLAMP (003618-00) 558 RON
17 1 1 3618-00 - Indisponibil
18 1 2 SCREW.TEMP (148461-00) 558 RON
19 1 1 BUMPER (145375-02) 558 RON
20 1 1 145360-00 - Indisponibil
20 1 2 PIN (87205-00) 558 RON
24 1 2 147186-00 - Indisponibil
25 1 1 147052-00 - Indisponibil
26 1 2 SCREW.TEMP (330045-05) 558 RON
27 1 1 SCREW (396631-00) 558 RON
28 1 1 LOCK NUT (148641-00) 558 RON
29 1 2 SA KNOB (395889-00) 781 RON
31 1 1 SCREW SPECIAL (145344-00) 781 RON
33 1 2 KNOB (148275-00) 781 RON
33 1 1 WASHER OUTER CLAMP (145446-00) 105 RON
34 1 1 N401777 - Indisponibil
34 1 1 SPRING (605015-00) 1452 RON
35 1 1 SPACER (150246-00) 558 RON
36 1 1 98096-19 - Indisponibil
36 1 1 098096-19 - Indisponibil
37 1 1 SPACER (148455-00) 558 RON
38 1 1 SCREW.SPECIAL (98128-20) 558 RON
38 1 1 CARRIAGE BOLT (N022876) 558 RON
39 1 1 SCREW M3X4 (148757-00) 558 RON
41 1 4 SCREW METAL THD FRM M4X16 T20 (330045-06) 558 RON
44 1 1 SPRING (21286-00) 558 RON
45 1 1 SPACER (150462-00) 558 RON
47 1 1 145382-03 - Indisponibil
47 1 1 GREASE (283484-00) 32770 RON
48 1 1 145381-00 - Indisponibil
49 1 1 149994-00 - Indisponibil
49 1 1 324438-07 - Indisponibil
51 1 1 SEAL (147194-00) 2347 RON
52 1 2 SCREW (330045-23) 781 RON
54 1 3 98102-13 - Indisponibil
54 1 3 SCREW.TEMP (098102-13) 558 RON
55 1 1 NUT (330015-04) 558 RON
56 1 1 147088-00 - Indisponibil
57 1 1 SCREW.TEMP (098004-36) 558 RON
57 1 1 98004-36 - Indisponibil
58 1 1 POINTER (145341-00) 558 RON
60 1 1 WASHER PLAIN STL 6 X 12 X 1 . (330016-02) 558 RON
61 1 1 SCREW.TEMP (330045-25) 558 RON
62 1 1 RUBBER PLUG (145312-00) 558 RON
63 1 1 RING (541351-00) 558 RON
63 1 1 RETAINER DW007K (388496-00) 893 RON
64 1 1 761995-00 - Indisponibil
64 1 1 SPRING (150466-00) 558 RON
65 1 1 WIPER (145351-00) 558 RON
66 1 1 LEVER (145349-00) 1117 RON
67 1 1 BUTTON (145350-00) 558 RON
68 1 4 SCREW TERMINAL (791707-00) 558 RON
68 1 4 SCREW MACHINE PAN HD (384127-01) 558 RON
69 1 1 BAFFLE FAN (145301-00) 1229 RON
72 1 1 149004-00 - Indisponibil
73 1 1 LEAD SA (149005-00) 781 RON
75 1 1 LEAD SA (145374-00) 893 RON
78 1 1 148459-00 - Indisponibil
79 1 2 SCREW.TEMP (98113-12) 558 RON
81 1 1 150988-00 - Indisponibil
100 1 1 147071-05 - Indisponibil
800 1 1 GREASE (283484-01) 62298 RON
800 1 1 GREASE (761995-01) 23598 RON
