36V MOWER BLACK+DECKER GRC4700 Type 1
[GRC4700 Type 1]
36V MOWER BLACK+DECKER GRC4700 Type 1
Click pentru a mari
Imagini suplimentare
36V MOWER BLACK+DECKER GRC4700 Type 1
Click pentru a mari

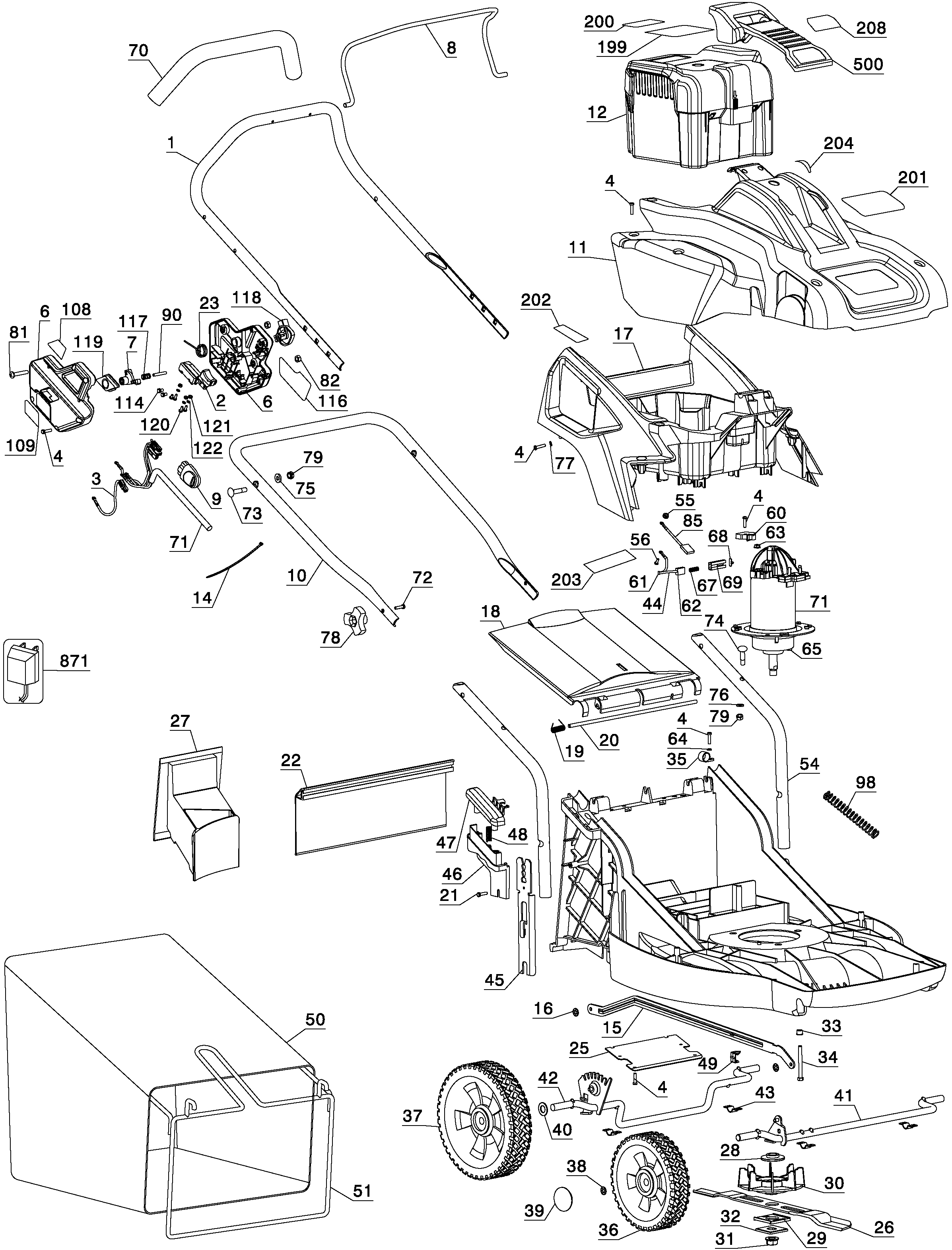

LISTA DE COMPONENTE:
Numar Versiune Buc. in schema Denumire Pret/buc
(Tva inclus)		 Cumpara
1 1 1 HANDLE UPPER (90540794) 14315 RON
2 1 1 SWITCH (638313-00) 7940 RON
3 1 1 LEAD RED (90545166) 2347 RON
4 1 34 SCREW PLSTC THD FORM M4X19 T20 (330019-13) 558 RON
6 1 1 HOUSING PAIR (90541564-01) 4472 RON
6 1 1 90566373SV - Indisponibil
6 1 1 HOUSING SA (90566373) 17335 RON
7 1 1 CRANK (90541597) 781 RON
8 1 1 ACTUATOR (90540793) 5591 RON
9 1 1 SAFETY KEY (90530033) 17335 RON
10 1 1 HANDLE (242593-01) 11519 RON
11 1 1 COVER-TOP (90546534) 15993 RON
12 1 1 BATTERY PACK (90546393-01) 257473 RON
12 1 1 90546393-01SV - Indisponibil
14 1 2 TIE (239715-06) 558 RON
15 1 1 ROD (242357-01) 3018 RON
16 1 2 RETAINER (241658-03) 558 RON
17 1 1 SHROUD (90546533) 14315 RON
18 1 1 GRASSFLAP (90511856) 6821 RON
19 1 1 SPRING (242380-00) 190 RON
20 1 1 ROD (242064-01) 2124 RON
21 1 1 SCREW (072954-00) 558 RON
21 1 1 72954-00 - Indisponibil
22 1 1 FLAP (241524-02) 6821 RON
23 1 1 SPRING TORSION (90541476) 781 RON
25 1 1 BOTTOM PLATE (242379-00) 2347 RON
26 1 1 BLADE METAL (90541433-01) 10512 RON
26 1 1 BLADE METAL (90541433) 12861 RON
27 1 1 PLATE (242354-01) 9282 RON
28 1 1 SPACER (680812-00) 105 RON
29 1 1 WASHER INSULATING (90541434) 781 RON
30 1 1 FAN (90547431) 3466 RON
31 1 1 NUT (239487-00) 781 RON
31 1 1 NUT (90561895) 781 RON
32 1 1 SPACER (092715-00) 781 RON
32 1 1 92715-00 - Indisponibil
33 1 3 SPACER (241594-02) 781 RON
34 1 3 SCREW (243679-00) 558 RON
35 1 1 CLAMP (062443-02) 558 RON
35 1 1 CLAMP (062443-02) 558 RON
36 1 2 WHEEL FRONT (242600-01) 5031 RON
37 1 2 WHEEL REAR (242617-02) 5591 RON
38 1 4 RETAINER (624374-00) 558 RON
39 1 1 CAP (239540-06) 3466 RON
40 1 4 WASHER (242488-00) 558 RON
41 1 1 AXLE FRONT (242364-04) 5591 RON
42 1 1 AXLE REAR (242365-03) 10512 RON
43 1 4 LIAISON (242363-00) 558 RON
44 1 1 BRUSH LEAD SA (90545179) 3466 RON
45 1 1 LEVER (242362-01) 3466 RON
46 1 1 HANDLE (242350-02) 3466 RON
47 1 1 SUPPORT (242351-02) 3466 RON
48 1 1 SPRING (241656-00) 558 RON
49 1 1 INDICATOR (242353-02) 2795 RON
50 1 1 GRASSBAG (242501-05) 11519 RON
50 1 1 GRASSBAG (242501-06) 10512 RON
51 1 1 FRAME (242500-02) 15993 RON
54 1 2 LOWER HANDLE (242887-01) 4472 RON
54 1 2 90564274 - Indisponibil
55 1 1 LOCK NUT (241693-00) 558 RON
56 1 1 SCREW (152801-00) 558 RON
60 1 2 BRUSH CAP (240808-01) 781 RON
61 1 2 33314-00 - Indisponibil
62 1 2 BRUSH (241648-01) 4472 RON
63 1 2 NUT (243842-01) 558 RON
64 1 2 WASHER (099361-10) 558 RON
64 1 2 99361-10 - Indisponibil
65 1 2 SCREW (242694-00) 781 RON
67 1 2 BRUSH SPRING (242207-00) 558 RON
68 1 2 TERMINAL (070162-00) 558 RON
68 1 2 TERMINAL (070162-00) 558 RON
69 1 2 BRUSH BOX (242274-00) 893 RON
70 1 1 GRIP (90541596) 4137 RON
71 1 1 MOTOR SA (90589079) 112630 RON
71 1 1 MOTOR SA (90548259) 86681 RON
72 1 2 SCREW (90541892) 893 RON
73 1 2 BOLT (90545791) 781 RON
74 1 2 BOLT (90541771) 781 RON
74 1 2 90548863 - Indisponibil
75 1 2 WASHER PLAIN. STEEL 8*16*1.6 THICK (330016-03) 558 RON
76 1 2 WASHER (242359-00) 558 RON
77 1 2 WASHER SPECIAL (605111-00) 558 RON
78 1 1 KNOB SA (90542737) 11519 RON
79 1 2 NUT (90541772) 558 RON
81 1 2 SCREW (90541817) 781 RON
82 1 2 NUT (091516-01) 781 RON
82 1 2 NUT (091516-01) 781 RON
85 1 1 CONNECTOR (90546217) 9282 RON
90 1 1 PIN (90541437) 781 RON
98 1 1 SPRING (242601-00) 3466 RON
108 1 1 LABEL (90541668) 781 RON
109 1 1 LABEL (90541818) 781 RON
114 1 2 SCREW DW007K (330019-40) 558 RON
116 1 1 WARNING LABEL (90541669) 781 RON
117 1 1 SPRING (90541477) 781 RON
118 1 1 CRANK (90541599) 781 RON
119 1 1 BUTTON (90541598) 781 RON
120 1 3 SCREW (90541773) 558 RON
121 1 3 WASHER (90541774) 558 RON
122 1 1 Washer Lock (90541775) 558 RON
199 1 1 LABEL (90552119) 5591 RON
200 1 1 LABEL (90549785) 781 RON
201 1 1 IDENTITY LABEL (90545591) 1452 RON
202 1 1 LABEL (90549781) 893 RON
203 1 1 NAMEPLATE (90549786) 5591 RON
204 1 1 LABEL (90549782) 105 RON
208 1 1 LABEL (90552120) 105 RON
500 1 1 90546538-01SV - Indisponibil
500 1 1 CLAMP SA (90546538-01) 6821 RON
871 1 1 CHARGER (EURO) (90552113) 32770 RON
